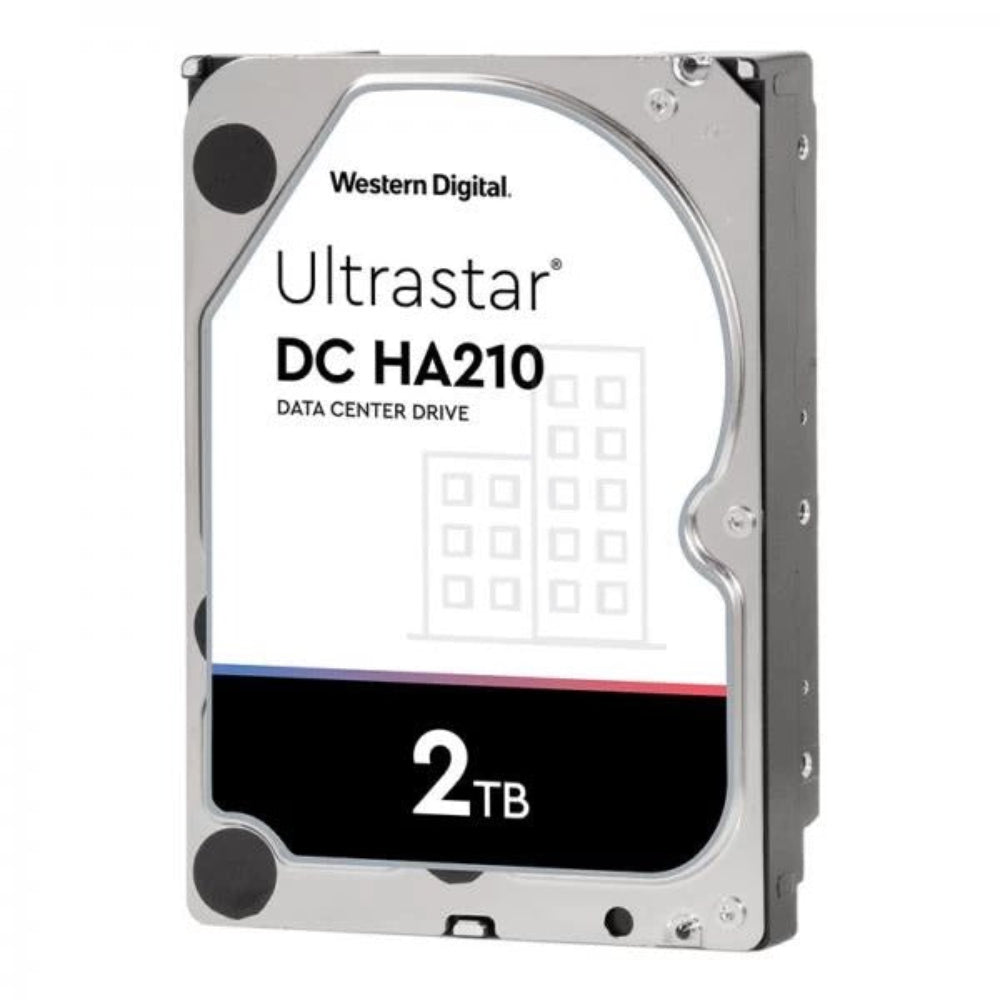

Features of WESTERN DIGITAL Ultrastar DC HA210 2TB HDD

Highlights

• Up to 2TB capacity in a standard 3.5-inch form factor

• Enhanced RAFF™ anti-vibration technology for robust performance in multi-drive environments

• Reliable, field-proven design

• SATA 6Gb/s with 512-byte (512n) supportd legacy enterprise applications

• 2M hours MTBF2 rating & 5-year limited warranty

Applications/Environments

• RAID arrays

• Massive scale-out (MSO) data centers

• Data warehousing & mining

• Cloud storage

• Enterprise NAS

• Disk-to-disk backup & archiving

• Legacy mainstream enterprise capacity applications that require 512n block size

Value to the Data Center with Performance-optimized Capacity for High-intensity Applications

Data centers that need fast access to data in Tier 2 environments need look no further. The WD  Ultrastar® DC HA210* HDD, a member of our HA200 series product line, delivers fast data access in capacity-optimized, enterprise-class storage systems. Enhanced RAFF™ technology in the DC HA210 includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration disturbances in real time—especially helpful in multi-drive arrays and rack-mounted systems maintaining high read/write performance. Designed to handle workloads up to 550TB per year, the Ultrastar DC HA210 delivers up to 2TB of affordable storage capacity for high-intensity applications in enterprise-class environments.

Maximize Your Data Center Application Investment with Proven Storage Technology

Data centers face growing pressures to store more with fl at-to-shrinking budgets.
Keeping systems operational for as long as possible to maximize investments can be an effective part of the strategy, but supporting those legacy applications becomes even more challenging as drive technologies move to next generation formats and interfaces. The Ultrastar DC HA210 has a SATA 6Gb/s interface and native 512-byte (512n) sector size to provide consistent, high performance and compatibility with legacy data center applications. Dual-stage actuator technology provides a head positioning system that improves positional accuracy over the data tracks, enabling data to be written to and read from the drive more reliably. Trust Western Digital to deliver storage options that allow data centers to get the most from their hardware investment.

Designed with Data Center Requirements in Mind

Multi-axis shock sensor technology automatically detects the smallest shock events and compensates to protect stored data on the Ultrastar DC HA210. RAID-specifi c, timelimited error recovery reduces drive fallout caused by extended hard drive error-recovery processes. Ramp load/unload technology keeps the recording heads away from the disk media during idle time and power down, ensuring signifi cantly less wear to the recording heads and media, and provides better drive protection in transit. Through the use of dynamic fl y-height technology, each read-write head’s fl y-height is adjusted in real time for optimum reliability and performance. With a 2M hour MTBF rating and a 5-year warranty, rely on Ultrastar DC HA210 to deliver capacity, performance and reliability for more value to your data center

Western Digital Quality and Service

Ultrastar DC HA210 extends Western Digital’s product offerings for capacity-enterprise environments. The proven drive design enables high reliability and availability to customer data. Ultrastar quality, performance and world class technical support and service provides customers with a lower total cost of ownership over previous generations. Western Digital data center drives are backed by an array of technical support and services, which may include customer and integration assistance. Western Digital offers a complete portfolio of product offerings designed to create environments for data to thrive.

Specification of WESTERN DIGITAL Ultrastar DC HA210 2TB HDD
