TPLink TL-WR940N 450Mbps Wireless N Router
- Rs. 1,399.00 Rs. 2,499.00
- Availability: In Stock
- SKU: TPLink TL-WR940N
Features of TPLink TL-WR940N 450Mbps Wireless N Router 450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming Three antennas increase the wireless robustness and stability Supports 3...
Features of TPLink TL-WR940N 450Mbps Wireless N Router

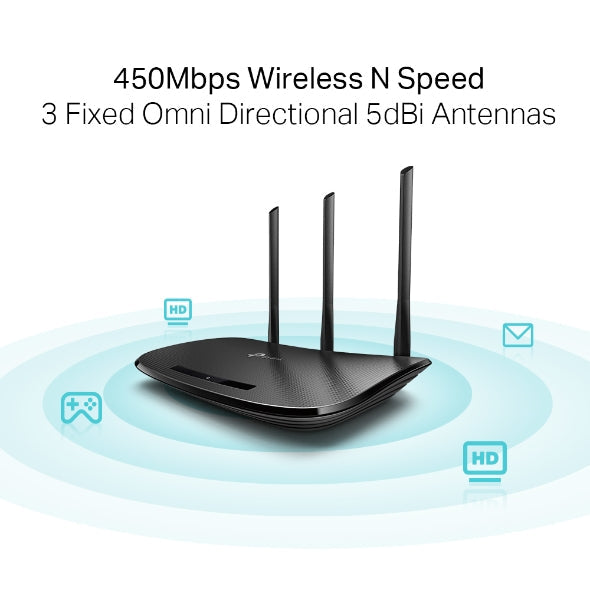

- 450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
- Three antennas increase the wireless robustness and stability
- Supports 3 modes: Router, Range Extender and Access Point modes
- Easy wireless security encryption at a push of WPS button
- Bandwidth Control: assigns your preferred devices with more bandwidth
Specifications of TPLink TL-WR940N 450Mbps Wireless N Router
| WIRELESS | |
| Standards |
Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
N450 2.4 GHz: 450 Mbps (802.11n) |
| WiFi Range |
2 Bedroom Houses3× Fixed Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Capacity | Legacy |
| Working Modes |
Router Mode Access Point Mode Range Extender Mode |
| HARDWARE | |
| Processor | Single-Core CPU |

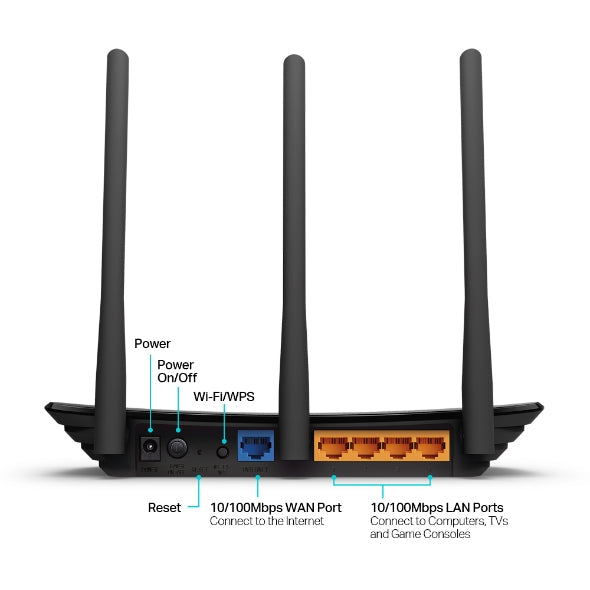

| Ethernet Ports |
1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons |
WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SECURITY | |
| WiFi Encryption |
WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 2.4 GHz Guest Network |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| Parental Controls |
URL Filtering Time Controls |
| WAN Types |
Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding |
VIrtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV |
IGMP Proxy IGMP Snooping |
| DHCP |
Address Reservation DHCP Client List Server |
| DDNS |
NO-IP Comex DynDNS |
| Management | Tether App |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
CE: <20dBm(2.4GHz) FCC: <30dBm |
| WiFi Reception Sensitivity |
450M: -68dBm@10% PER 216M: -70dBm@10% PER 130M: -78dBm@10% PER 54M: -74dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -93dBm@8% PER |
| PHYSICAL | |
| Dimensions (W×D×H) |
9.1 × 5.7 × 1.4 in (230 × 144 × 35mm) |
| Package Contents |
Wi-Fi Router TL-WR940N Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
