TPLink TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router

360˚

- 37%

Accessories

TPLink TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router

Rs. 3,999.00 Rs. 2,499.00

Availability : Out Of Stock

Brand : TPLink

SKU : TPLink TD-W9970

Tags : CATP_TPLink, CATQ_Networking Device, Router, TPLink, WIFI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of TPLink TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router

Versatile Connectivity –

With DSL and LAN/WAN ports, TPLink TD-W9970 is fully compatible with the VDSL2/ADSL2+/ADSL2/ADSL standards and also works with fiber/cable access.

Boosted Speeds –

Superfast VDSL broadband speeds of up to 100Mbps together with 300Mbps Wi-Fi.

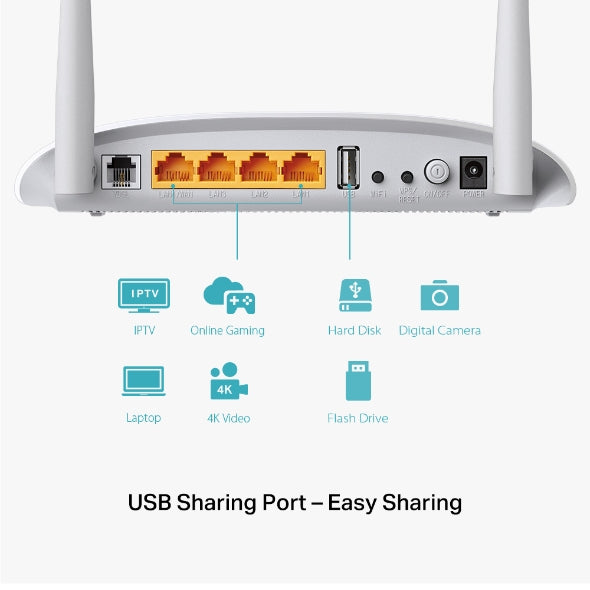

Easy Sharing –

Share files, media with your friends or family using the multi-functional USB port

Maximized Range –

Powerful external antennas provide far-reaching wireless coverage in every direction.

Effortless Management –

Set up in minutes and manage the network with the powerful intuitive web interface.

Specifications of TPLink TD-W9970 300Mbps Wireless N USB VDSL/ADSL Modem Router

HARDWARE FEATURES

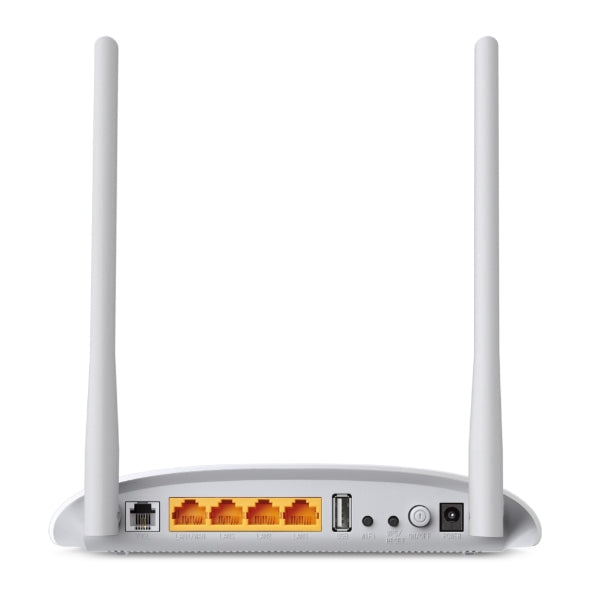

Interface	4 10/100Mbps RJ45 Ports 1 RJ11 Port 1 USB 2.0 Port
Button	1 Power On/Off Button 1 WPS/RESET Button 1 Wi-Fi On/Off Switch
External Power Supply	12VDC/1A
IEEE Standards	IEEE 802.3, 802.3u
VDSL2 Standards	ITU-T G.993.2 ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP）
ADSL Standards	Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1
ADSL2 Standards	ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards	ITU-T G.992.5
Dimensions ( W x D x H )	7.75.11.4 in. (195×130×36mm)
Antenna Type	Omni directional, Fixed
Antenna Gain	2 x 5dBi
WIRELESS FEATURES
Wireless Standards	IEEE 802.11b, 802.11g, 802.11n
Frequency	2.400-2.4835GHz
Transmit Power	<20dBm(EIRP)
Wireless Security	Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering
SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control (IP QoS)
Security	NAT Firewall, SPI Firewall, MAC / IP / URL Filtering
IPv6	IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management	Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools
Port Forwarding	Virtual server, Port Triggering, UPnP, DMZ, Manage Control
VPN Pass-Through	PPTP, L2TP, IPSec Pass-through
ATM/PPP Protocols	ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs
Advanced Features	Ethernet WAN (EWAN) Guest Network, Wireless Schedule Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS, IGMP snooping V1/2 IGMP Multicast, UPnP
USB Sharing	Storage Sharing FTP Server Media Server
IGMP	IGMP snooping V1/V2/V3 IGMP Multicast
IPSec VPN	10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS)
OTHERS
Certification	CE, RoHS
Package Contents	TD-W9970 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Power Adapter
System Requirements	Windows 10/8.1/8/7/Vista/XP or Mac OS or Linux-based operating system
Environment	Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
