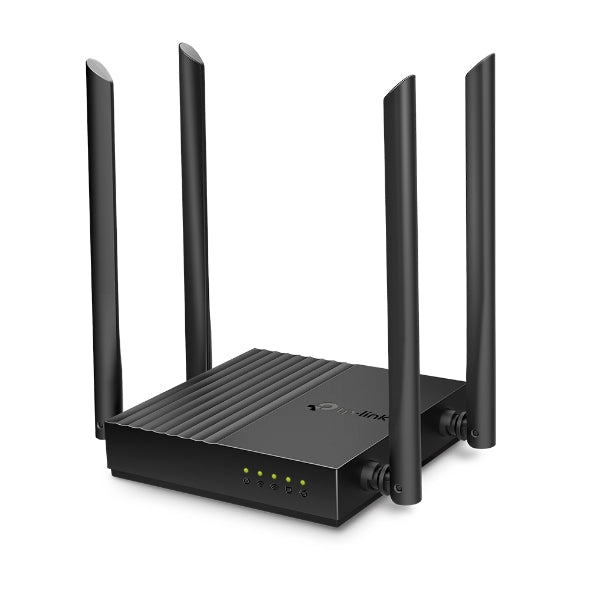

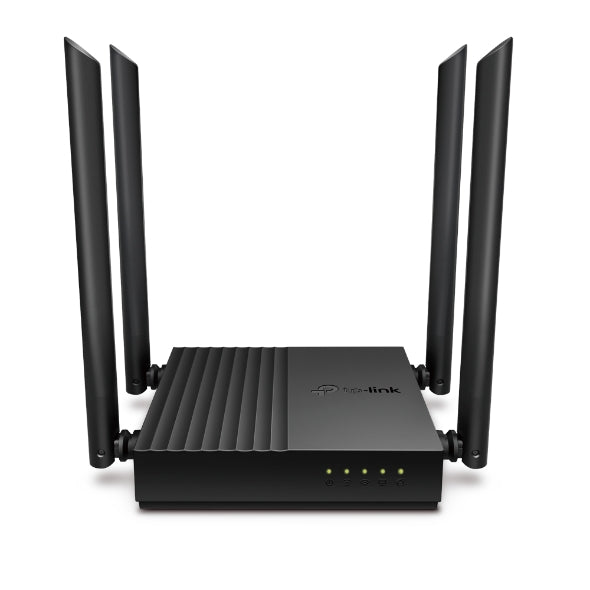

Features of TPLink Archer C64 AC1200 Wireless MU-MIMO WiFi Router
- 802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band†
- Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage
- MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once‡
- Beamforming – Beamforming technology delivers a highly efficient wireless connection
- AP Mode – Supports Access Point mode to create a new WiFi access point
- Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
- Easy Setup – Easy network management at your fingertips with TP-Link Tether
Specifications of TPLink Archer C64 AC1200 Wireless MU-MIMO WiFi Router
| WIRELESS | |
| Standards |
Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 400 Mbps (802.11n) |
| WiFi Range |
3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming |
| WiFi Capacity |
MediumDual-Band
Allocate devices to different bands for optimal performance MU-MIMO Airtime Fairness |
| Working Modes |
Router Mode Access Point Mode |
| HARDWARE | |
| Processor | 1.2 GHz CPU |
| Ethernet Ports |

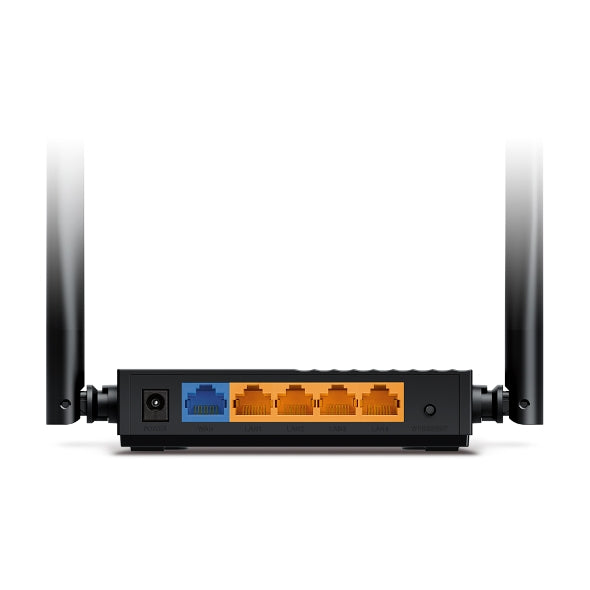

1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Reset Button |
| Power | 12V = 1A |
| SECURITY | |
| WiFi Encryption |
WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall Access Control IP and MAC Binding |
| Guest Network |
1× 2.4 GHz Guest Network 1× 5 GHz Guest Network |
| SOFTWARE | |
| Protocols |
IPv4 IPv6 |
| Parental Controls |
URL Filtering Time Controls |
| WAN Types |
Dynamic IP Static IP PPPoE(Dual Access) PPTP(Dual Access) L2TP(Dual Access) |
| Quality of Service | QoS by Device |
| Cloud Service |
OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding |
Port Forwarding Port Triggering UPnP DMZ |
| IPTV |
IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP |
Server DHCP Client List Address Reservation |
| DDNS |
TP-Link NO-IP DynDNS |
| Management | Tether App |
| OTHER | |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power |
CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) FCC: <30dBm(2.4 GHz & 5 GHz) |
| WiFi Reception Sensitivity |
5 GHz: 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm 2.4 GHz: |
| PHYSICAL | |
| Dimensions (W×D×H) |
4.7 × 4.7 × 1.1 in (120 × 120 × 27.9 mm) |
| Package Contents |
Wireless Router Archer C64 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
