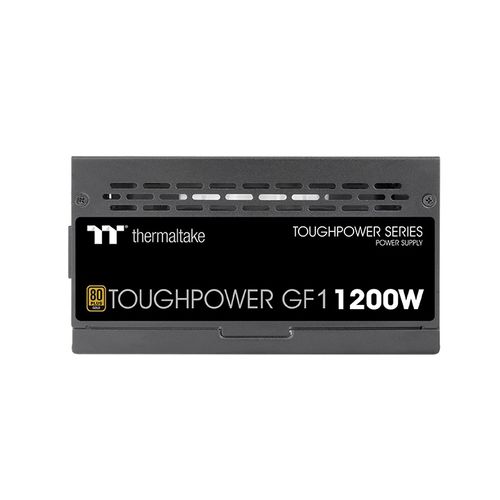

Features of THERMALTAKE Toughpower GF1 1200W

1. Zero Cable Platform
2. Ultra Quiet 140mm Hydraulic Bearing Fan
3. Smart Zero Fan
4. ＜30mV Low Ripple Noise
5. Fully Modular Low-Profile Flat Cable
6. 80 PLUS Gold Certified and Intel C6/C7 States Ready
7. CYBENETICS - EFFICIENCY LEVEL CERTIFICATION – PLATINUM & GOLD
8. CYBENETICS – NOISE LEVEL CERTIFICATION – STANDARD+

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

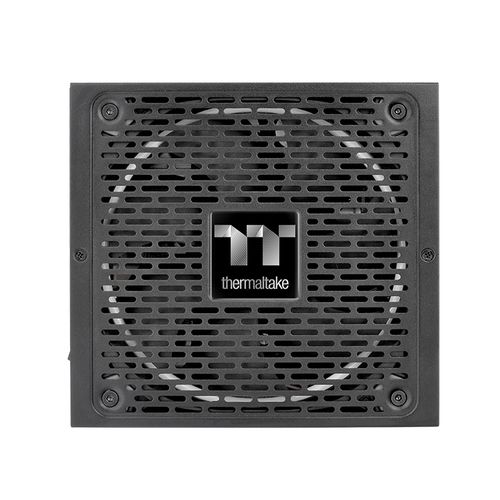

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

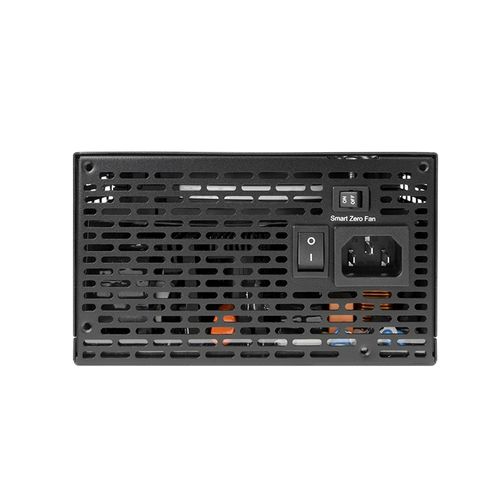

Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

＜30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

Extremely Strict Voltage Regulation ＜±2%

The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

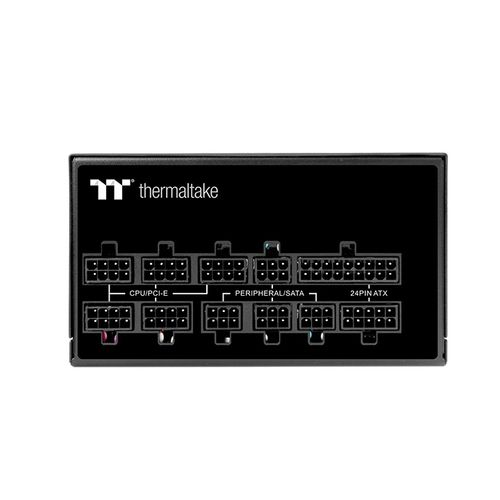

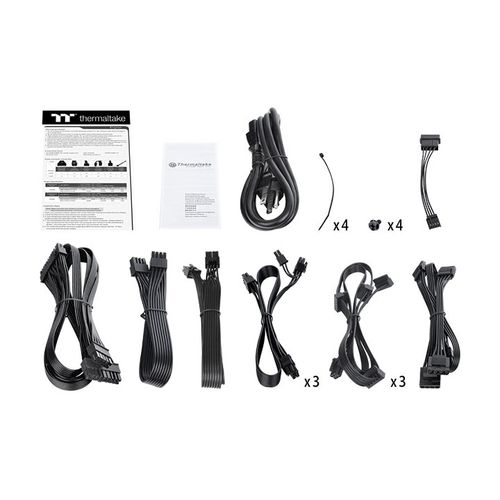

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

CYBENETICS – EFFICIENCY LEVEL CERTIFICATION – PLATINUM & GOLD

Toughpower GF1 1200W is certified to CYBENETICS GOLD in 115V input and PLATINUM in 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥87% & ＜89% of 115V input and ≥91% & ＜93%% of 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).

CYBENETICS – NOISE LEVEL CERTIFICATION – STANDARD+

Toughpower GF1 1200W is certified to CYBENETICS STANDARD+ in terms of the noise level. There are seven noise level certifications, covering from dead silent PSUs (<15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and states of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load

Specifications of THERMALTAKE Toughpower GF1 1200W
