TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Distinctive Design DNA
Embedded with the appearance of Level 20 chassis, the pillars of the Level 20 HT Snow Edition carry the same structural aesthetics and architectural design but with a vertical tower body. Components in the Level 20 HT Snow Edition are chambers, allowing maximum ventilation and space management optimization.

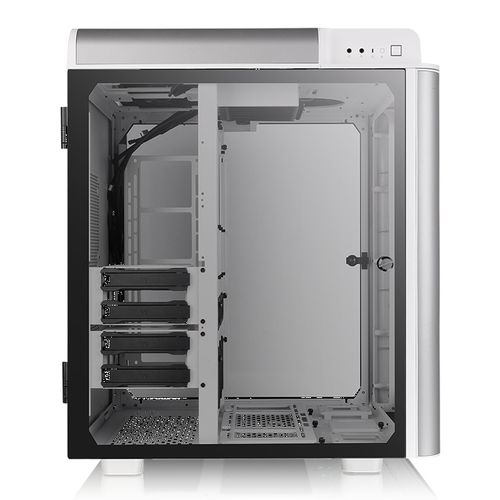

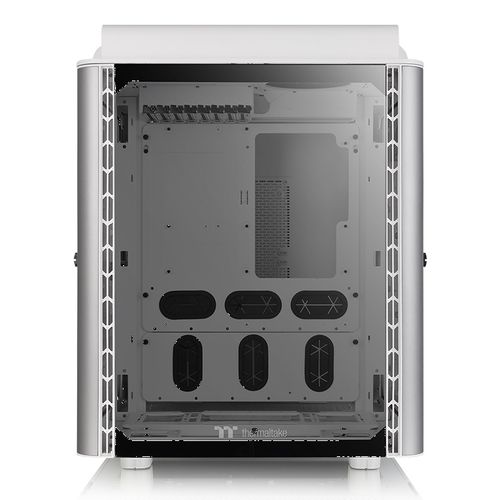

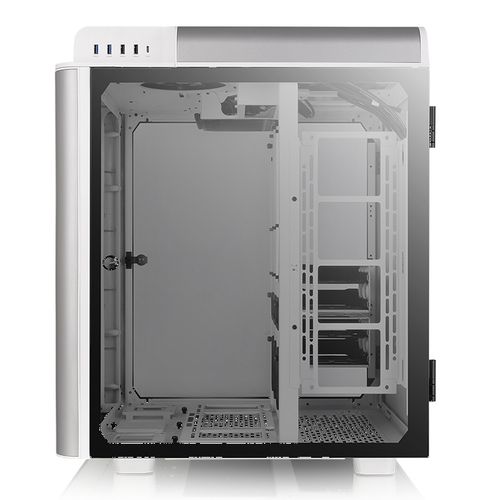

Tempered Glass Window With Ultimate Viewing Angles
Thermaltake Cabinet Level 20 HT Snow Edition comes with four tempered glass panels at the front, top and both sides which make it easy to display the internal components. For the front and top tempered glass panels, users can easily unlock by pressing down the locking mechanism located on the top part of the glass, allowing quick and easy access. The left and right hinged doors are also equipped with a smart lock security system allowing you to easily secure the inner components of your case.
Dust Reduction
Well-designed quick removal magnetic fan filters on the back and at the base provide excellent dust protection and dirt reduction, ensuring a dust-free environment.
Superior Hardware Expansion
Exceptional Cooling Possibilities
Airflow In and Out
interior temperature stays low at all time.

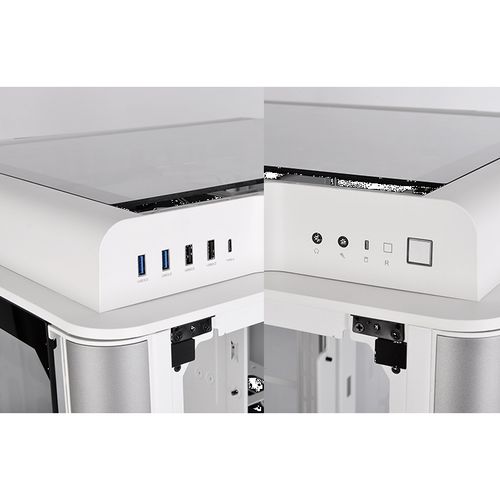

Modern I/O Ports
The top-right I/O port panel features two USB 3.0 and two USB 2.0 data transfer ports, along with one USB 3.1 (Gen 2) Type C port.
DMD: Dismantlable Modular Design
Strip your case down to the bones and install elements when and as you need them with our modular design. The Level 20 HT Snow Edition features modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Specifications of THERMALTAKE Level 20 HT EATX Full Tower (Snow)
| Series | Level 20 |
| Model | Level 20 HT Snow |
| P/N | CA-1P6-00F6WN-00 |
| Case Type | Full Tower |
| Dimension (H x W x D) | 613 x 468 x 503 mm (24.13 x 18.43 x 19.8") |
| Net Weight | 20.38kg / 44.93lbs |
| Side Panel | 4x Tempered Glass (4mm Thickness) |
| Color | Exterior & Interior: White |
| Material | SPCC |
| Cooling System |
Top (Exhaust): 2 x 140 x 140 x 25mm Turbo Fan (1000rpm, 16dBA) |
| Drive Bays -Accessible -Hidden |
4x 3.5" or 2.5" (With HDD Cage) 1x 2.5" (With HDD Bracket) |
| Expansion Slots | 8 |
| Motherboards |
6.7 x 6.7” (Mini ITX), 9.6 x 9.6” (Micro ATX), 12 x 9.6” (ATX) , 12 x 13” (E-ATX) |
| I/O Ports | 1x Type-C, 2x USB 2.0, 2x USB 3.0, 1x HD Audio |
| PSU | Standard PS2 PSU (Optional) |
| Fan Support |
Left / Right Side: 3x 120mm , 2x 140mm Top: 2x 120mm , 2x 140mm Rear: 2x 120mm , 2x 140mm Bottom: 3x 120mm |
| Radiator Support |
Left/Right Side: 1x 360mm , 1x 280mm Bottom: 1x 360mm |
| Clearance |
CPU-Cooler Height Limitation: 260mm VGA-Length Limitation: 400mm PSU-Length Limitation: 200mm |
