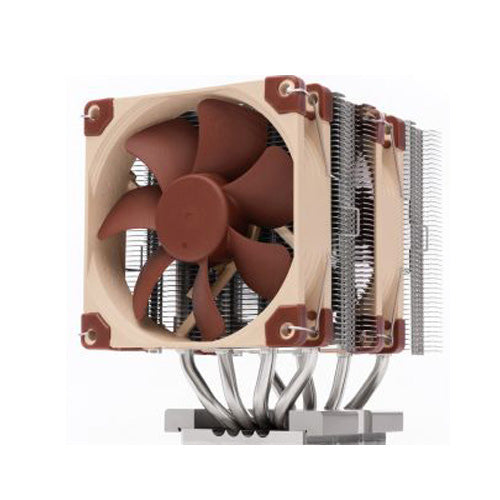

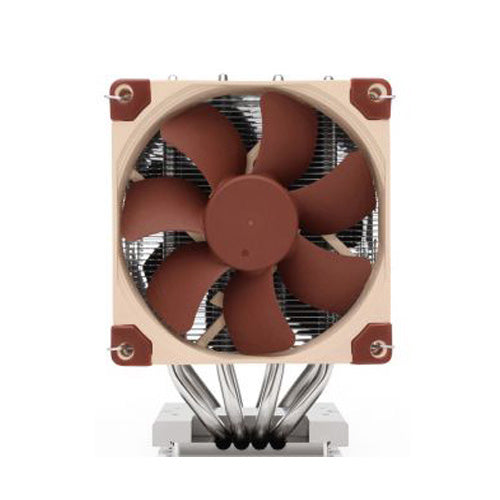

Features of NOCTUA NH-D9 DX-3647 4U Dual Tower CPU Air Cooler

DX series for Intel Xeon

First introduced in 2008,NOCTUA DX line CPU coolers have become a standard choice when it comes to quiet, premium grade air cooling solutions for Intel Xeon processors. Thanks to their superior acoustic efficiency, they are ideal for workstations and servers that run in noise sensitive environments (e.g. audio/video production, content creation, engineering, etc.)

Customized for LGA3647

The new DX-3647 line coolers are dedicated, customised solutions for Intel’s professional LGA3647 platform, which makes them an ideal fit for both Skylake-SP based Xeon Scalable CPUs (Platinum, Gold, Silver or Bronze, Purley series) and Xeon-Phi processors (code names Knight’s Landing or Knight’s Mill).

Enlarged contact surface

At 70x56mm, the heatsink’s copper contact surface is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of Intel’s LGA3647-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.

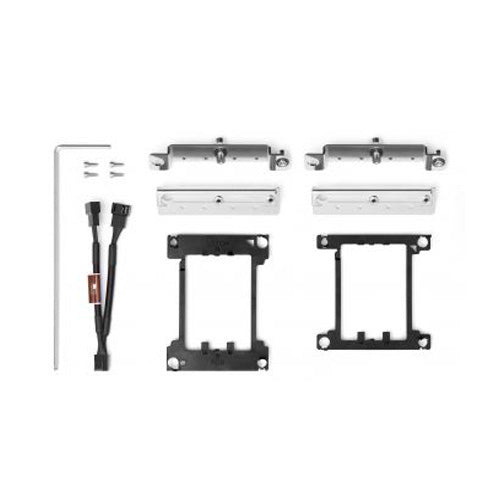

Supports square and narrow type LGA3647 sockets

The heatsink’s SecuFirm2™ mounting system includes two sets of brackets in order to support both square and narrow type LGA3647 sockets. Thanks to pre-installed mounting screws and the included processor clips (square type and narrow type without Omni-Path fabric connector, with fabric connector on request), the installation procedure is easy, quick and secure.

Compact 92mm size for best compatibility

Thanks to its compact footprint (95x95mm with center fan only, second fan can be installed on either side depending on available space) and a total height of only 134mm, the NH-D9 DX-3647 4U provides excellent PCIe compatibility and is small enough to fit most 4U size rack-mount enclosures.

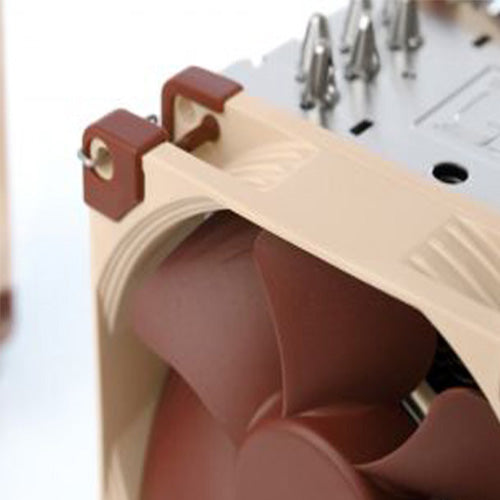

Dual NF-A9 PWM fans

The NH-D9 DX-3647 4U is equipped with two of Noctua’s award-winning NF-A9 92mm fans in their high-speed 2500rpm HS-PWM variant. This push/pull dual fan configuration makes it possible to achieve a level of cooling performance that is remarkable for such a compact cooler and comes close to the bigger NH-U12S DX-3647.

PWM support and y-cable

The NF-A9 premium fans supplied with the NH-D9 DX-3647 4U support PWM for convenient automatic speed control through the motherboard, which allows them to run near silent at lighter loads and to speed up only when necessary. The supplied y-cable makes it possible to power and control both fans simultaneously from a single motherboard fan header

Pre-applied NT-H1 thermal compound

Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance and outstanding long-term stability. Having the paste pre-applied to the heatsink base ensures optimal bond-line thickness and saves precious time in installation. Ideal for system integrators!
