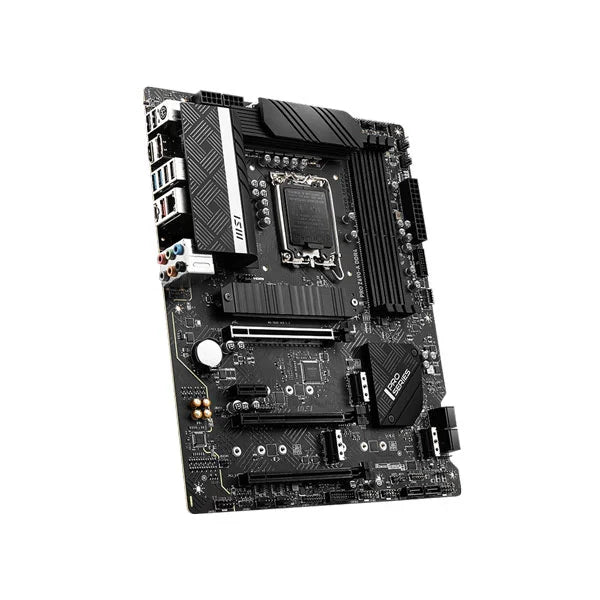

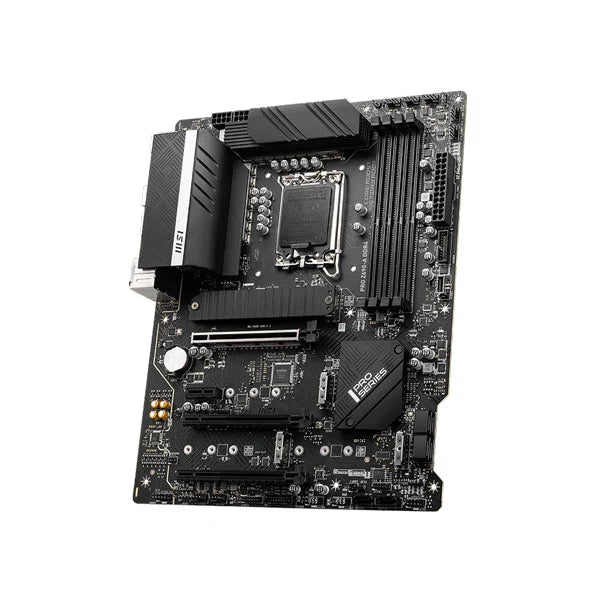

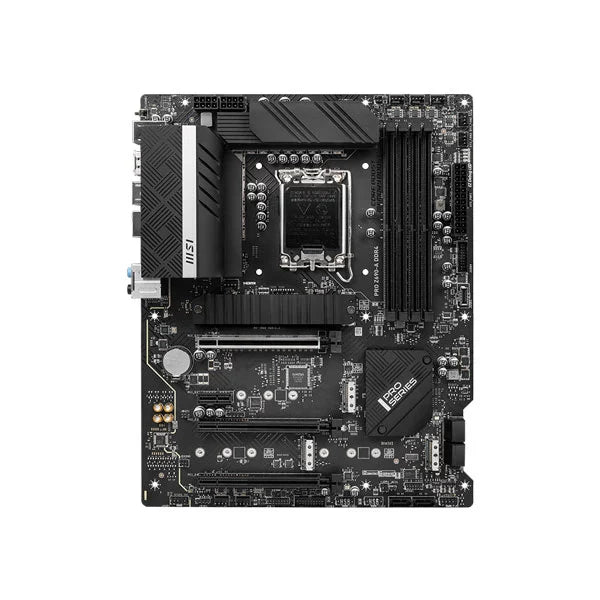

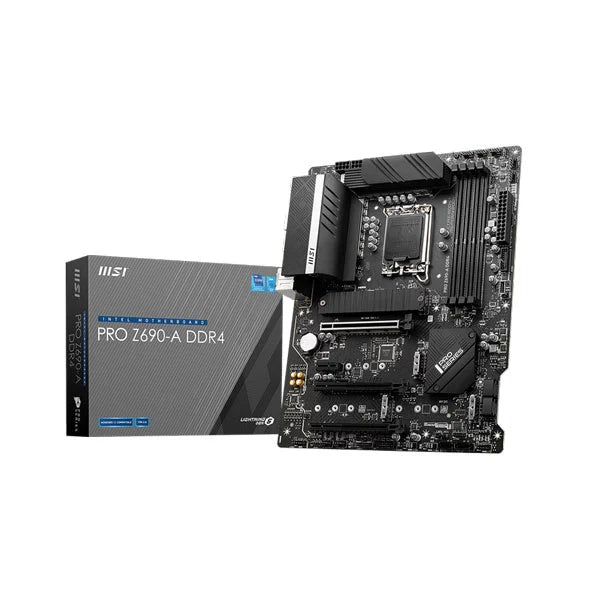

Feature of MSI Pro Z690-A DDR4 Intel Motherboard

1. Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
2. Supports DDR4 Memory, up to 5200+(OC) MHz
3. Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2
4. Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
5. 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
6. Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
7. Audio Boost: Reward your ears with studio grade sound quality
8. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
9. Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™

MSI Business & Productivity

MSI Pro Z690-A DDR4 Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

Supports Intel Core 12th Gen Processors

The PRO Z690-A DDR4 motherboard supports 12th Gen Intel Core processors.

• Form Factor: ATX
• Socket Type: LGA 1700
• Chipset: Intel Z690

14+1+1 Duet Rail VRM (55A) with DrMOS

The VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:

1. 14 Duet Rail Power System (55A)

2. 1 Phase AUX Power

3. 1 Phase GT Power

4. Digital PWM IC

Includes load-line calibration & overvoltage protection

Smart Cooling

VRM Cooling: Features an extended heatsink for improved thermal dissipation.

SSD Cooling

M.2 Shield Frozr prevents thermal throttling.

Frozr AI Cooling

Automatically adjusts system cooling based on CPU & GPU temperatures.

A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.

4 x DDR4 Dual Channel (5200 MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR4 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

Specifications of MSI Pro Z690-A DDR4 Intel Motherboard
