MSI Pro H510M-B DDR4 Intel Motherboard
- Rs. 5,164.00 Rs. 9,999.00
- Availability: In Stock
- SKU: MSI-Pro-H510MB
Features Of MSI Pro H510M-B DDR4 Intel Motherboard Supports 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket MSI Pro H510M-B DDR4 Memory, up to 2933MHz (MAX) Core...
Features Of MSI Pro H510M-B DDR4 Intel Motherboard
User Friendly Design
Whether you are a seasoned builder or brand new, the H510M PRO gives you a wide range of enhancements designed to make installation easier and more reliable. The H510M PRO offers massive compatibility options with support for Intel 11th Gen processors, memory modules with overclocking capabilities, and Windows 10 certification for smooth daily operation. PCIe Steel Armor slots provide a reliable connection while maintaining a high level of durability with extra solder points and steel shield that prevents electromagnetic interference. Frozr AI Cooling and Fully Fan Control manage temperatures within your system and protect your components from damage caused by excessive heat.
Connectivity
Equipped with a wide range of headers and ports, the H510M PRO offers the robust flexibility found in larger boards in a compact form factor. USB 3.2 Gen 1 capabilities provide you with data transfer rates up to 5 Gb/s. Experience enhanced wired networking speeds with Gigabit Ethernet and LAN Manager, providing high-bandwidth and low-latency network capabilities ideal for managing online documents, watching media, and taking part in competitive online games. An M.2 E-Key Slot allows you to equip this board with Wi-Fi and Bluetooth capabilities. With incorporated RGB Mystic Light Sync, you can equip your rig with an array of lighting and effects without the need for a separate controller.
Enhanced Performance
MSI designed the H510M PRO to enhance professional workflow by offering additional systems aimed to streamline your experience. DDR4 Boost and XMP enhance your memory’s performance and efficiency, with Core Boost providing a premium layout that optimizes power flow. Lightning PCIe 4.0 offers data transfer speeds up to 64 GB/s, ensuring optimal performance for graphics and utility cards. Audio Boost, Isolated Audio Signal, and De-Pop protection strengthen the Realtek 7.1-channel audio for more immersive and clear sound without feedback.
Bios & Software
The PRO series motherboard contains a designated security function within the BIOS that protects every private file you create, keeping your information safe and secure. Easily take control of your settings with advanced motherboard features designed for users who wish to fine tune every aspect of their build with MSI Center. True Color optimizes visual output, Live Update ensures your software is up to date, User Scenario swaps preferences, Hardware Monitor gives you real-time feedback on your most critical components, Total Fan Control allows you to adjust fan specifics, and Product Registration makes the process of registering your MSI components easier.
Specifications Of MSI Pro H510M-B DDR4 Intel Motherboard
| Model | PRO H510M-B |
| Chipset | INTEL H470 |
| CPU SUPPORT |
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
|
| Memory |
2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Onboard Graphics |
1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz |
| EXPANSION SLOT |
1x PCI-E x16 slot
1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage |
1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
| USB |
4x USB 2.0 (Rear)
4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) |
| LAN |
Realtek® 8111H Gigabit LAN
|
| Audio |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |
| Internal I/O |
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports |
| LED FEATURE |
4x EZ Debug LED
|

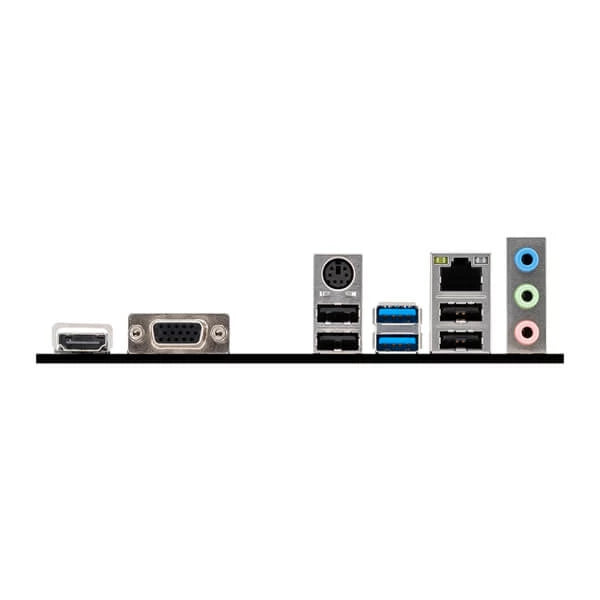

| BACK PANEL PORTS |
HDMI™
VGA Keyboard / Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio Connectors USB 2.0 USB 2.0 |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit
|
| PCB Dimension |
mATX
202mmx236mm |
| Warranty | 3 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice.
|
