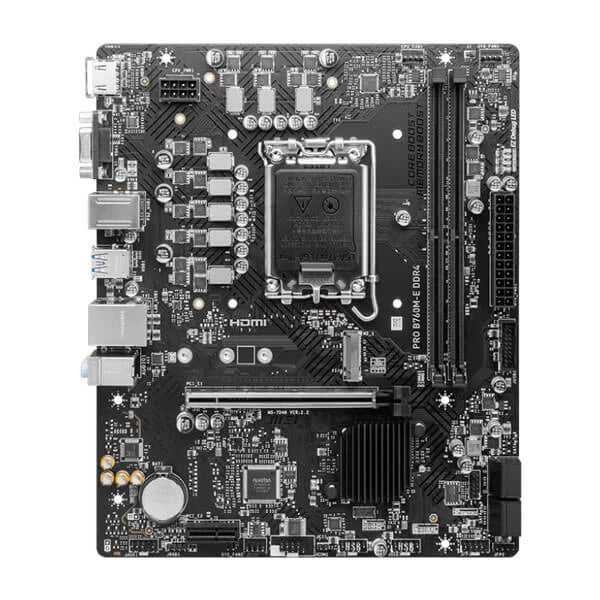

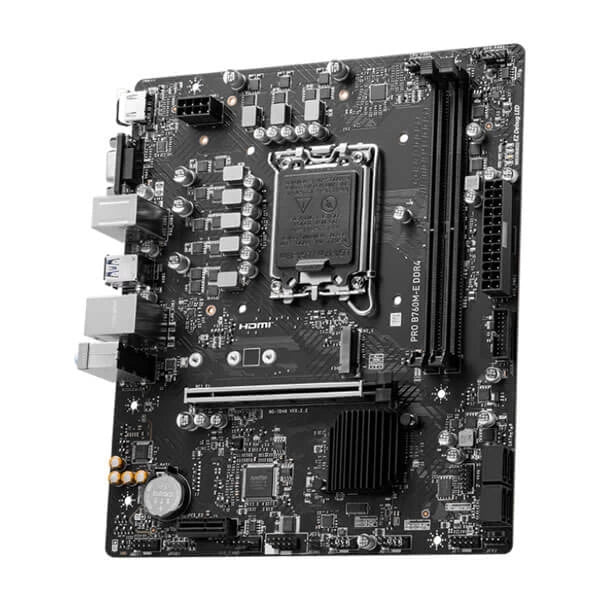

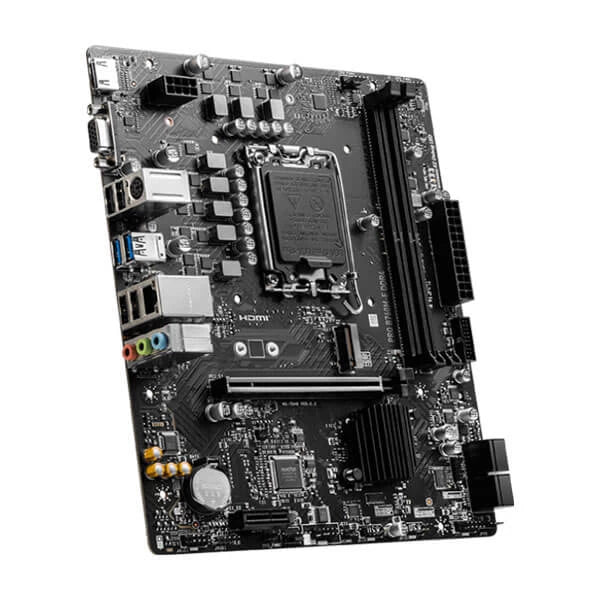

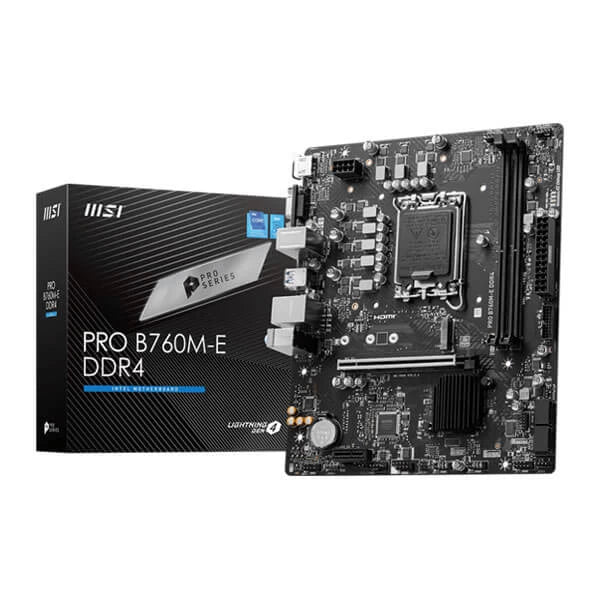

The PRO B760M-E DDR4 motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Micro-ATX
Socket Type: LGA 1700
Chipset: Intel B760
Integrated Cooling Features
Chipset Heatsink: Pro B760M-E Provides passive cooling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
2 x DDR4 Dual Channel (4800 MHz OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 4800+ MHz, supports Intel XMP.
Fortified PCIe 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 3.0 x1 slot
Gen4 M.2 Connector
The PRO B760M-E DDR4 motherboard features MSI’s Gen4 M.2 slot:
1 x Gen4 x4 64Gbps slot

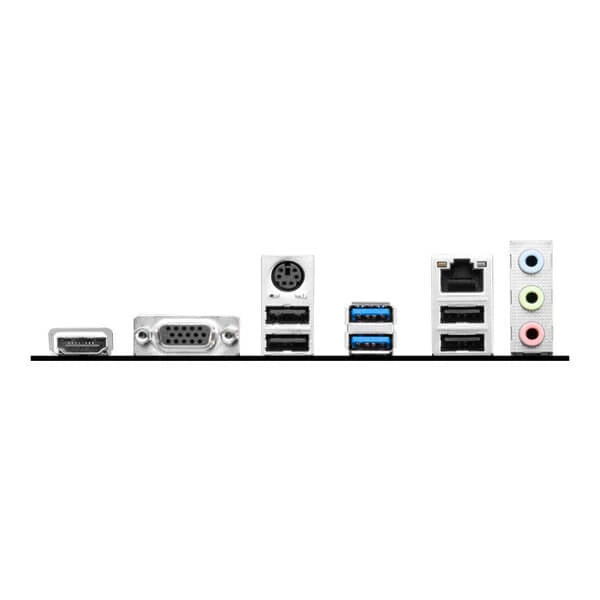

Connectivity
1G LAN: A Realtek 1Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gbps.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Diplay Outputs: Include HDMI 1.4 (4K/30Hz) and legacy VGA
