MSI Pro B660M-A Wifi DDR5 Intel Motherboard

360˚

- 24%

Motherboard

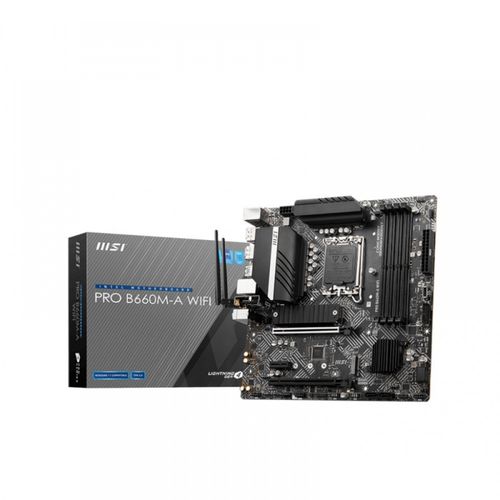

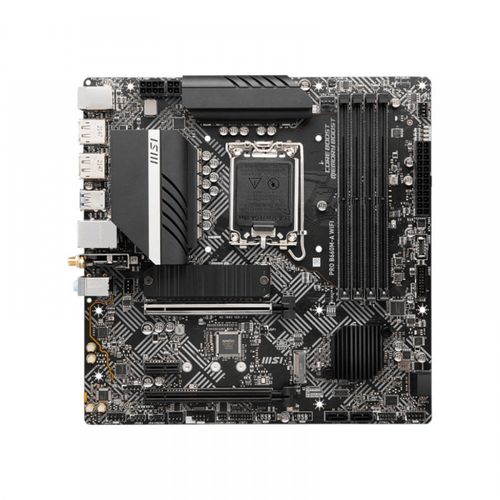

MSI Pro B660M-A Wifi DDR5 Intel Motherboard

Rs. 20,000.00 Rs. 15,100.00

Availability : In Stock

Brand : MSI

SKU : msi-pro-b660m-a-wifi

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_3, MOB12_2, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_1, MOB18_6, MOB19_1, MOB1_B660, MOB20_1, MOB21_2, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1700, MOB4_192, MOB5_6200, MOB6_2, MOB7_DDR5, MOB8_2, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of MSI Pro B660M-A Wifi DDR5 Intel Motherboard

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6200+(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality

Specifications of MSI Pro B660M-A Wifi DDR5 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™ Processors Processor socket LGA1700 Please go to www.msi.com to get the newest support status as new processors are released.
Chipset	Intel® B660 Chipset
Memory	4x DDR5 memory slots, support up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 5200+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) Please refer to www.msi.com for more information on compatible memory.
Expansion Slot	2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Onboard Graphics	2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
MULTI-GPU	Supports AMD® CrossFire™ Technology
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory Support Intel® Smart Response Technology for Intel Core™ processors SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN	1x Realtek® RTL8125BG 2.5Gbps LAN controller
WI-FI & BLUETOOTH®	Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
POWER CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector
INTERNAL USB CONNECTORS	1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From B660 chipset) Supports additional 4 USB 2.0 ports
FAN CONNECTORS	1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors
SYSTEM CONNECTORS	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Tuning Controller connector 1x TBT connector (supports RTD3) 1x Serial port
JUMPERS	1x Clear CMOS jumper
LED FEATURES	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED

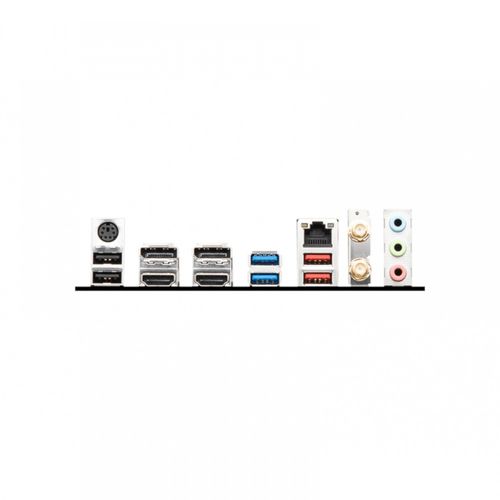

Back Panel Ports	Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A Wi-Fi / Bluetooth
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.
