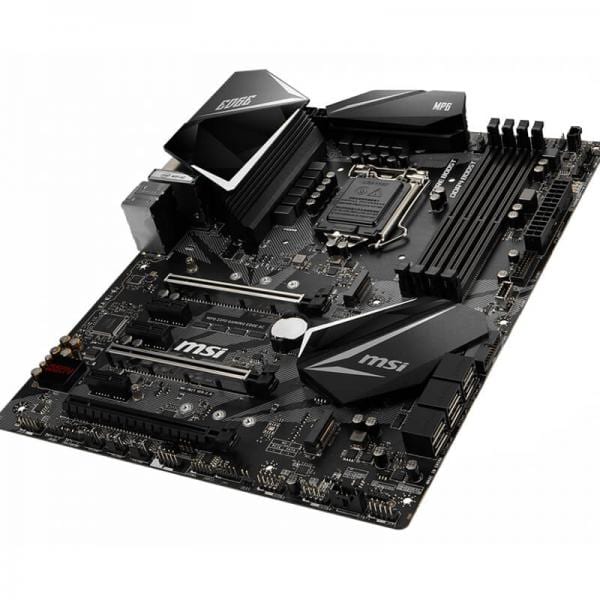

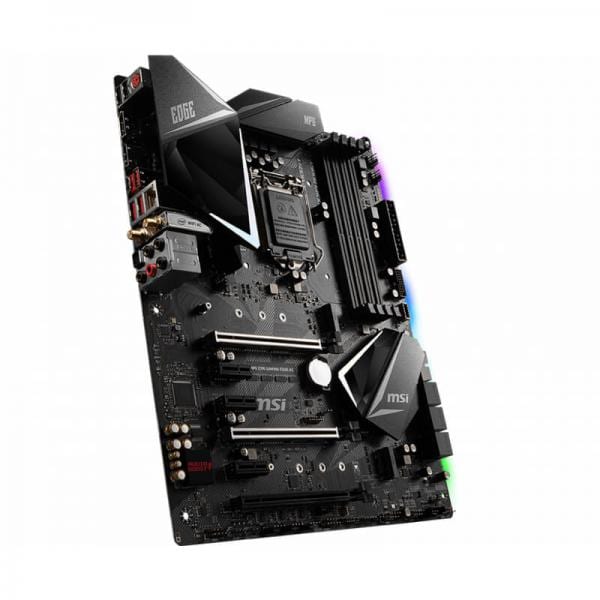

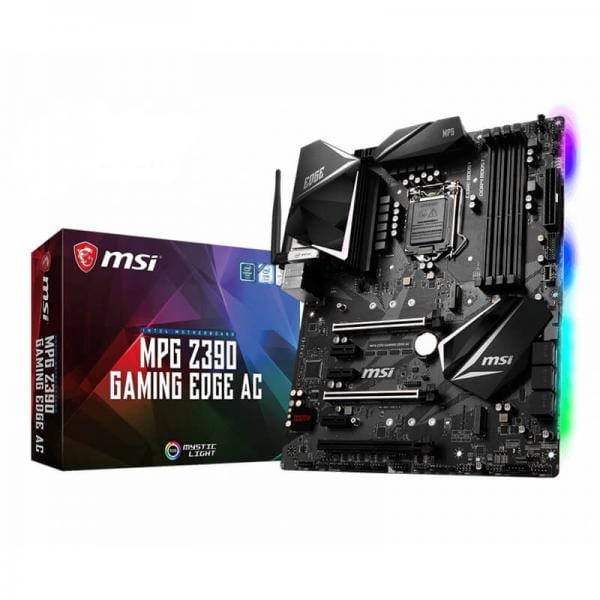

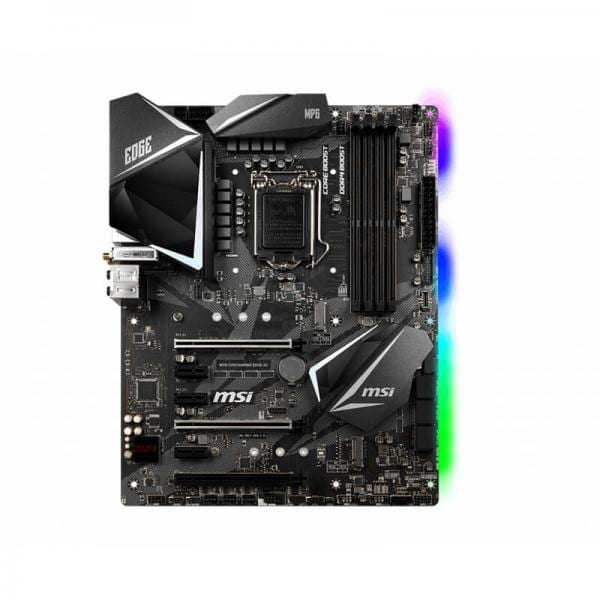

MSI MPG Z390 Gaming Edge AC Wifi DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

MSI MPG Z390 Gaming Edge AC Wifi DDR4 Intel Motherboard

360˚

- 33%

Motherboard

MSI MPG Z390 Gaming Edge AC Wifi DDR4 Intel Motherboard

Rs. 28,932.00 Rs. 19,288.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MPG-Z390-GAMING-EDGE-AC-WIFI

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_6, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_1, MOB17_6, MOB18_5, MOB19_1, MOB1_Z390, MOB20_2, MOB21_1, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1151, MOB4_128, MOB5_4400, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MPG Z390 Gaming Edge AC WiFi DDR4

Full of sharp and salient lines reflecting gorgeous colors design, the perfect balance between appearance and performance with Extended Heatsink Design, Core boost, Twin Turbo M.2, Front USB 3.1 Gen2 connector, and Mystic Light

Supports 9^th / 8^th Gen Intel^® Core™ / Pentium^® Gold / Celeron^® processors for LGA 1151 socket
Supports DDR4 Memory, up to 4400(OC) MHz
Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
Set Core Power Free: Extended Heatsink Design, Core Boost, 8 4 pin CPU power connector, Game Boost, DDR4 Boost
MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
Dragon Center: A brand new software that integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE with user-friendly user interface.

Specifications of MSI MPG Z390 Gaming Edge AC WiFi DDR4

PROCESSOR	Supports Intel® Core™ 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
CHIPSET	Intel® Z390 Chipset
MEMORY	4 x DDR4 memory slots, support up to 128GBSupports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz Dual-Channel mode Non-ECC, un-buffered memory Intel® Extreme Memory Profile (XMP)
SLOTS	3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes) 3 x PCIe 3.0 x1 slots
ONBOARD GRAPHICS	1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@24Hzz 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz *No Display support when using the Processor model with suffix “F”
MULTI-GPU	Supports 2-Way NVIDIA® SLI™ Technology Supports 3-Way AMD® CrossFire™ Technology
STORAGE	Intel® Z390 Chipset 6 x SATA 6Gb/s ports1 2 x M.2 slot (Key M)1Support up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices Intel® Optane™ Memory Ready2M.2 slots and SATA ports share the bandwidth. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
RAID	Intel® Z390 Chipset Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 PCIe storage devices
USB	Intel® Z390 Chipset 3x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors) 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AUDIO	Realtek® ALC1220P Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1 x Intel® I219-V Gigabit LAN controller
WIFI & BLUETOOTH	Intel® Wireless-AC 9462 card Supports 802.11 a/b/g/n/ac, MU-MIMO Rx, 2.4GHz/ 5GHz up to 433 Mbps Supports Bluetooth® 2.1, 2.1 EDR, 3.0,4.0, 5
INTERNAL CONNECTORS	24-pin ATX main power connector 8-pin ATX 12V power connector 4-pin ATX 12V power connector 6 x SATA 6Gb/s connectors 1 x USB 3.1 Gen2 Type-C port 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin Water Pump connector 5 x 4-pin system fan connectors 1 x Serial port connector 1 x Front panel audio connector 2 x System panel connectors Thunderbolt Add-on Card Connector Chassis Intrusion connector TPM module connector 2 x 4-pin RGB LED connectors 1 x 3-pin RAINBOW LED connector 1 x 3-pin CORSAIR LED connector

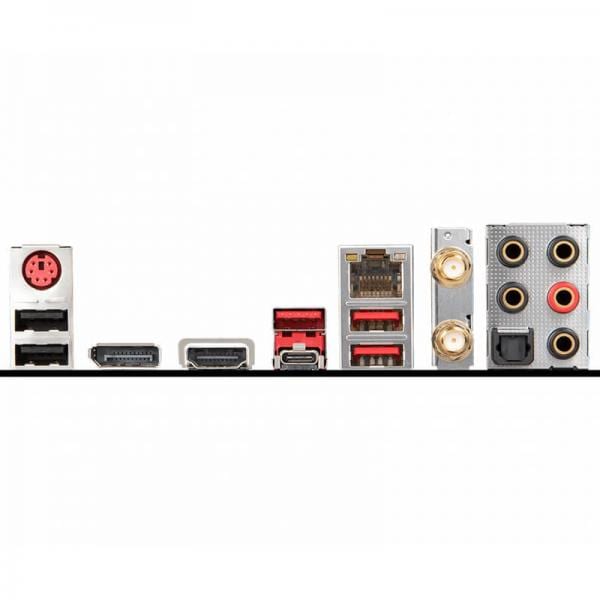

BACK PANEL PORTS	PS/2 Combo Port LAN Wireless / Bluetooth HD Audio Connectors USB 2.0 DisplayPort HDMI USB 3.1 Gen2 Type-A C USB 3.1 Gen1 Optical S/PDIF out
DIMENSIONS	9.6 in. x 12 in. (24.3 cm x 30.4 cm) ATX Form Factor
MOUNTING	9 mounting holes
OPERATING SYSTEM	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
