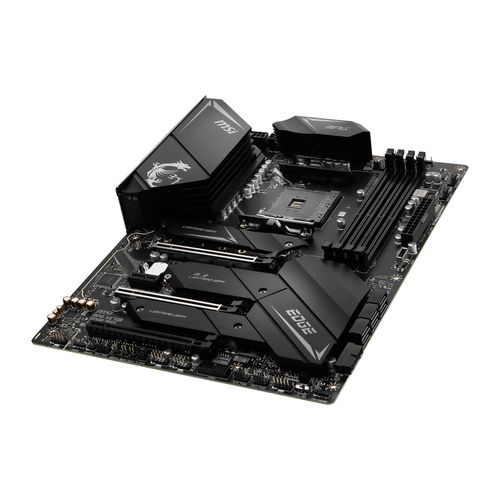

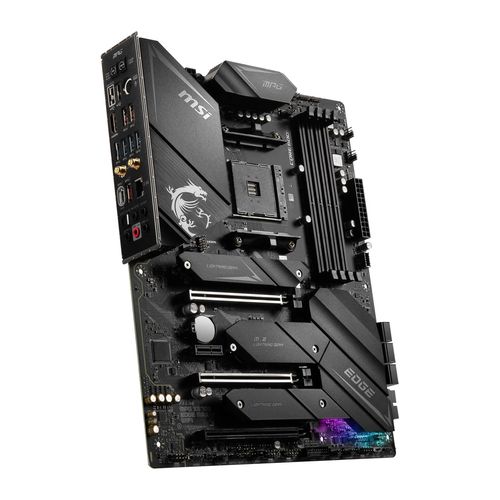

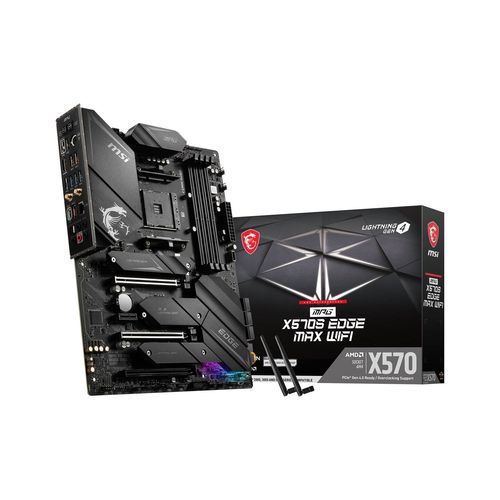

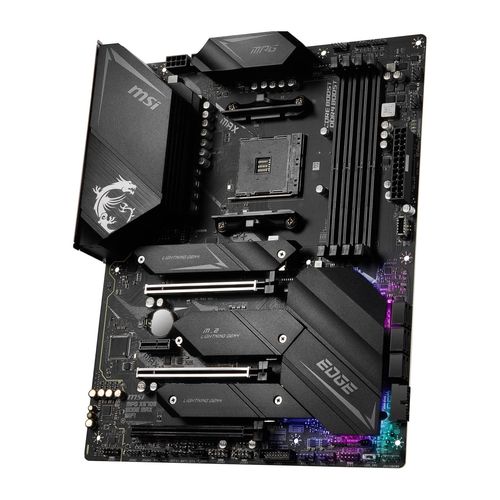

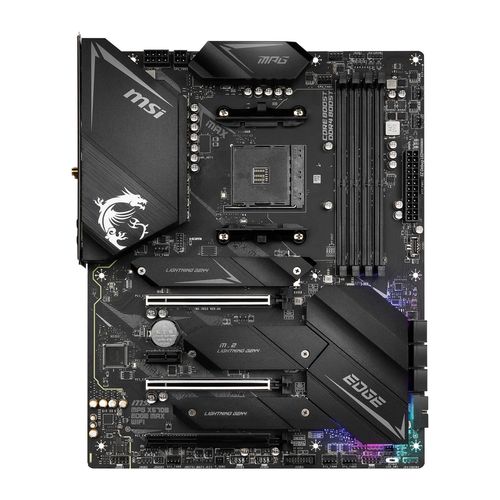

Feature of MSI MPG X570S Edge Max WiFi DDR4

1. Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
2. Supports DDR4 Memory, up to 5300+(OC) MHz
3. Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
4. Enhanced Power Design: 12+2 Duet Rail Power System, 8-pin plus 4-pin CPU power connectors, Core Boost, DDR4 Boost
5. MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click

Supports AMD Ryzen 5000 Series Processors

MSI MPG X570S Edge Max Wifi DDR4 motherboard supports Ryzen 5000 series, 5000 G-series, 4000 G-series, 3000 series, 3000 G-series, 2000 series, 2000 G-series processors.

• Form Factor: ATX
• Socket Type: AMD AM4
• Chipset: AMD X570

12+2 Duet Rail Power System

With its 8-pin plus 4-pin power connectors and exclusive Core Boost technology, the MPG X570S EDGE MAX WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

1. 2-Phase SOC Power
2. Digital PWM IC
3. 12 Duet Rail CPU Power System, Smart Power Stage 75A

Integrated Cooling Features

VRM Cooling: Features an aluminium cover with heatsink, 7W/mK VRM thermal pad and extra choke thermal pad

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

PCB Cooling: Premium 6-layer printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability.

Specifications of MSI MPG X570S Edge Max WiFi DDR4
