MSI MEG Z590 ACE Wifi Gaming DDR4 Intel Motherboard

360˚

- 75%

Motherboard

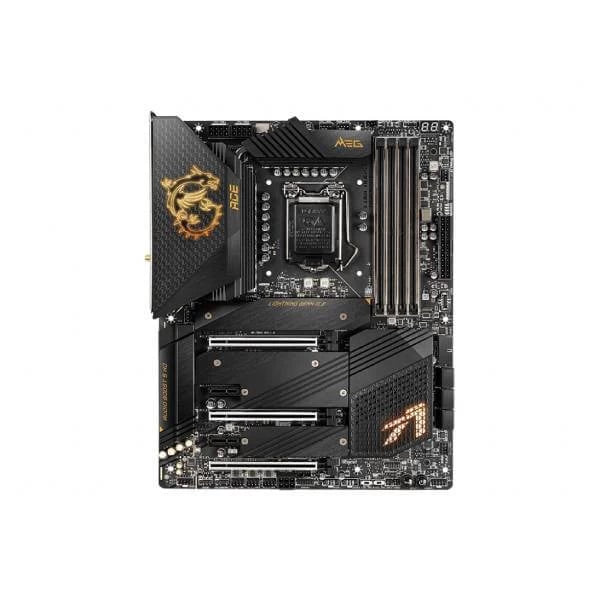

MSI MEG Z590 ACE Wifi Gaming DDR4 Intel Motherboard

Rs. 66,900.00 Rs. 16,615.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-z590-ace

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_8, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_6, MOB18_8, MOB19_1, MOB1_Z590, MOB20_1, MOB21_2, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1200, MOB4_128, MOB5_5600, MOB6_4, MOB7_DDR4, MOB8_4, MOB9_2, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MEG Z590 ACE Gaming DDR4

Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Supports Intel Core 11th Gen Processors

The MSI MEG Z590 ACE Wifi Gaming motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors.

Form Factor: ATX
Socket Type: LGA 1200
Chipset: Intel Z590

16+2+1 Mirrored Power Arrangement

Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases.

Combining dual 8-pin power connectors and an exclusive Mirrored Power Arrangement, the MEG Z590 ACE motherboard is ready for the challenge of high-end processors

Premium Cooling

VRM Cooling: Features aluminum cover, connecting heat pipe, choke and 7W/mK thermal pads.

PCB Cooling

Premium 8-layer printed circuit design with 2 oz. thickened copper and aluminium backplate improves heat dissipation & reliability.

SSD Cooling

M.2 Shield Frozr prevents thermal throttling.

System Cooling

Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Chipset Cooling

Includes an enlarged heatsink.

Fortified PCI-e 4.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:

2 x PCI-e 4.0/3.0 x16 slots (with Steel Armor)
1 x PCI-e 3.0 x16 slot (CrossFire supported)
2 x PCI-e 3.0 x1 slots

Specifications of MSI MEG Z590 ACE Gaming DDR4

CPU (MAX SUPPORT)	i9
SOCKET	1200
CHIPSET	Intel® Z590 Chipset
DDR4 MEMORY	5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNEL	Dual
DIMM SLOTS	4
MAX MEMORY (GB)	128
PCI-E X16	3
PCI-E X1	2
SATAIII	6
M.2 SLOT	4
RAID	0/1/5/10

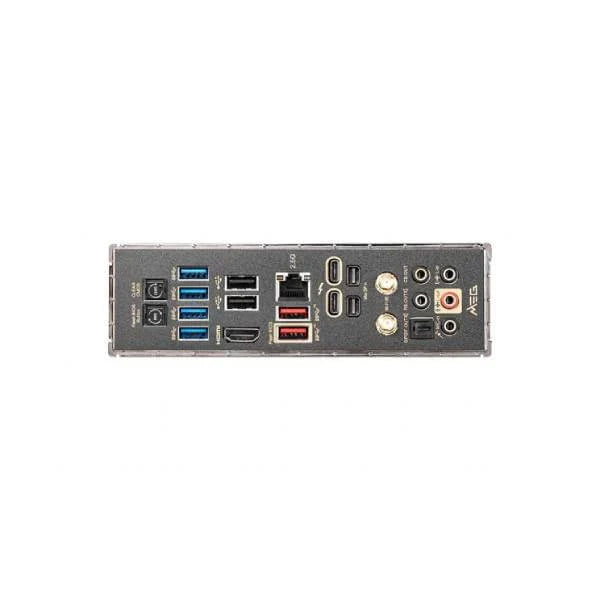

LAN	1x Intel® I225-V 2.5G LAN
WIFI & BLUETOOTH	Intel® Wi-Fi 6E AX210
THUNDERBOLT 4	2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports
USB 3.2 PORTS (FRONT)	1(Gen2, Type C), 2(Gen1, Type A)
USB 3.2 PORTS (REAR)	2(Gen2, Type A), 4(Gen1, Type A)
USB 2.0 PORTS (FRONT)	4
USB 2.0 PORTS (REAR)	2
AUDIO PORTS (REAR)	5+ Optical S/PDIF (Realtek® ALC4082 Codec + ESS SABRE9018Q2C combo DAC)
HDMI	1
DIRECTX	12
FORM FACTOR	ATX
SLI	Y
CROSSFIRE	Y
OPERATING SYSTEM	Support for Windows® 10 64-bit
