MSI MEG X570S Ace Max DDR4 AMD Motherboard

360˚

- 45%

Motherboard

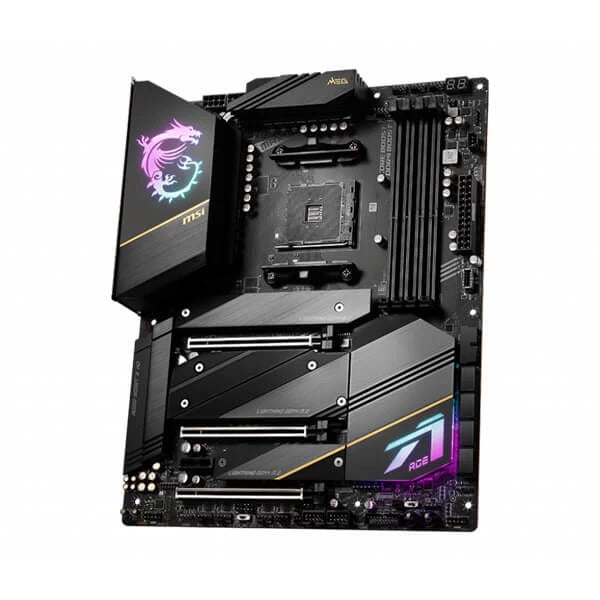

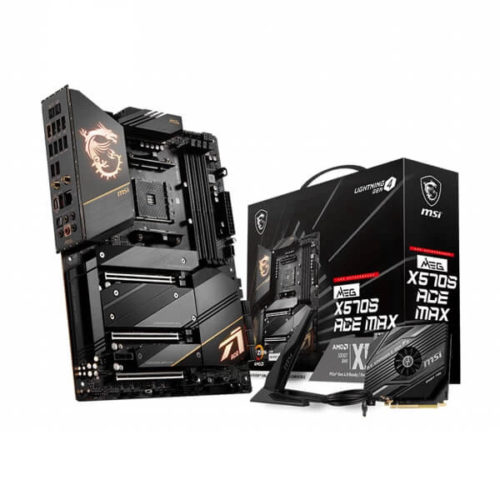

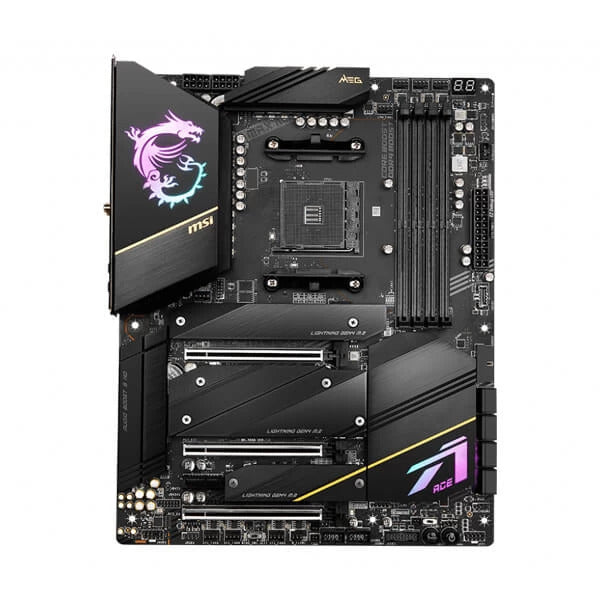

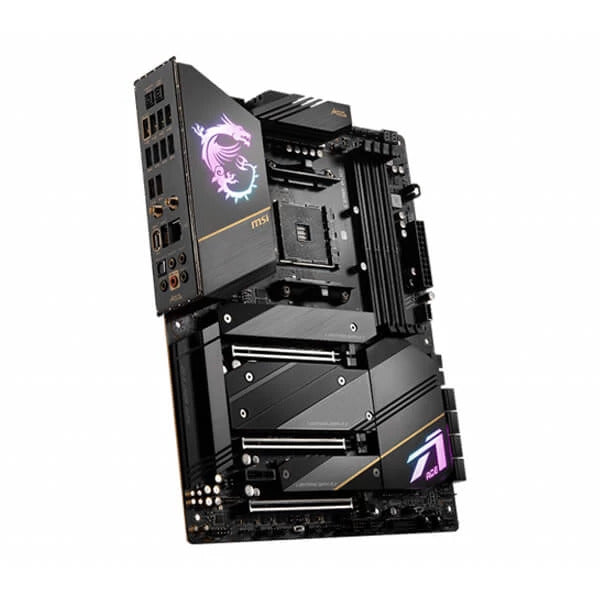

MSI MEG X570S Ace Max DDR4 AMD Motherboard

Rs. 55,500.00 Rs. 30,090.00

Availability : Out Of Stock

Brand : MSI

SKU : msi-x570s-ace-max

Tags : CATP_MSI, CATQ_Motherboard, MOB10_ARGB, MOB11_6, MOB12_0, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_8, MOB18_11, MOB19_1, MOB1_X570, MOB20_1, MOB21_2, MOB22_1, MOB23_75, MOB24_AMD Motherboard, MOB2_ATX, MOB3_AM4, MOB4_128, MOB5_5300, MOB6_4, MOB7_DDR4, MOB8_4, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MEG X570S ACE Max DDR4

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G.
Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards.

FAST AND FUTURE-READY STORAGE

MSI MEG X570S Ace Max motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

LIGHTNING GEN 4 M.2

Utilizing 3rd Gen Ryzen processors, MSI X570S motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

Specifications of MSI MEG X570S ACE Max DDR4


CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors. Supports Socket AM4
Chipset	AMD X570 Chipset
Memory	4x DDR4 memory slots, support up to 128GB Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC 1 Max frequency by A-XMP OC mode: For Ryzen™ 5000 G-Series & 4000 G-Series processors 1DPC 1R Max speed up to 5300 MHz (support overclocking up to 5500+ MHz) 1DPC 2R Max speed up to 4266 MHz 2DPC 1R Max speed up to 4400 MHz 2DPC 2R Max speed up to 3600 MHz For Ryzen™ 5000 Series & 3000 Series processors 1DPC 1R Max speed up to 5100 MHz 1DPC 2R Max speed up to 4000 MHz 2DPC 1R Max speed up to 4000 MHz 2DPC 2R Max speed up to 3600 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory
Expansion Slots	Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors 2x PCIe x16 slots (From processor) PCI_E1 & PCI_E2 support x16/ x0, X8/ X8 for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors PCI_E1 & PCI_E2 support x8/ x0 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors 1x PCIe x16 slot (From X570 chipset) PCI_E4 supports x8 1 1x PCIe x1 slot (From X570 chipset)
Multi-GPU	Supports NVIDIA® SLI® Technology Supports AMD CrossFire™ Technology
LAN	1x Realtek® RTL8125B 2.5 Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 2, FIPS, FISMA
Audio	Realtek® ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Storage	8x SATA 6Gb/s ports (From X570 chipset) 1 4x M.2 slots (Key M) Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors Support SATA 6Gbps (For M2_1, M2_3 & M2_4) M2_1 (From processor) Supports 2280/ 22110 storage devices M2_2 (From X570 chipset) Supports 2260/ 2280 storage devices M2_3 1 (From X570 chipset) Supports 2280/ 22110 storage devices M2_4 1 (From X570 chipset) Supports 2260/ 2280 storage devices
RAID	AMD X570 Chipset Supports RAID 0, RAID 1 and RAID 10
USB	AMD X570 Chipset 1x USB 3.2 Gen 2 10Gbps Type-C internal connector 4x USB 3.2 Gen 1 5Gbps ports available through internal USB connectors 1x USB 2.0 port on the back panel Asmedia® 3241 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel USB 3.0 Hub 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel USB 2.0 Hub 7x USB 2.0 ports (3 Type-A ports on the back panel, 4 ports available through the internal USB connectors) AMD Processor 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 8x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 2x USB 2.0 connectors (support additional 4 USB ports) 2x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x TPM module connector 1x Chassis Intrusion connector 2x 2-pin Thermal sensors connectors 1x Water Flow Meter connector 1x Tuning Controller connector

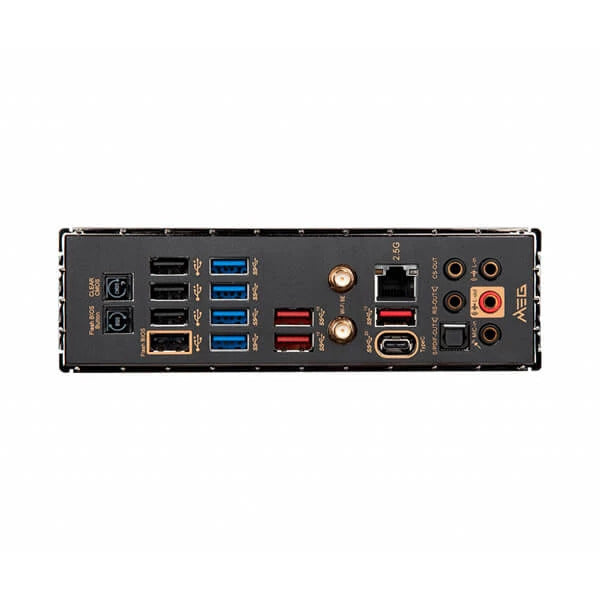

Back panel ports	Clear CMOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth 2.5G LAN HD Audio Connectors Flash BIOS Button USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
LED Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR connector 1x EZ LED Control switch 1x 2-Digit Debug Code LED 4x EZ Debug LEDs
I/O Controller	NUVOTON NCT6687D Controller Chip
Hardware Monitor	CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
