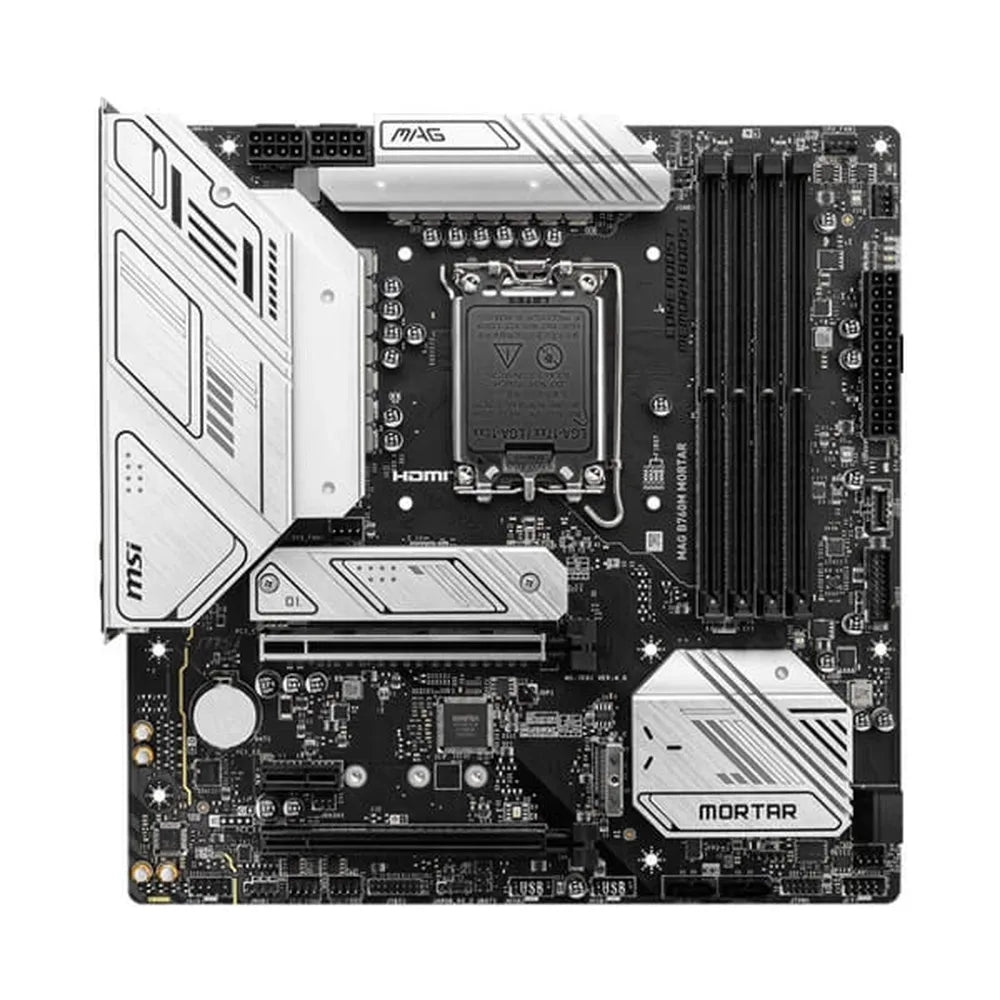

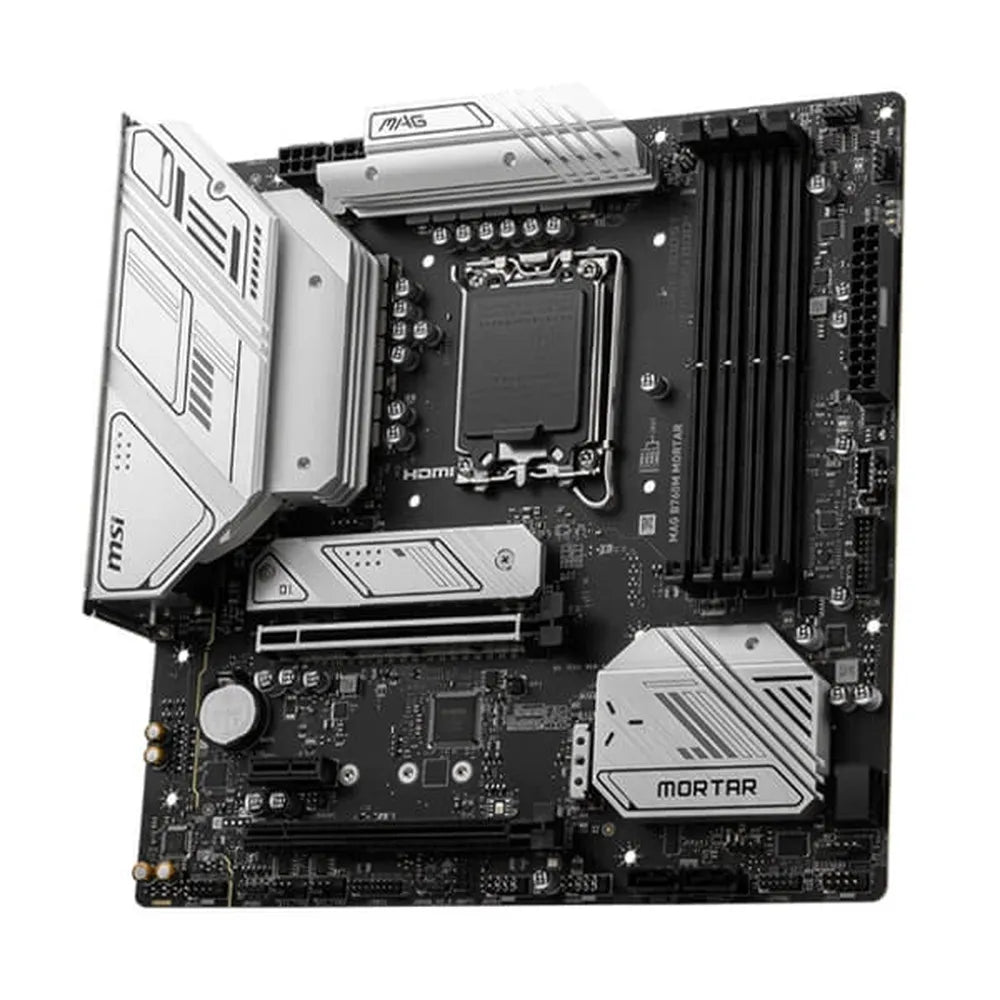

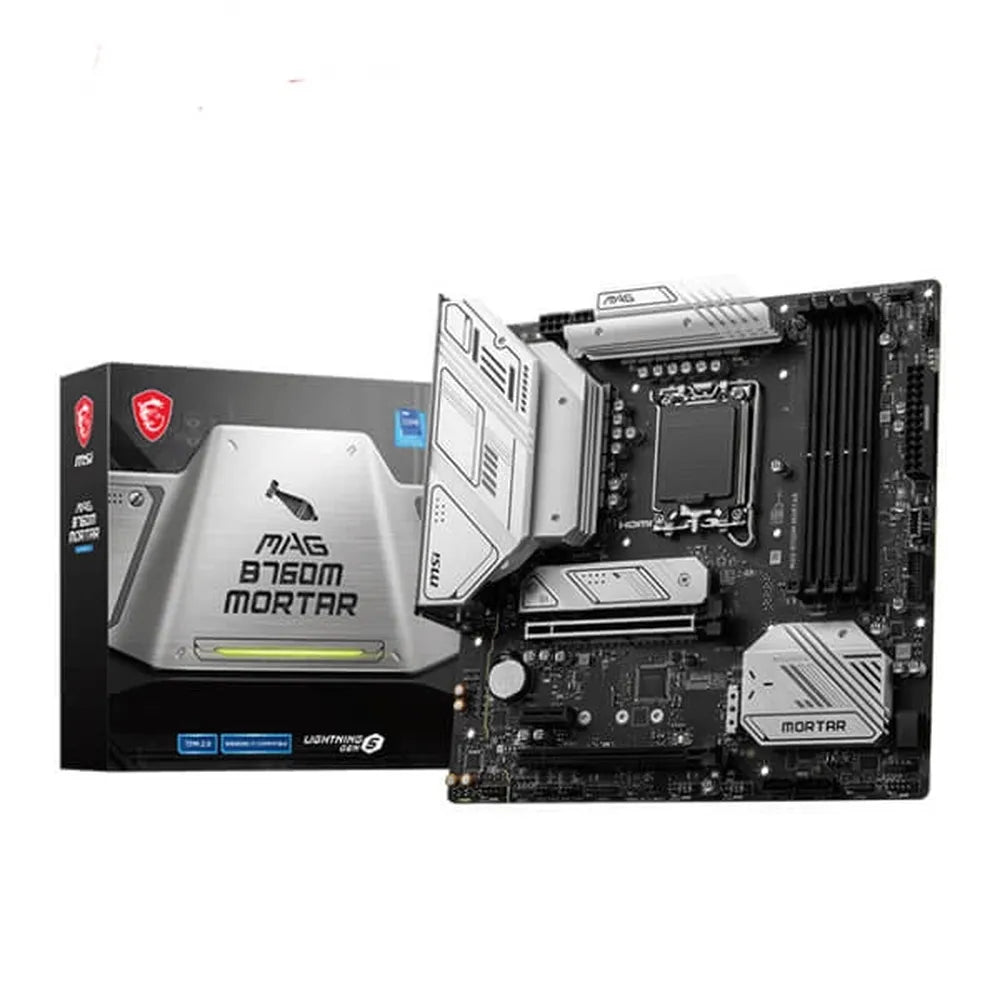

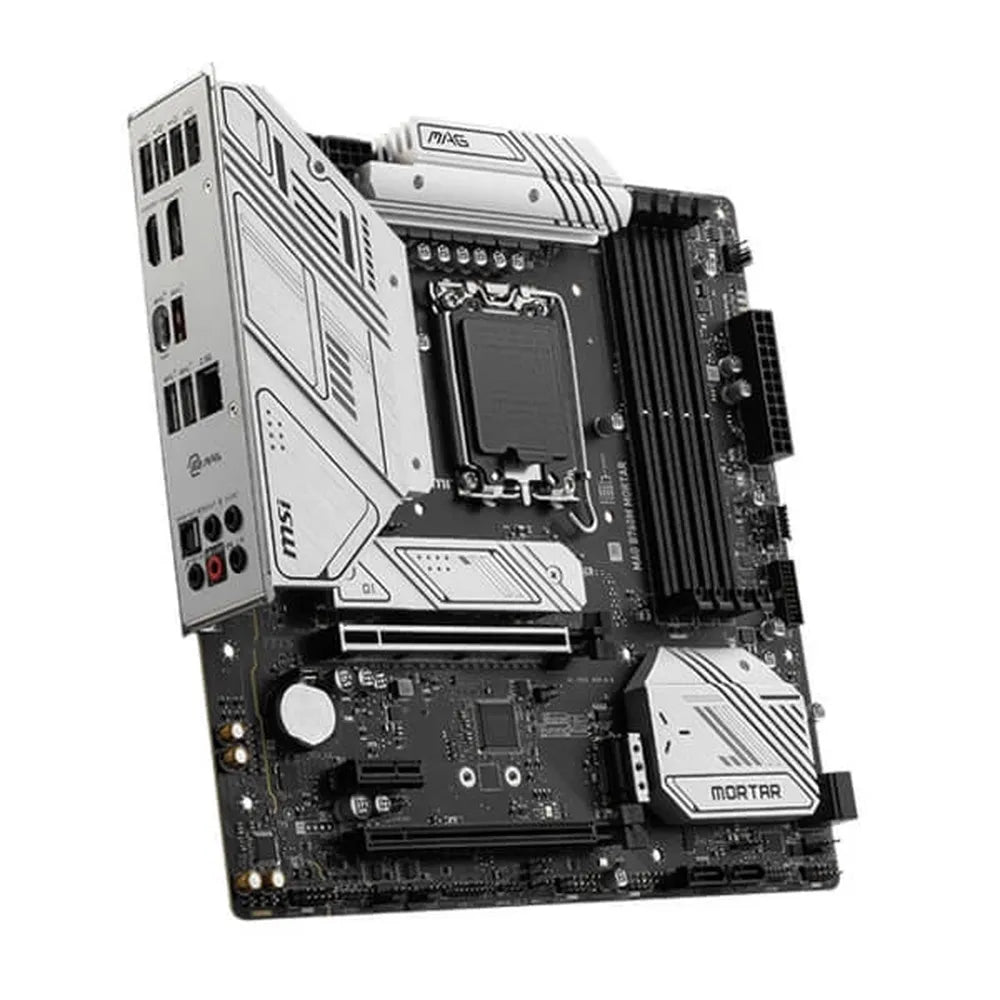

MSI MAG B760M Mortar DDR5 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

MSI MAG B760M Mortar DDR5 Intel Motherboard

360˚

- 31%

Motherboard

MSI MAG B760M Mortar DDR5 Intel Motherboard

Rs. 24,624.00 Rs. 16,894.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MAG-B760M-Mortar

Tags : CATP_MSI, CATQ_Motherboard, Important_Product, MOB10_ARGB, MOB11_6, MOB12_1, MOB13_Gen2, MOB14_Gen 2, MOB15_Black, MOB16_1, MOB17_1, MOB18_7, MOB19_1, MOB1_B760, MOB20_1, MOB21_2, MOB22_0, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1700, MOB4_256, MOB5_5600, MOB6_4, MOB7_DDR5, MOB8_0, MOB9_1, MSI, price_sync, ptmoffer

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features Of MSI MAG B760M Mortar DDR5 Intel Motherboard

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7000+(OC) MHz
Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Audio Boost: Reward your ears with studio grade sound quality High Quality
PCB: 6-layer PCB made by 2oz thickened copper and server grade level material

Specifications Of MSMSI MAG B760M Mortar DDR5 Intel Motherboard

Chipset	INTEL B760
CPU SUPPORT	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
EXPANSION SLOT	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® 2.5Gbps LAN
Audio	Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

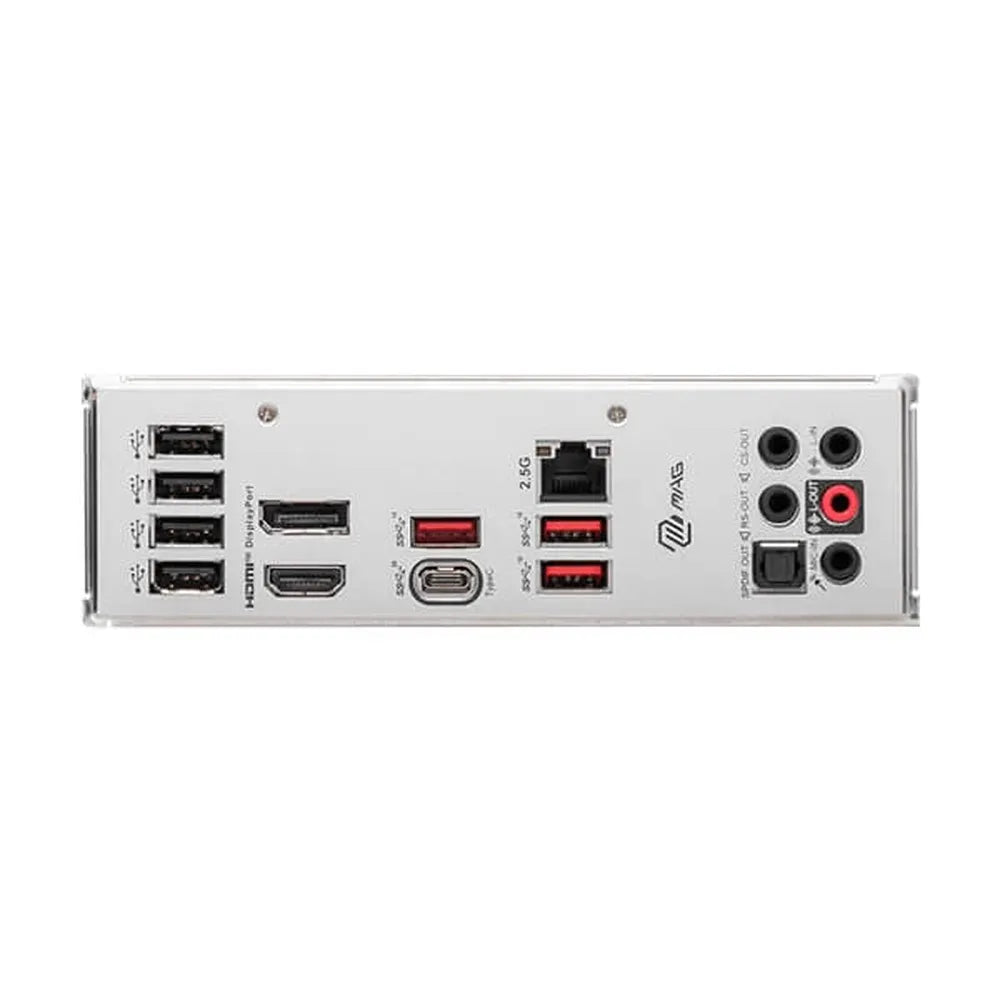

BACK PANEL PORTS	USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension	mATX 243.84mmx243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
