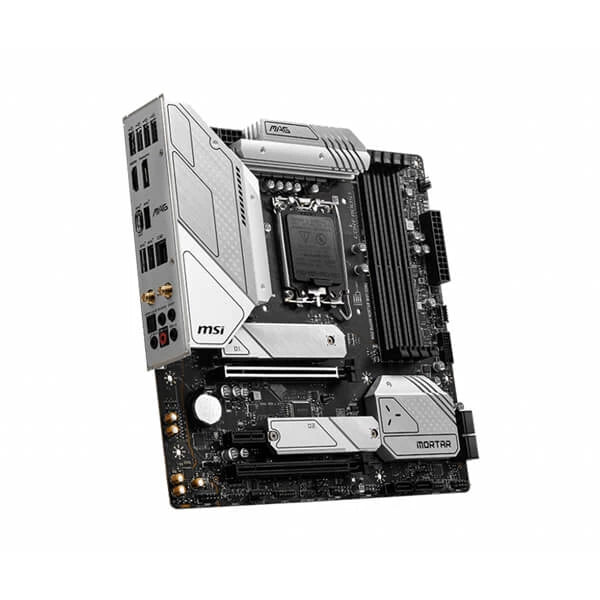

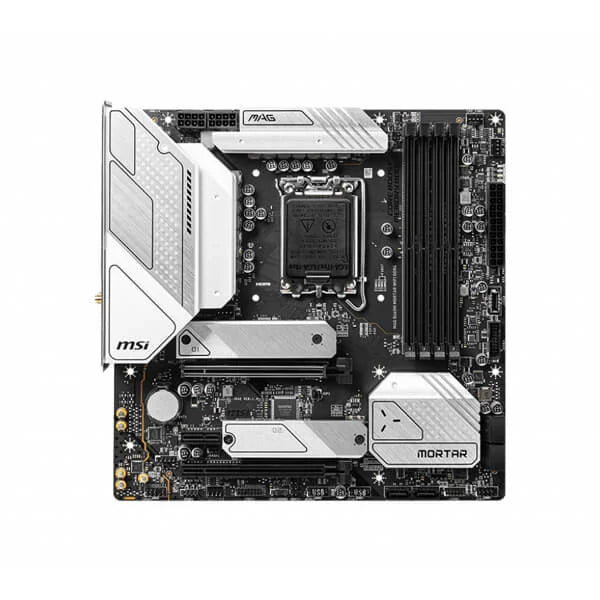

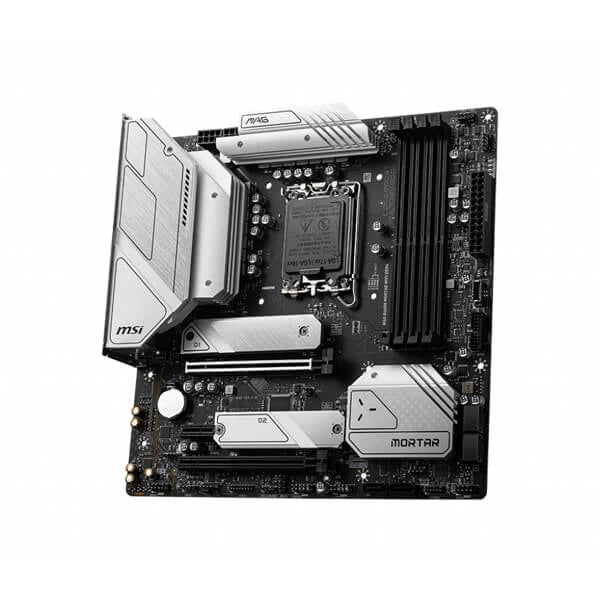

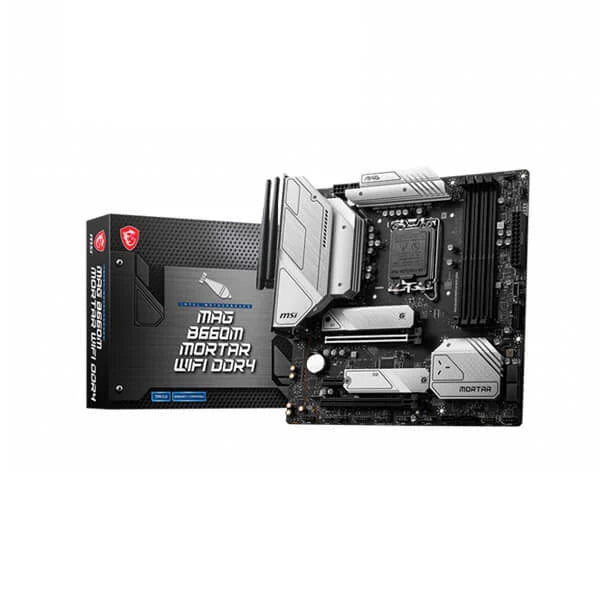

MSI MAG B660M Mortar Wifi DDR4 Intel Motherboard

Rs. 19,999.00 Rs. 16,750.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-MAG-B660M-Mortar-WIFI-DDR4

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_4, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_White, MOB16_1, MOB17_6, MOB18_7, MOB19_0, MOB1_B660, MOB20_1, MOB21_2, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1700, MOB4_128, MOB5_5333, MOB6_4, MOB7_DDR5, MOB8_2, MOB9_1, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI MAG B660M Mortar Wifi DDR4 Intel Motherboard

Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST: Reward your ears with studio grade sound quality
Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Lightning Gen4 Solution

The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

WIFI 6

The latest wireless solution offered in MSI MAG B660M Mortar WiFi DDR4 supports MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

M.2 Shield FROZR

M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Memory Boost

Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Core Boost

With premium layout of MSI MAG B660M Mortar WiFi DDR4 and fully digital power design to support more cores and provide better performance.

Extended Heatsink Design

MSI MAG B660M Mortar Wifi DDR4 extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

2.5G Network Solution

Featuring premium 2.5G LAN with LAN manager to deliver better network experience with MSI MAG B660M Mortar WiFi DDR4.

Specifications of MSI MAG B660M Mortar Wifi DDR4 Intel Motherboard

Processor	Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700
Chipset	Intel® B660 Chipset
Memory	4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
Multi-GPU	Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Storage	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) 1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 SATA_A & SATA_B do not support RAID function.
USB	Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
Audio	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® 8125BG 2.5Gbps LAN controller
Wireless LAN & Bluetooth®	Intel® Wi-Fi 6 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED Feature	4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors

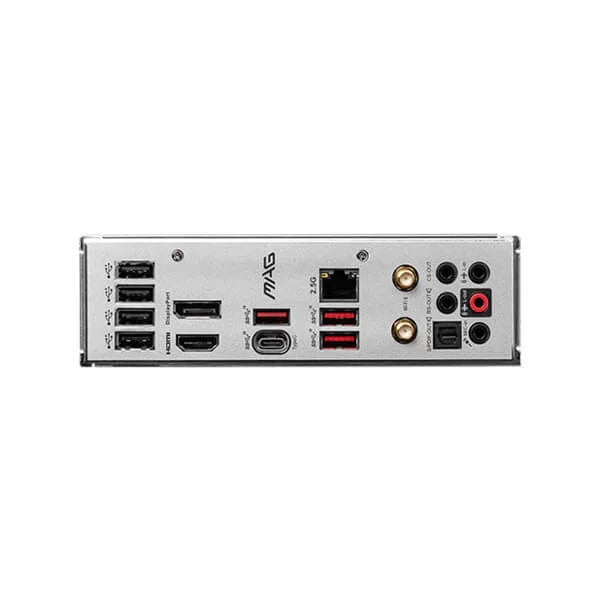

Back panel ports	USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
Dimensions	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
