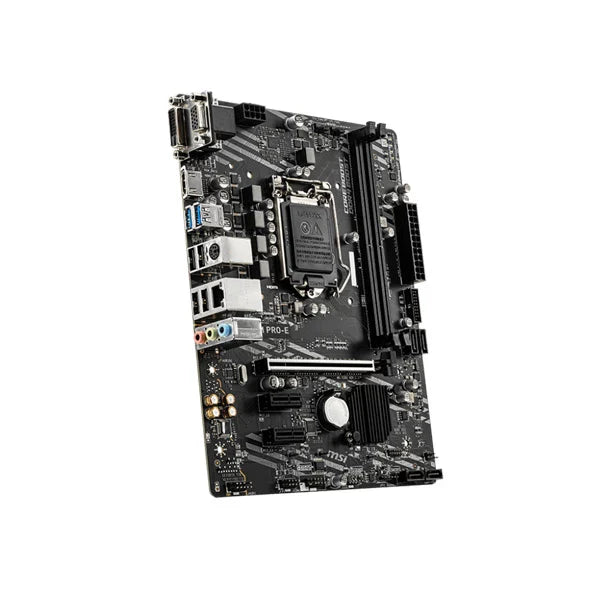

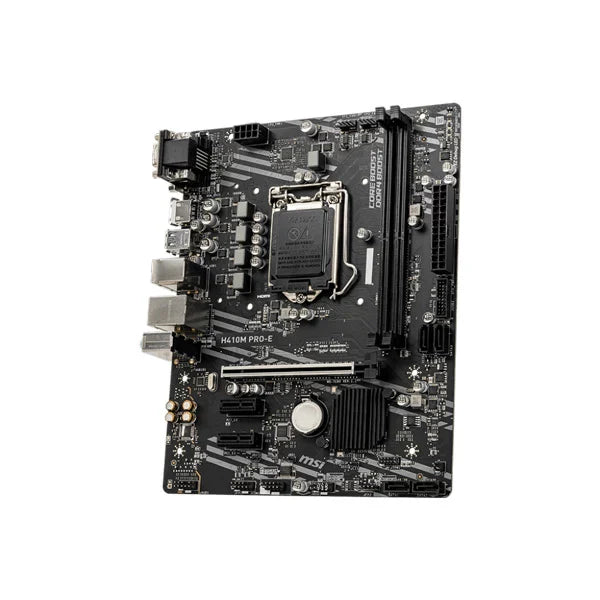

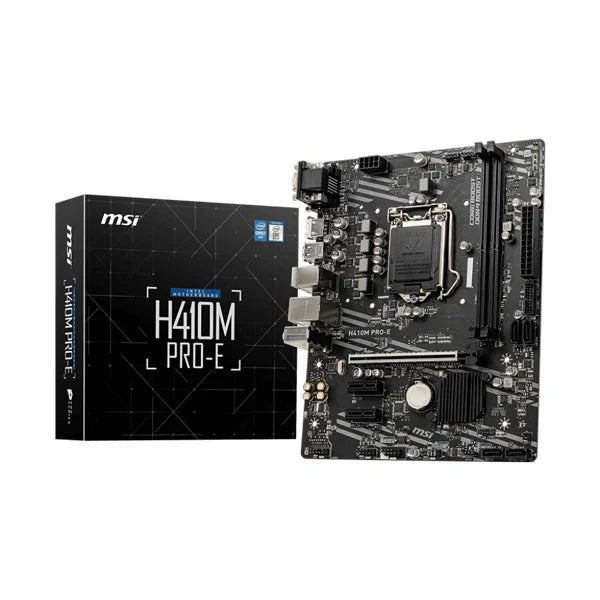

MSI H410M Pro E DDR4 Intel Motherboard

Rs. 5,145.00 Rs. 6,499.00

Availability: In Stock
SKU: MSI-H410M-PRO-e

Feature of MSI H410M Pro E DDR4 Intel Motherboard PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series...

Description

Description

Feature of MSI H410M Pro E DDR4 Intel Motherboard

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI H410M Pro E DDR4 motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Creating a perfect condition to support multi-core CPU running at full speed.

Specifications of MSI H410M Pro E DDR4 Intel Motherboard

Processor	Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA 1200 socket1 2 Please go to www.intel.com for more compatibility information. Onboard graphics output are disabled when using F SKU processors.
Chipset	Intel® H410 Chipset
Memory	2x DDR4 memory slots, support up to 64GB1 Intel® Core™ i7/ i9Supports up to DDR4 2933 MHzIntel® Core™ i5 and belowSupports up to DDR4 2666 MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot	1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH)
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz
Storage	Intel® H410 Chipset 4x SATA 6Gb/s ports
USB	Intel® H410 Chipset4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek R1111H Gigabit LAN controller
Internal connectors	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
Back panel ports	VGA HDMI USB 3.2 Gen 1 5Gbps Type-A Keyboard/Mouse LAN Audio Connectors DVI-D USB 2.0 USB 2.0
Dimensions	Mirco-ATX Form Factor 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
Mounting	6 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
