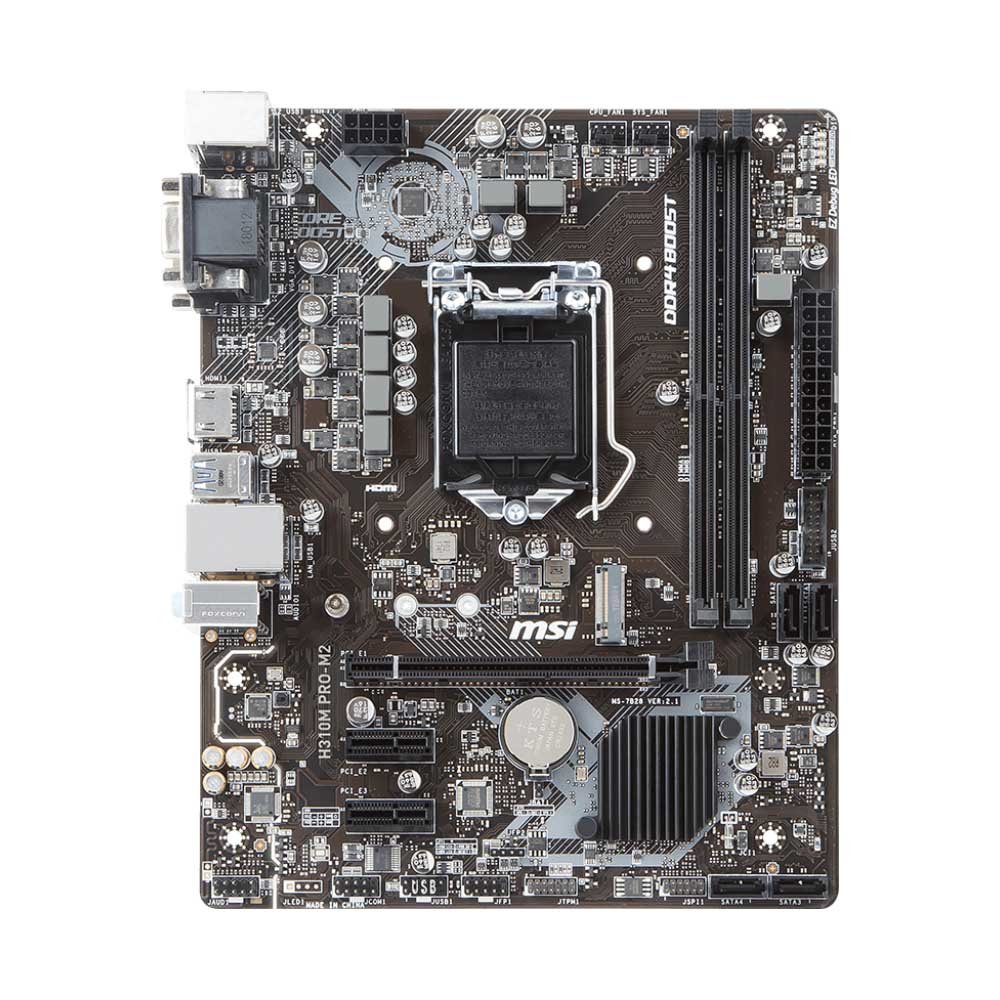

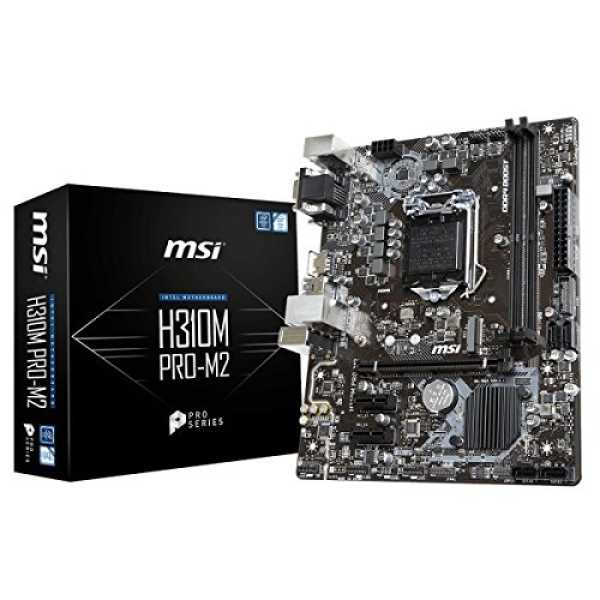

MSI H310M-Pro M2 DDR4 Intel Motherboard

Rs. 9,999.00 Rs. 5,665.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-H310M-PRO-M2

Tags : CATP_MSI, CATQ_Motherboard, MOB10_None, MOB11_2, MOB12_1, MOB13_Gen3, MOB14_Gen2, MOB15_Black, MOB16_0, MOB17_4, MOB18_6, MOB19_0, MOB1_H310, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1151, MOB4_32, MOB5_2666, MOB6_2, MOB7_DDR4, MOB8_1, MOB9_0, MSI

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of MSI H310M Pro-M2 DDR4

Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Supports DDR4 Memory, up to 2666MHz
DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost: Reward your ears with studio grade sound quality.
M.2 and NVMe support, up to 20 Gb/s using PCI-Express Gen2 x4.
EZ Debug LED: Easiest way to troubleshoot.
PCI-E Steel Slot: Protecting VGA cards against bending for better performance, stability and strength.
X-Boost: Software that auto-detects and allows you to boost the performance of any storage, Optane or USB device.
Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Specifications of MSI H310M Pro-M2 DDR4

Processor	Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Chipset	Intel® H310 Chipset This chipset is ME11 firmware based and doesn't feature SDA3.0
Memory	2 x DDR4 memory slots, support up to 32GB Supports DDR4 2666/ 2400/ 2133 MHz Dual channel memory architecture Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Slots	1 x PCIe 3.0 x16 slot 2 x PCIe 2.0 x1 slots
Onboard Graphics	1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1 *No Display support when using the Processor model with suffix “F” Supports up to 2 displays simultaneously
Storage	Intel® H310 Chipset 4 x SATA 6Gb/s ports1 1 x M.2 slot (Key M) Support up to PCIe 2.0 x4 and SATA 6Gb/s Supports 2242/ 2260 /2280 storage devices SATA1 port will be unavailable when an M.2 SATA SSD is installed in the M2_1 slot.
USB	Intel® H310 Chipset 4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors) 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
Audio	Realtek® ALC887 Codec 7.1-Channel High Definition Audio
LAN	1 x Intel I219-V Gigabit LAN controller
Internal connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

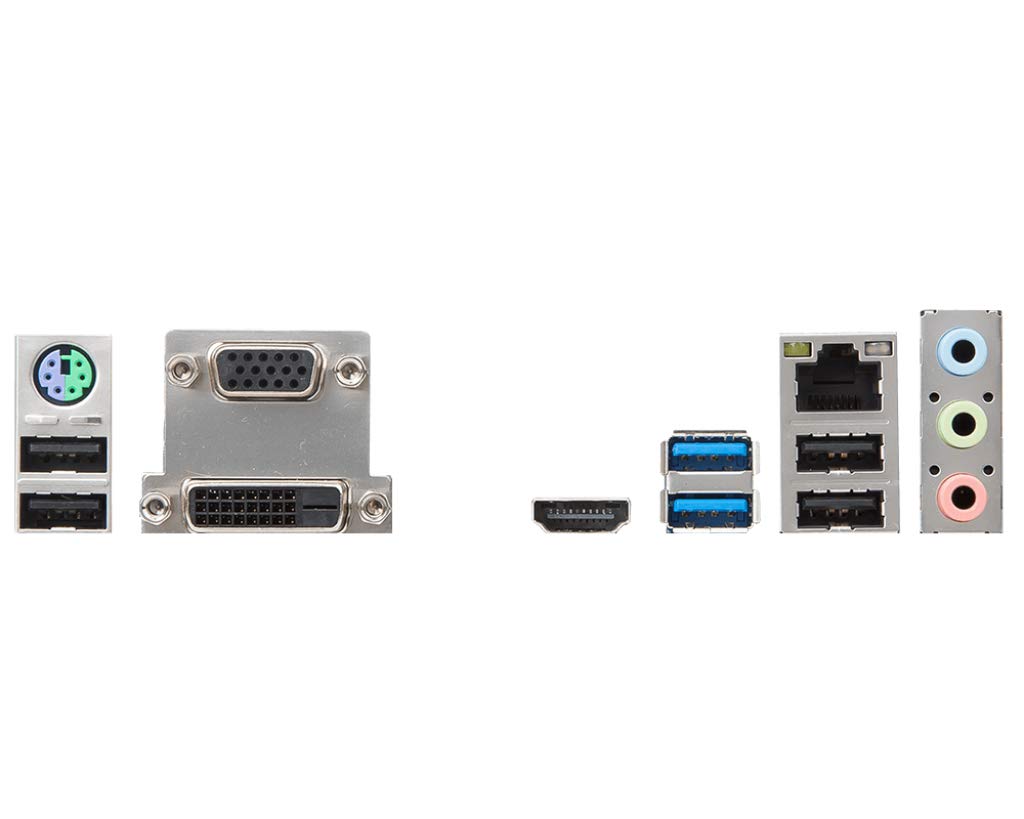

Back panel ports	PS/2 Combo VGA HDMI USB 3.1 Gen1 LAN HD Audio Connectors DVI-D USB 2.0
Dimensions	9.1 in. x 7.3 in. (23.0 cm x 18.5 cm) m-ATX Form Factor
Mounting	6 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
