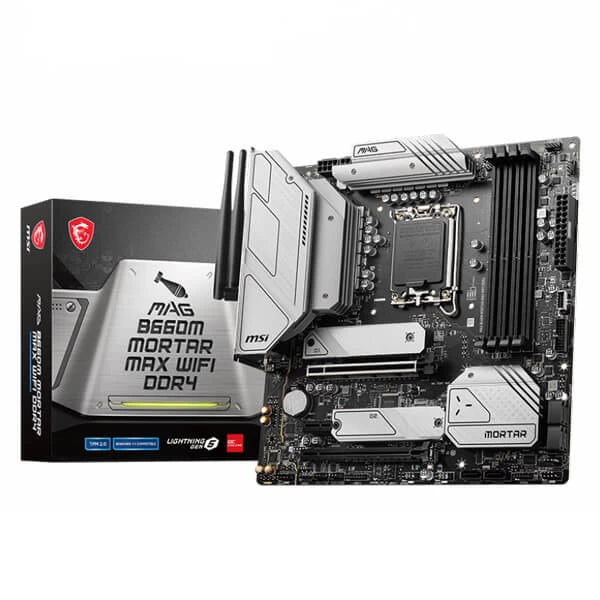

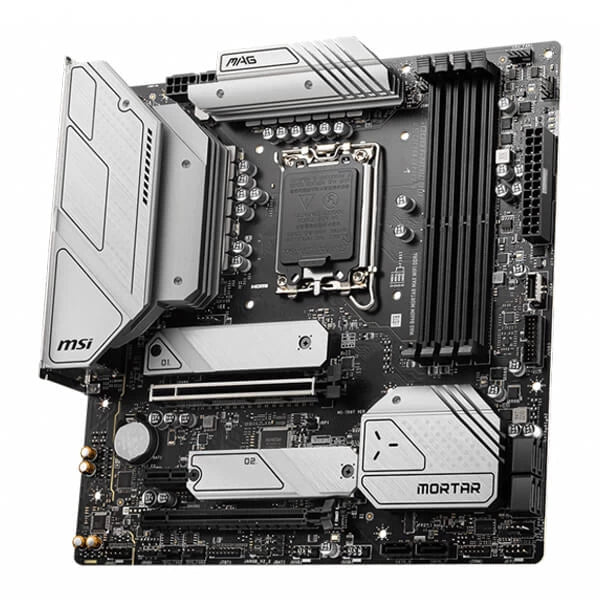

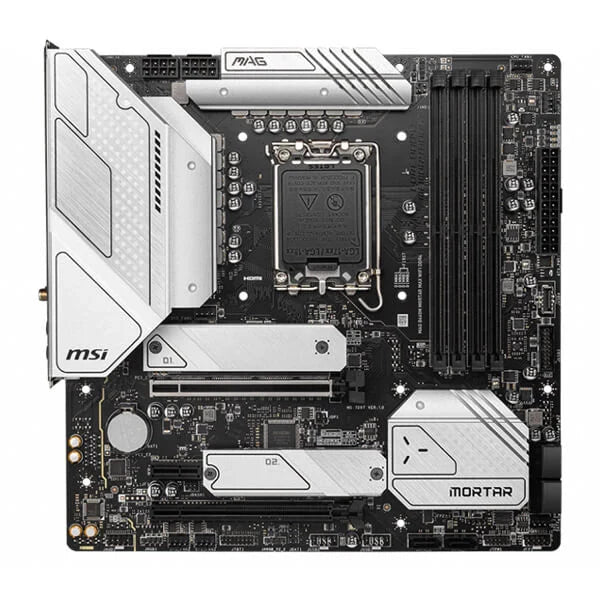

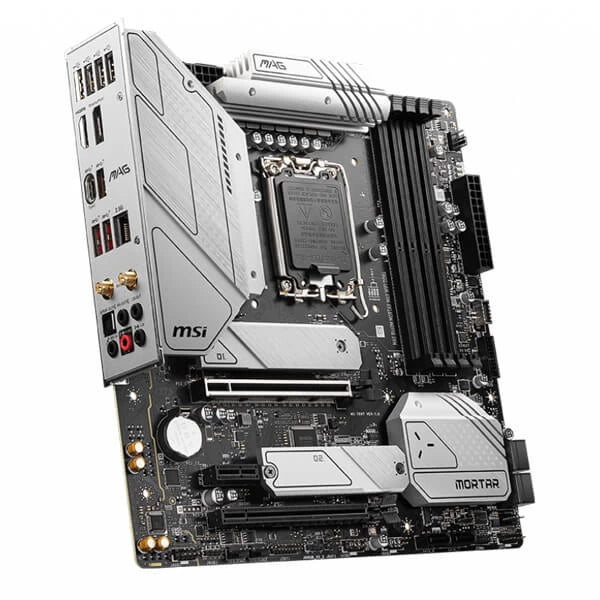

Feature of MSI B660M Mortar Max Wifi DDR4 Intel Motherboard

• Supports 13th and 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
• Supports DDR4 Memory, up to 4800+(OC) MHz
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
• 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
• AUDIO BOOST: Reward your ears with studio grade sound quality
• Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

FULLY CONTROLLABLE IN BIOS AND SOFTWARE

MSI B660M Mortar Max Wifi motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.

M.2 SHIELD FROZR

World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

FAST AND FUTURE-READY STORAGE

MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.

OPTANE: BOOST YOUR HDD TO PERFORM LIKE AN SSD

PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device. Intel® Optane™ technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.

Specifications of MSI B660M Mortar Max Wifi DDR4 Intel Motherboard
