MSI B650M Project Zero DDR5 AMD Motherboard

360˚

- 44%

Motherboard

MSI B650M Project Zero DDR5 AMD Motherboard

Rs. 35,999.00 Rs. 20,095.00

Availability : Out Of Stock

Brand : MSI

SKU : MSI-B650M-Project-Zero

Tags : 10koffer, CATP_MSI, CATQ_Motherboard, Diwalisale, featured_product, Important_Product, Independence, MOB10_ARGB, MOB11_5, MOB12_1, MOB13_Gen4, MOB14_Gen 3, MOB15_Black, MOB16_1, MOB17_0, MOB18_7, MOB19_1, MOB1_B650, MOB20_0, MOB21_3, MOB22_1, MOB23_75, MOB24_AMD Motherboard, MOB2_ATX, MOB3_AM5, MOB4_256, MOB5_4800, MOB6_4, MOB7_DDR5, MOB8_1, MOB9_1, MSI, price_sync, ptmoffer, topp

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features Of MSI B650M Project Zero DDR5 AMD Motherboard

MSI B650M Project Zero Motherboard supports AMD Ryzen 7000 Series Desktop Processors and supports DDR5 Memory, up to 7600+(OC) MHz. 2.5G LAN and AMD Wi-Fi 6E Solution

Absolute Simplicity

B650M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card’s aesthetic design to be fully displayed.

Direct 10+2+1 Phases Power Design

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, B650M PROJECT ZERO is ready to sustain heavy gaming loadings.

Optimized For Water Cooling

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

Optimized PCB Solution

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

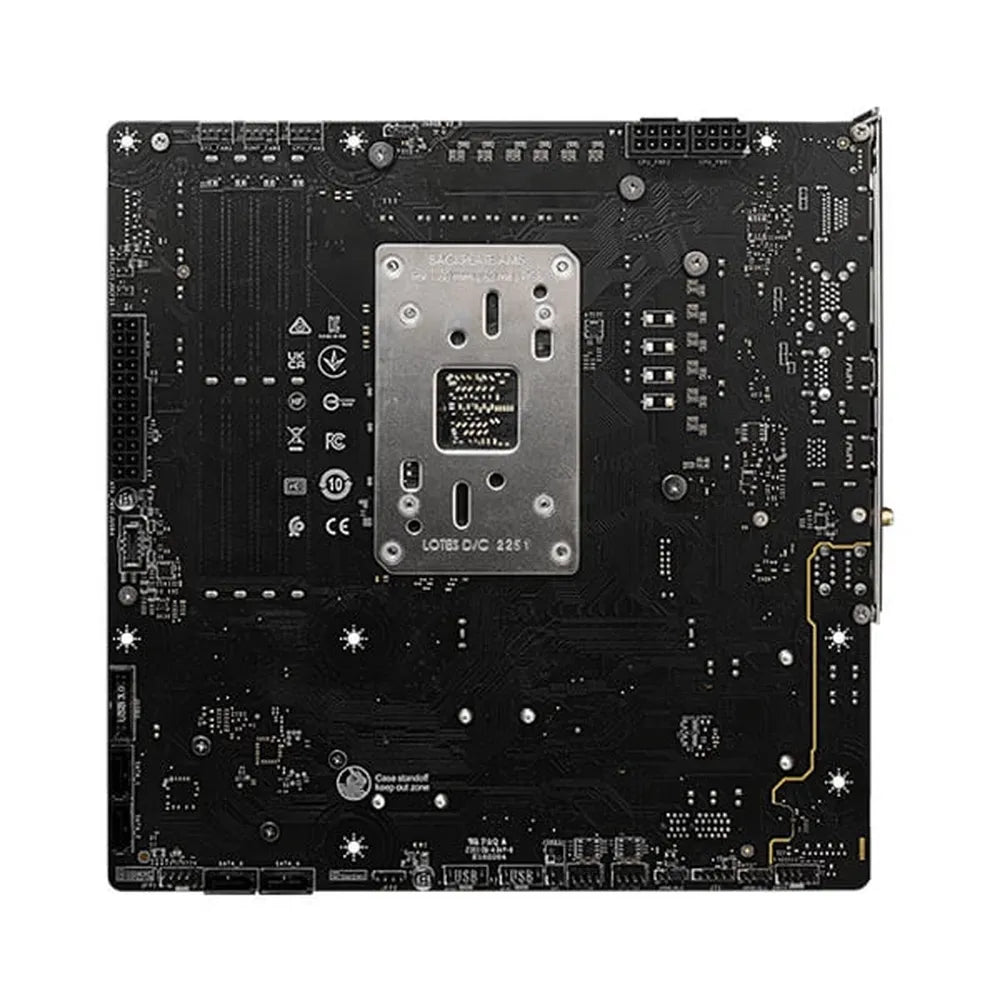

Back-Connect Design

The B650M PROJECT ZERO features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.

Fast And Future-Ready Storage

MSI PROJECT ZERO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

Specifications Of MSI B650M Project Zero DDR5 AMD Motherboard

Model	B650M PROJECT ZERO
Chipset	AMD B650
CPU	Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7600+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics	1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

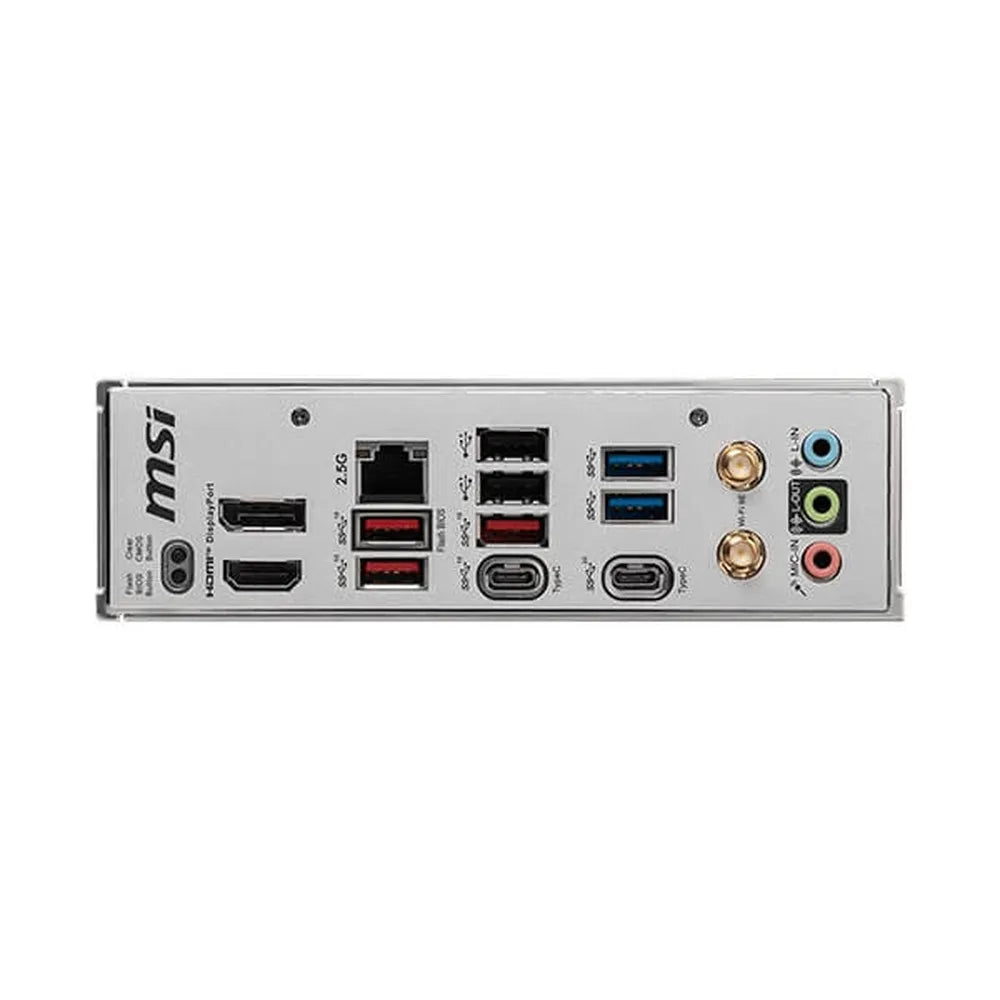

BACK PANEL PORTS	DisplayPort 2.5G LAN USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) Wi-Fi / Bluetooth Audio connectors Flash BIOS Button Clear CMOS Button HDMI™ USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX 243.84mmx243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
