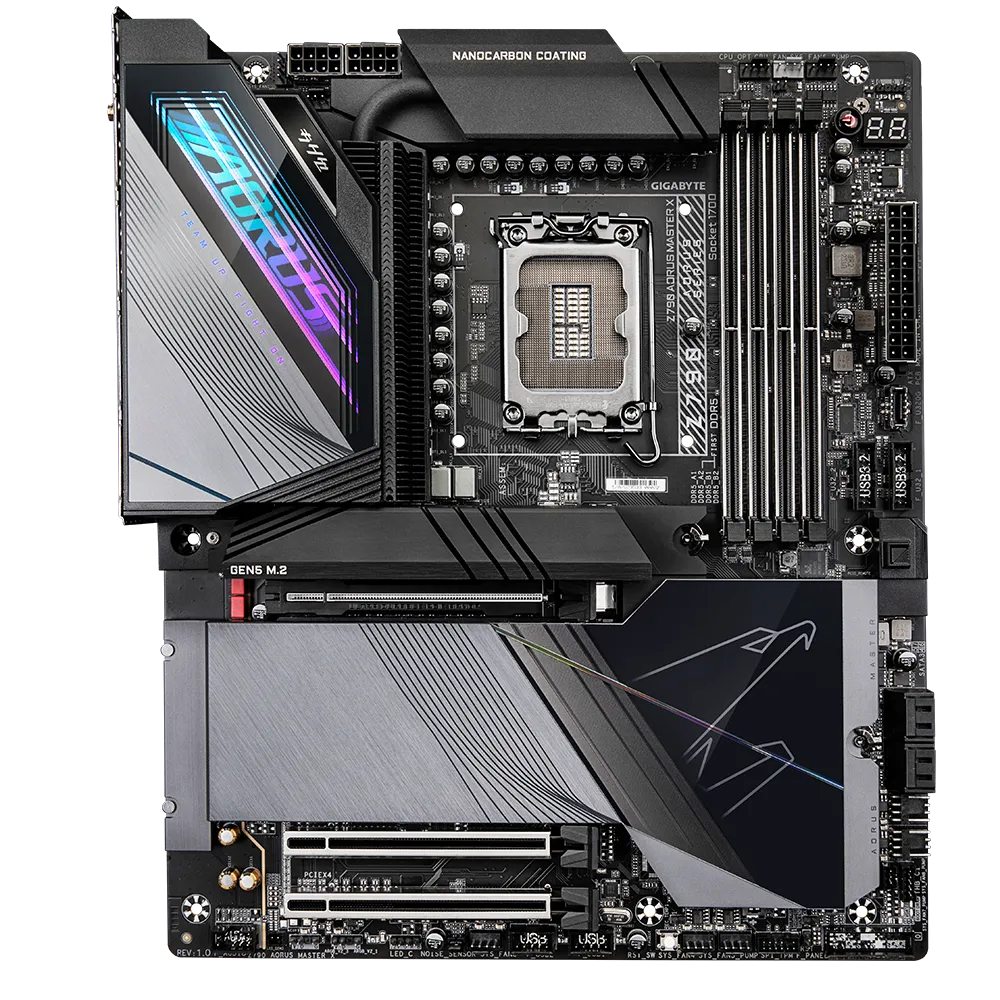

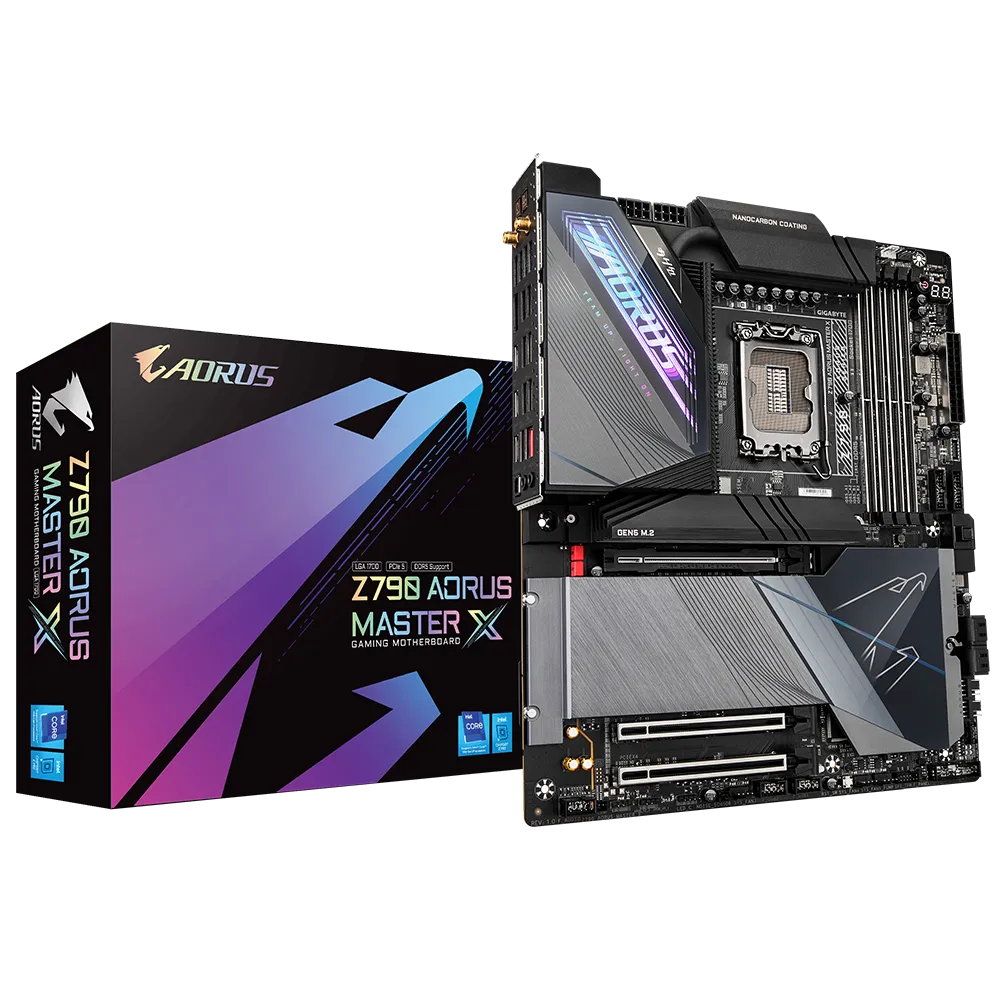

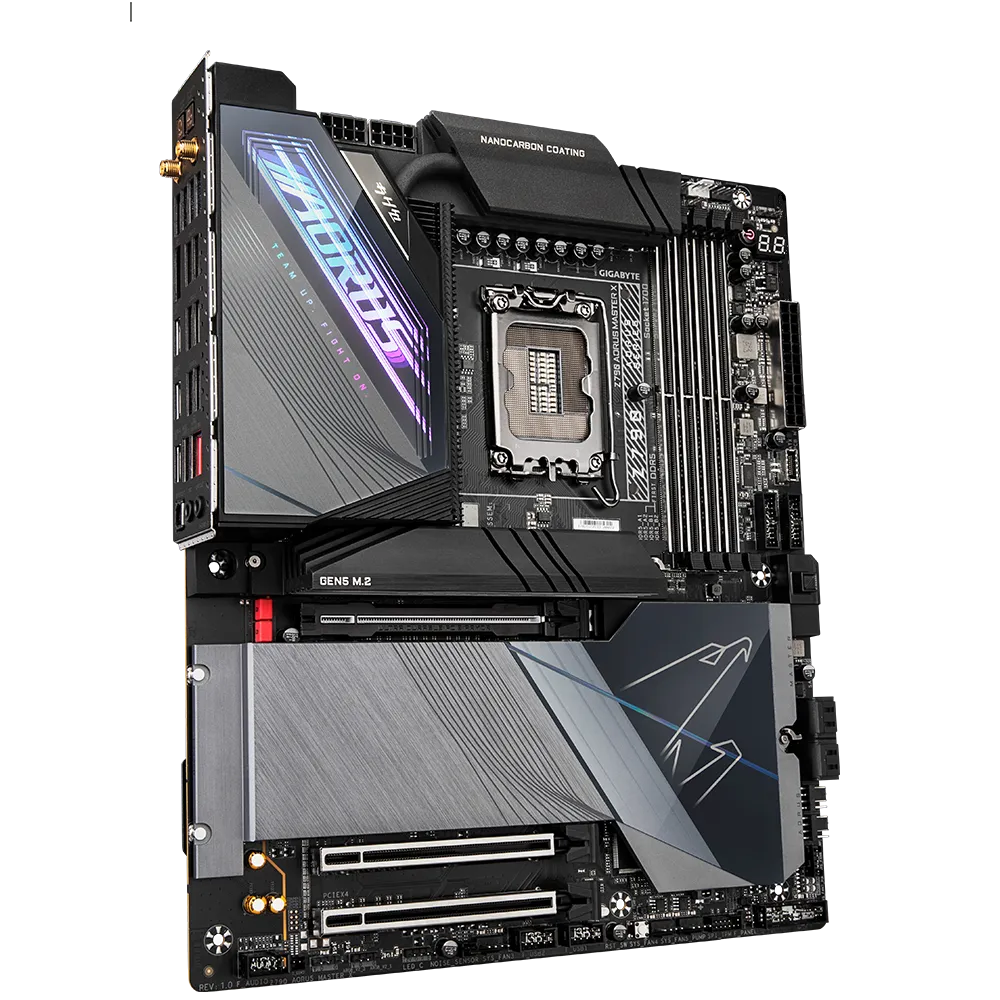

GIGABYTE Z790 AORUS MASTER X DDR5 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

GIGABYTE Z790 AORUS MASTER X DDR5 Intel Motherboard

360˚

- 21%

Motherboard

GIGABYTE Z790 AORUS MASTER X DDR5 Intel Motherboard

Rs. 72,999.00 Rs. 57,370.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : gigabyte-z790-aorus-master-x-motherboard

Tags : 10koffer, CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, Important_Product, MOB10_ARGB, MOB11_10, MOB12_1, MOB13_Gen1, MOB14_Gen1, MOB15_Black, MOB16_0, MOB17_2, MOB18_0, MOB19_1, MOB1_Z790, MOB20_0, MOB21_0, MOB22_1, MOB23_75, MOB24_Intel Motherboard, MOB2_ATX, MOB3_LGA1700, MOB4_192, MOB5_4800, MOB6_4, MOB7_DDR5, MOB8_1, MOB9_1, ptmoffer

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features Of GIGABYTE Z790 AORUS MASTER X DDR5 Intel Motherboard

Supports Intel® Core™ 14th and 13th processors
Digital direct 20+1+2 phases VRM solution
GIGABYTE Z790 AORUS MASTER X DDR5：4*DIMMs with XMP 3.0 memory module support
PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click：M.2 heatsinks with screwless design
EZ-Latch Plus：PCIe 5.0 x16 slot & M.2 slots with quick release design
UC BIOS：User-Centred intuitive UX with Quick Access function
Ultra-Fast Storage：5*M.2 slots, including 1* PCIe 5.0 x4
Efficient Overall Thermal：VRM Thermal Armor Fins-Array & M.2 Thermal Guard XL
Fast Networking：10GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
Extended Connectivity ：DP, Front USB-C® 10Gb/s, Front & Dual Rear USB-C® 20Gb/s
DTS:X® Ultra Audio：ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC

Performance

Twin Digital VRM design leverages 20 VCORE phases and 105A Power Stage to ensure electrical throughput that can handle 12th, 13th, and 14th Gen Intel Core, Pentium, and Celeron processors as well as extreme overclocking. DDR5 XMP overclocking boosts RAM up to 8266 MHz for enhanced multitasking and rendering performance.

Enhanced Thermal Design

Designed to maintain thermal performance and prevent system throttling and utilizing GIGABYTE VRM Thermal Armor Fins-Array technology, the AORUS MASTER X’s fully covered MOSFET heat sink, M.2 Thermal Guard, 8-layer 2x copper PCB, vent holes, and Smart Fan6 application work together to ensure that onboard components are safe under heavy loads. Smart Fan6 application gives users the ability to monitor and operate connected fans to assist with cooling capabilities.

Front Panel USB-C Connector

The front and back USB-C 3.2 Gen 2×2 ports provide up to 20 Gb/s throughput while connected to USB 3.2 compliant peripherals. With the USB Type-C connector, users can enjoy the flexibility of a reversible connection to access and store massive amounts of data rapidly.

RGB Fusion

With an array of RGB headers, you can use GIGABYTE’s RGB Fusion and Control Center software to customize your rig with a wide range of colors and lighting effects, turning your rig into the centerpiece of your gaming room.

Intuitive System Customization

UEFI BIOS settings can be easily accessed and allow you to fine-tune your performance profile with a reimaged UX, Quick Access function, PerfDrive technology, and BIOS Cooling. A multi-key function reset button can be reconfigured to other functions within the BIOS to meet different user scenarios such as acting as an RGB switch, boot directly to BIOS, and enable Safe Mode. You also get access to various modes that unlock the potential of your processor including Optimization, Spec Enhance, Instant 6GHz+, and E-Core Disable modes.

Ultra Durable

Sporting an easy DIY design, the AORUS MASTER X provides you with several enhancements that make the installation of components a breeze. PCIe EZ-Latch Plus provides quick removal for your graphics card and Q-Flash Plus enables you to update the BIOS settings with only a few power cables, RAM, and processor. You also get strong and reliable enhancements including a reinforced PCIe UD Slot X, Memory UD Slot D5, M.2 UD Slot PG5, UD Nanocarbon Backplate, and UD Power Connector.

PCB Crafting Xtra layers for excellent players

As the very foundation of the motherboard, the PCB plays a subtle yet critical role in the capabilities. No gamers should overlook the details lie within the PCB layers.

8-Layer PCB

Enables dense integration, signal quality, power integrity, and low EMI for high-performance systems.

2X Copper Enhancement

Enhances system performance with improved heat dissipation, power handling, and seamless overclocking support.

56% Lower Dissipation Factor

Elevate signal integrity in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.

Specifications Of GIGABYTE Z790 AORUS MASTER X DDR5 Intel Motherboard

Model
Brand	GIGABYTE
Model	Z790 AORUS MASTER X
Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Support for the 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors* * Please refer to "CPU Support List" for more information.
Chipsets
Chipset	Intel Z790 Express Chipset
Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Expansion Slots
PCI Express 5.0 x16	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio. ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/4/5.1-channel Support for S/PDIF Out * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.
Audio Channels	5.1 Channels
Onboard LAN
LAN Chipset	Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	10Gbps
Wireless LAN	Wi-Fi 7 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Bluetooth	Yes

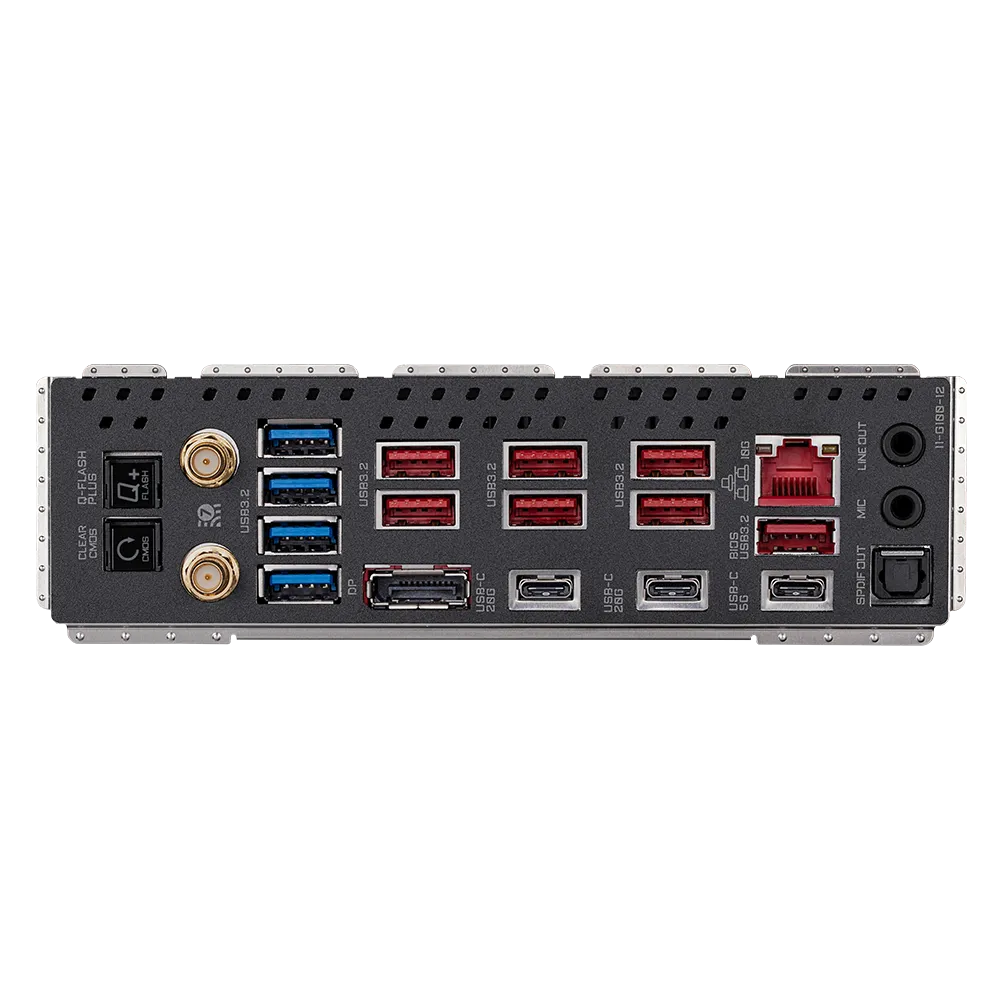

Rear Panel Ports
Back I/O Ports	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB Type-C ports, with USB 3.2 Gen 2x2 support 7 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points
Physical Spec
Form Factor	Extended ATX
Dimensions (W x L)	30.5cm x 26.0cm
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11	Supported
