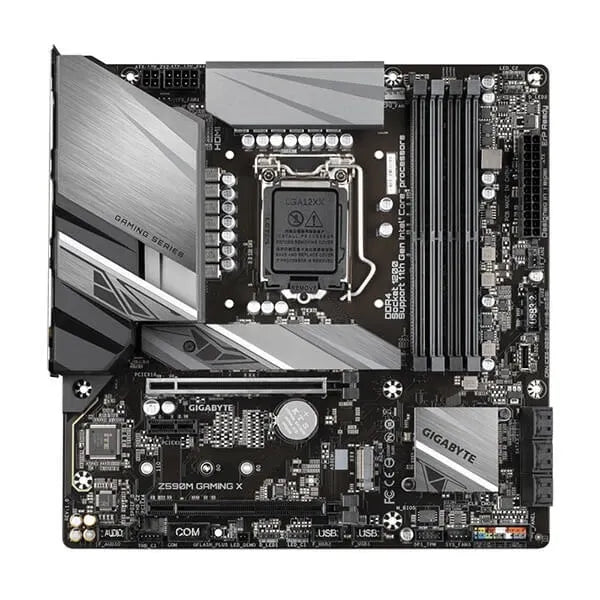

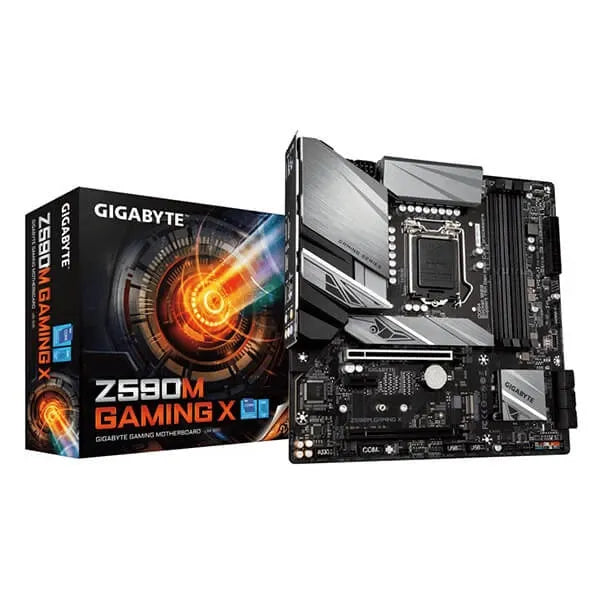

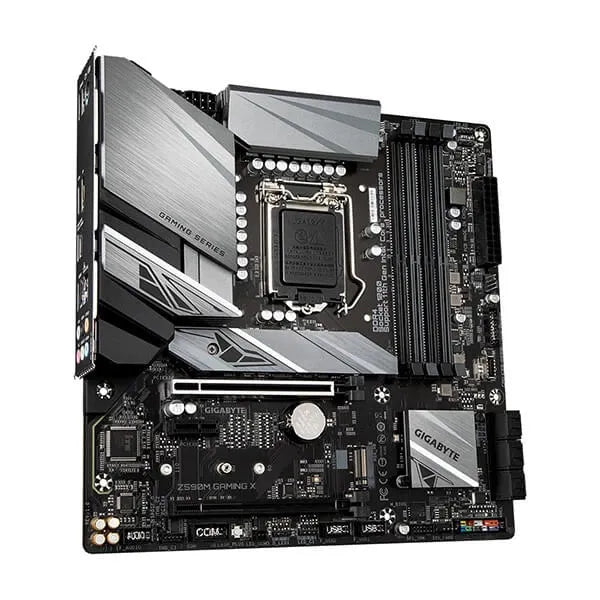

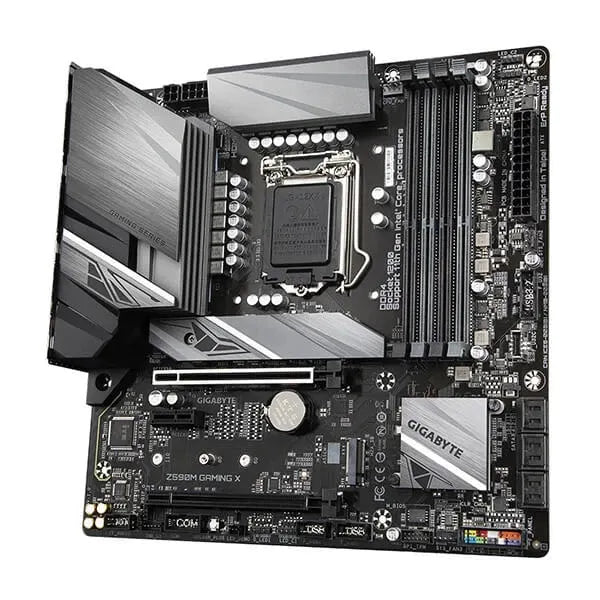

GIGABYTE Z590M LGA1200 Gaming DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

GIGABYTE Z590M LGA1200 Gaming DDR4 Intel Motherboard

360˚

- -109%

Motherboard

GIGABYTE Z590M LGA1200 Gaming DDR4 Intel Motherboard

Rs. 17,295.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : Gigabyte-z590m

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_None, MOB11_2, MOB12_1, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_0, MOB17_6, MOB18_5, MOB19_0, MOB1_Z590, MOB20_2, MOB21_2, MOB22_1, MOB23_55, MOB24_Intel Motherboard, MOB2_MATX, MOB3_LGA1200, MOB4_128, MOB5_5333, MOB6_4, MOB7_DDR4, MOB8_2, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte Z590M Gaming DDR4

Supports 11th and 10th Gen Intel Core Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 12+1 Phases Digital VRM Solution with 60A DrMOS
Shielded Memory Routing for Better Memory Overclocking
Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
Fast 2.5GbE LAN with Bandwidth Management
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting devices
Pre-installed IO Shield for easy and quick installation
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Direct 8+1 Phases Digital VRM Solution with DrMOS

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

Digital PWM Controller to deliver appropriate voltage to the CPU.
Direct 8+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 400 Amps current in total.
All-solid capacitors to improve transient response and minimize oscillation.
8 Solid Pin CPU Power Connector.

Dual PCIe 4.0/3.0 x4 M.2 Connectors

GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.

RGB FUSION 2.0

GIGABYTE Z590M LGA1200 Gaming DDR4, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With Z590M Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.

Solid Pin Power Connectors

Z590 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power connector advantages

Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan

Refreshed BIOS

The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

Specifications of Gigabyte Z590M Gaming DDR4

CPU	LGA1200 package:
	1. 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
	2. 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
	* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
	3. L3 cache varies with CPU
	(Please refer to "CPU Support List" for more information.)
Chipset	1. Intel Z590 Express Chipset
Memory	1. 11th Generation Intel Core i9/i7/i5 processors:
	Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
	2. 10th Generation Intel Core i9/i7 processors:
	Support for DDR4 2933/2666/2400/2133 MHz memory modules
	3. 10th Generation Intel Core i5/i3 /Pentium/Celeron processors:
	Support for DDR4 2666/2400/2133 MHz memory modules
	4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
	5. Dual channel memory architecture
	6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	8. Support for Extreme Memory Profile (XMP) memory modules
	(Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel HD Graphics support:
	1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version, HDCP 2.3.
	2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.3.
	(Supported graphics specifications may vary depending on CPU or graphics card used.)
Audio	1. Realtek Audio codec
	2. High Definition Audio
	3. 2/4/5.1/7.1-channel
	4. Support for S/PDIF Out
LAN	1. Realtek 2.5GbE LAN chip ( 2.5 Gbit/ 1 Gbit/100 Mbit)
Expansion Slots	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
	(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
	* Supported by 11th Generation processors only.
	2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
	3. 2 x PCI Express x1 slots
	(The PCIEX4 and PCI Express x1 slots conform to PCI Express 3.0 standard)
Multi-Graphics Technology	1. Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)*
	*Supported by 11th Generation processors only.
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SB)
	2. 6 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, RAID 5, and RAID 10
	* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
	Intel Optane Memory Ready
USB	Chipset:
	1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
	2. 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
	3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	4. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	5. 2 x USB 2.0/1.1 ports available through the internal USB header
	Chipset+USB 2.0 Hub:
	1. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 1 x 4-pin ATX 12V power connector
	3. 1 x 8-pin ATX 12V power connector
	4. 1 x CPU fan header
	5. 3 x system fan headers
	6. 2 x addressable LED strip headers
	7. 2 x RGB LED strip headers
	8. 6 x SATA 6Gb/s connectors
	9. 2 x M.2 Socket 3 connector
	10. 1 x front panel header
	11. 1 x front panel audio header
	12. 1 x S/PDIF Out header
	13. 1 x USB Type-C header, with USB 3.2 Gen 1 support
	14. 1 x USB 3.2 Gen 1 header
	15. 2 x USB 2.0/1.1 headers
	16. 2 x Thunderbolt add-in card connectors
	17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	18. 1 x serial port header
	19. 1 x Clear CMOS jumper
	20. 1 x Q-Flash Plus button
	All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	1. 1 x PS/2 keyboard/mouse port
	2. 4 x USB 3.2 Gen 1 ports
	3. 1 x DisplayPort
	4. 1 x HDMI port
	5. 1 x USB 3.2 Gen 2 Type-A port (red)
	6. 1 x USB Type-C port, with USB 3.2 Gen 2 support
	7. 1 x RJ-45 port
	8. 6 x audio jacks
I/O Controller	1. iTE I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Fan fail warning
	5. Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1. 1 x 256 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	RGB Fusion
	Smart Backup
	System Information Viewer
	2. Support for Q-Flash Plus
	3. Support for Q-Flash
	4. Support for Xpress Install
Bundled Software	1. Norton Internet Security (OEM version)
	2. Realtek 8125 Gaming LAN Bandwidth Control Utility
Operating System	1. Support for Windows 10 64-bit
Form Factor	1. Micro ATX Form Factor; 24.4cm x 24.4cm
