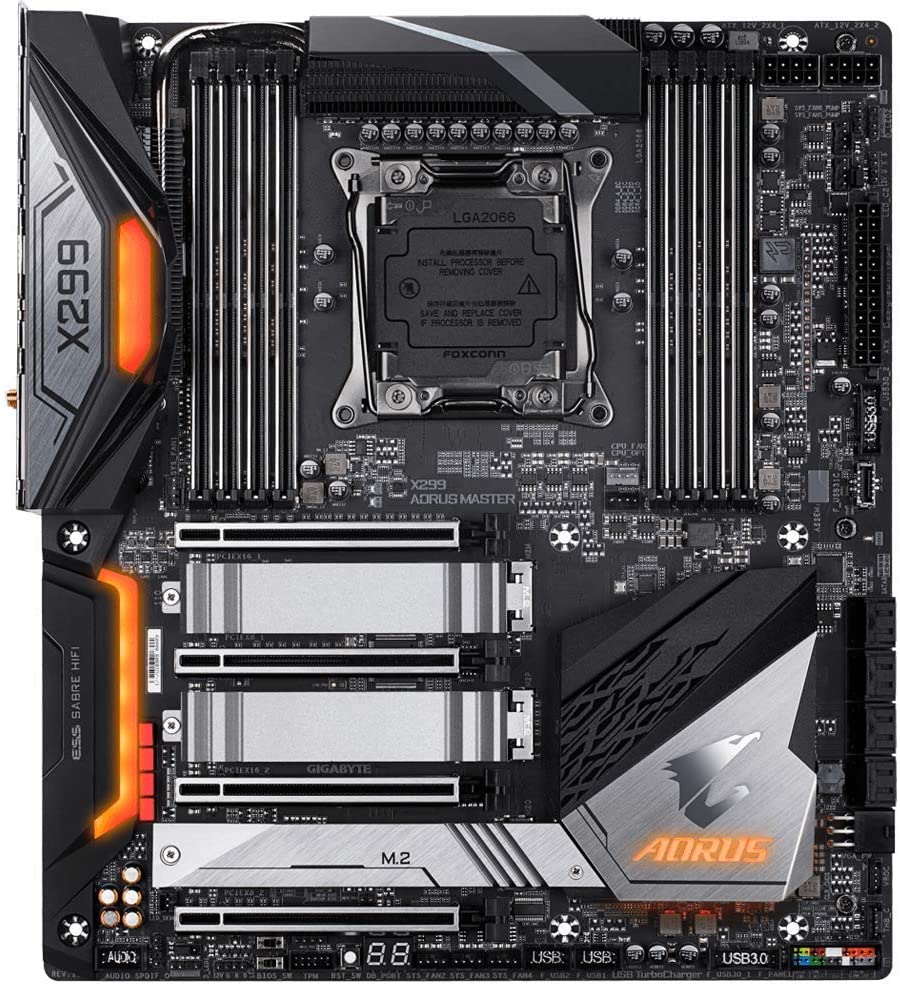

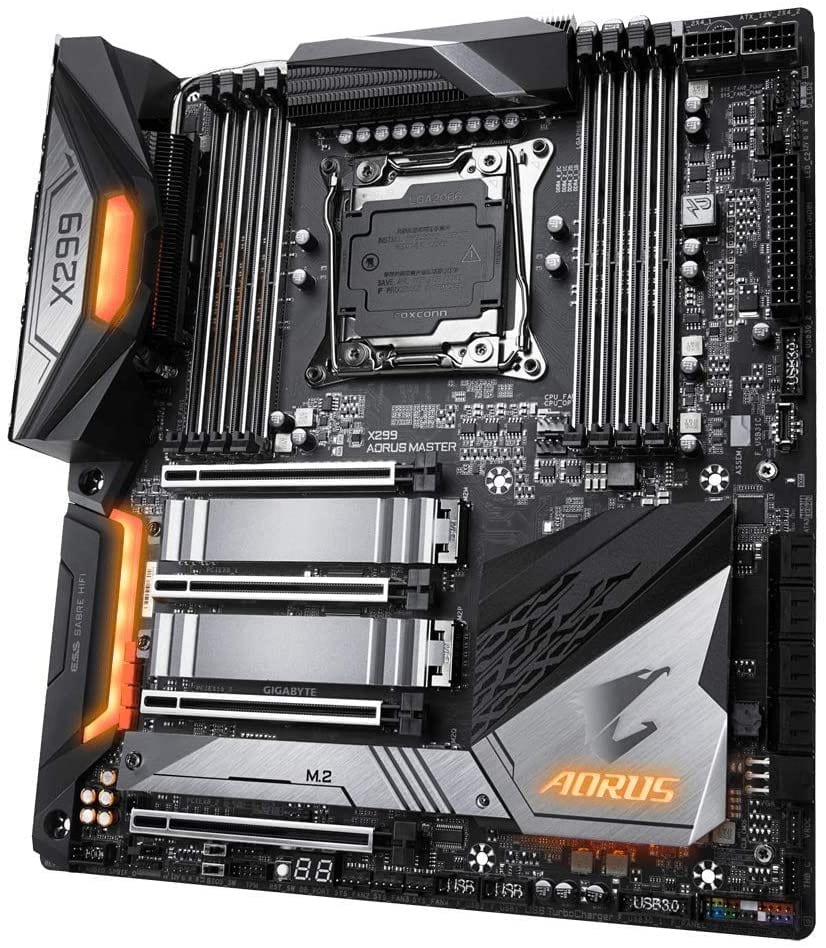

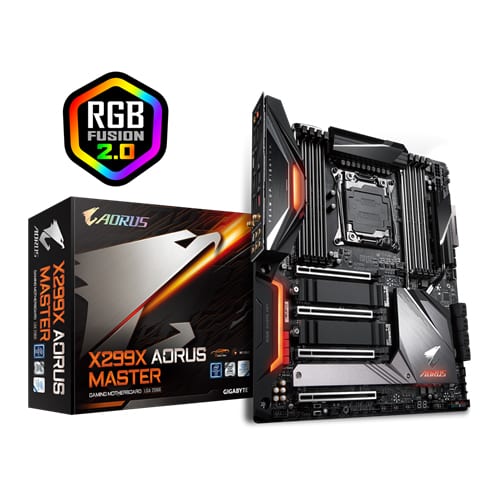

GIGABYTE X299X Aorus Master DDR4 Intel Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

GIGABYTE X299X Aorus Master DDR4 Intel Motherboard

360˚

- 15%

Motherboard

GIGABYTE X299X Aorus Master DDR4 Intel Motherboard

Rs. 51,500.00 Rs. 43,515.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : Gigabyte-X299X-AORUS-MASTER-

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_RGB, MOB11_4, MOB12_0, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_1, MOB17_8, MOB18_9, MOB19_1, MOB1_X299, MOB20_2, MOB21_2, MOB22_0, MOB23_100, MOB24_Intel Motherboard, MOB2_EATX, MOB3_LGA2066, MOB4_256, MOB5_4333, MOB6_8, MOB7_DDR4, MOB8_3, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of Gigabyte X299X Aorus Master Motherboard

Supports Intel^® Core™ X-series Processor Family
Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs
Intel^® Optane™ Memory Ready
12 Phases IR Digital VRM Solution with 70A Power Stage
Onboard Intel^® WiFi 6 802.11ax 2T2R & BT 5 with AORUS Antenna
130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220 and WIMA Audio Capacitors
Onboard AQUANTIA 5GbE BASE-T LAN and Intel^® Gigabit LAN with cFosSpeed
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION 2.0 supported with Multi-Zone Addressable LED Light Show Design, support Addressable LED & RGB LED Strips
Smart Fan 5 features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Front USB 3.2 Gen2 Type-C™ Header
Q-Flash Plus update BIOS without installing CPU, Memory and Graphics card
Supports 4 Way Dual Wide PCIe Slots

Specifications of GIGABYTE X299X Aorus Master DDR4 Intel Motherboard

CPU	1. Support for Intel® Core™ i7-7800X and above X series processors/Intel® Core™ i9 X series processors in the LGA2066 package
	2. L3 cache varies with CPU
	(Please refer “CPU Support List” for more information.)
Chipset	1. Intel®X299 Express Chipset
Memory	Intel® Core™ X series 48-lane processors:
	1. 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
	2. Support for DDR4 2933/2666/2400/2133 MHz memory modules
	Intel® Core™ X series 44-lane/28-lane processors:
	1. 8 x DDR4 DIMM sockets supporting up to 128 GB (16 GB single DIMM capacity) of system memory
	2. Support for DDR4 2666/2400/2133 MHz memory modules
	4 channel memory architecture
	Support for non-ECC Un-buffered DIMM memory modules
	Support for Extreme Memory Profile (XMP) memory modules
	(Please refer “Memory Support List” for more information.)
Audio	1. Realtek® ALC1220-VB codec
	* The front panel line out jack supports DSD audio.
	2. ESS SABRE9218 DAC chip
	3. High Definition Audio
	4. 2/4/5.1/7.1-channel
	5. Support for S/PDIF Out
LAN	1. 1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1000 Mbit/100 Mbit) (LAN1)
	2. 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN2)
Wireless Communication module	1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
	2. BLUETOOTH 5.0
	3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
	* Actual data rate may vary depending on environment and equipment.
Expansion Slots	Intel® Core™ X series 48-lane processors:
	1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
	2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
	* The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.
	Intel® Core™ X series 44-lane processors:
	1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
	2. 1 x PCI Express x16 slot, running at x8 (PCIEX8_1)
	3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)
	* The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode.
	Intel® Core™ X series 28-lane processors:
	1. 1 x PCI Express x16 slot, running at x16 (PCIEX16_1)
	2. 1 x PCI Express x16 slot, running at x8 (PCIEX16_2)
	3. 1 x PCI Express x16 slot, running at x4 (PCIEX8_2)
	* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
	(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
Multi-Graphics Technology	1. Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
	2. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Storage Interface	CPU:
	1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M)
	2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
	* The M2M and M2Q connectors become unavailable when an Intel® Core™ X series 28-lane processor is used.
	Chipset:
	1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P)
	8 x SATA 6Gb/s connectors
	Support for RAID 0, RAID 1, RAID 5, and RAID 10
	1. * The M2M connector must work with an Intel® VROC Upgrade Key to support RAID configuration.
	2. * Refer to “1-9 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.
	Intel® Optane™ Memory Ready
	1. * Only Intel® Core™ X series 48-lane processors support Intel® Optane™ Memory.
	Intel® VROC Ready
USB	Chipset 2 ASMedia® USB 3.2 Gen 2 Controllers:
	1. 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
	2. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
	3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	Chipset Realtek® USB 3.2 Gen 1 Hub:
	1. 2 x USB 3.2 Gen 1 ports on the back panel
	2. 2 x USB 2.0/1.1 ports on the back panel
	Chipset USB 2.0 Hub:
	1. 4 x USB 2.0/1.1 ports available through the internal USB headers
	Chipset:
	1. 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
	2. 2 x USB 2.0/1.1 ports available through the internal USB header
Internal I/O Connectors	1. 1 x 24-pin ATX main power connector
	2. 2 x 8-pin ATX 12V power connectors
	3. 1 x CPU fan header
	4. 1 x water cooling CPU fan header
	5. 4 x system fan headers
	6. 2 x system fan/water cooling pump headers
	7. 2 x addressable LED strip headers
	8. 2 x RGB LED strip headers
	9. 3 x M.2 Socket 3 connectors
	10. 8 x SATA 6Gb/s connectors
	11. 1 x Intel® VROC Upgrade Key header
	12. 1 x front panel header
	13. 1 x front panel audio header
	14. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
	15. 2 x USB 3.2 Gen 1 headers
	16. 3 x USB 2.0/1.1 headers
	17. 1 x noise detection header
	18. 1 x Thunderbolt™ add-in card connector
	19. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
	20. 1 x power button
	21. 1 x reset button
	22. 2 x temperature sensor headers
	23. 1 x Clear CMOS jumper
	24. 2 x BIOS switches
Back Panel Connectors	1. 1 x Q-Flash Plus button
	2. 1 x Clear CMOS button
	3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
	4. 1 x USB 3.2 Gen 2 Type-A port (red)
	5. 6 x USB 3.2 Gen 1 ports
	6. 2 x USB 2.0/1.1 ports
	7. 2 x RJ-45 ports
	8. 2 x SMA antenna connectors (2T2R)
	9. 1 x optical S/PDIF Out connector
	10. 5 x audio jacks
I/O Controller	1. iTE® I/O Controller Chip
H/W Monitoring	1. Voltage detection
	2. Temperature detection
	3. Fan speed detection
	4. Water cooling flow rate detection
	5. Overheating warning
	6. Fan fail warning
	7. Fan speed control
	* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
	8. Noise Detection
BIOS	1. 2 x 128 Mbit flash
	2. Use of licensed AMI UEFI BIOS
	3. Support for DualBIOS™
	4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	1. Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	AutoGreen
	Cloud Station
	EasyTune
	Easy RAID
	Fast Boot
	Game Boost
	Platform Power Management
	RGB Fusion
	Smart Backup
	Smart Keyboard
	Smart Survey
	System Information Viewer
	USB Blocker
	USB TurboCharger
	2. Support for Q-Flash Plus
	3. Support for Q-Flash
	4. Support for Xpress Install
Bundled Software	1. Norton® Internet Security (OEM version)
	2. cFosSpeed
	3. XSplit Gamecaster Broadcaster (12 months license)
Operating System	1. Support for Windows 10 64-bit
Form Factor	1. E-ATX Form Factor; 30.5cm x 26.9cm
