GIGABYTE TRX40 Aorus Master DDR4 AMD Motherboard

360˚

- 16%

Motherboard

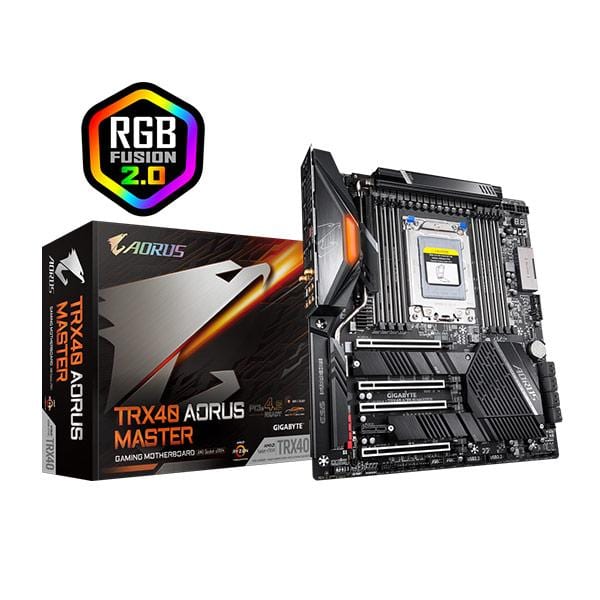

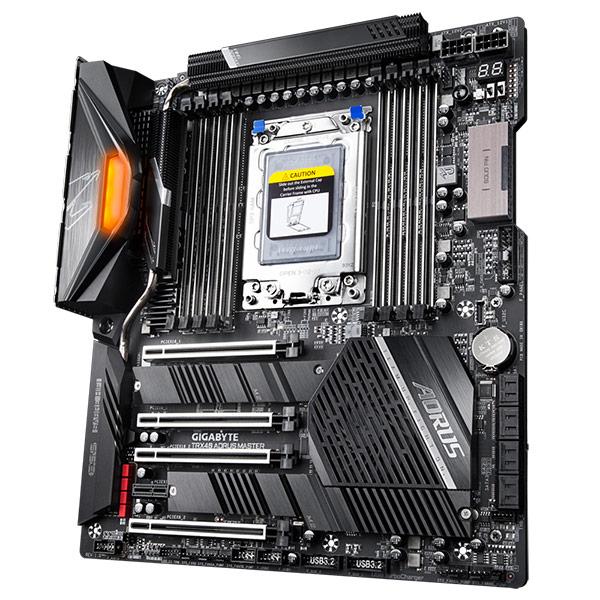

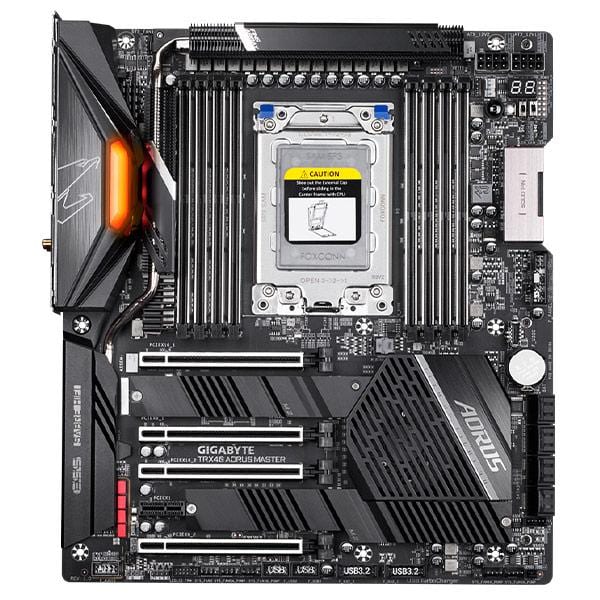

GIGABYTE TRX40 Aorus Master DDR4 AMD Motherboard

Rs. 70,500.00 Rs. 58,518.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : GIGABYTE-TRX40-AORUS-MASTER

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_RGB, MOB11_4, MOB12_0, MOB13_Gen4, MOB14_Gen4, MOB15_Black, MOB16_1, MOB17_8, MOB18_7, MOB19_1, MOB1_TRX40, MOB20_2, MOB21_2, MOB22_1, MOB23_100, MOB24_AMD Motherboard, MOB2_EATX, MOB3_sTRX4, MOB4_256, MOB5_4400, MOB6_8, MOB7_DDR4, MOB8_3, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of Gigabyte TRX40 Aorus Master DDR4

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors
Quad Channel ECC/ Non-ECC Unbuffered DDR4, 8 DIMMs
16 3 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Design with Fins-Array Heatsink, Heatpipe with Extended Heatsink and NanoCarbon Baseplate
AQUANTIA® 5GbE LAN and Intel® GbE LAN with cFosSpeed
3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5
130dB SNR AMP-UP Audio with High-End ESS SABRE 9218 DAC, ALC1220-VB and WIMA Audio Capacitors
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection
Front & Rear USB 3.2 Gen 2 Type-C™ Header
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

Ultimate Power Design

To unleash the full potential of the 3rd Generation AMD Ryzen™ Threadripper™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, TRX40 AORUS MASTER is a true beast among motherboards.

Advanced Thermal Design

GIGABYTE TRX40 Aorus Master DDR4 reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink, Heatpipe and a thermal baseplate, to provide lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.

Ultimate Performance

TRX40 AORUS MASTER pushes the envelope once again by featuring Full PCIe 4.0 Design, delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.

Next Generation Connectivity

A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. TRX40 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed.

AORUS AESTHETICS

TRX40 AORUS MASTER features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.

HI-FI AUDIO SYSTEM

For enthusiasts, sound quality is just as essential to the gaming experience. TRX40 AORUS MASTER is equipped with several audiophile level components such as ESS SABRE DAC and WIMA capacitors to provide a superb audio experience.

Specifications of Gigabyte TRX40 Aorus Master DDR4

CPU	AMD Socket sTRX4: Support 3rd Generation AMD Ryzen™ Threadripper™ processors (Please refer "CPU Support List" for more information.)
Chipset	AMD TRX40
Memory	8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory Quad Channel memory architecture Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Audio	1 x Realtek® ALC4050H codec 1 x Realtek® ALC1220-VB codec (Rear audio) 1 x Realtek® ALC4050H codec 1 x ESS SABRE9218 DAC chips (Front audio) Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN	1 x Aquantia 5GbE LAN chip (5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (5GLAN) 1 x Intel® GbE LAN chip (10/100/1000 Mbit) (LAN)
Wireless Communication module	Intel® Wi-Fi 6 AX200 Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band BLUETOOTH 5.0 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Expansion Slots	2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 4.0 standard.)
Multi-Graphics Technology	Support for NVIDIA® Quad-GPU SLI™ and 3-Way/2-Way NVIDIA® SLI™ technologies Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
Storage Interface	Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q) Integrated in the Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P) 8 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
USB	Integrated in the CPU: 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Integrated in the Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset 2 USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C™ port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x GIGABYTE add-in card connector 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 2 x BIOS switches 2 x temperature sensor headers 1 x Clear CMOS jumper Voltage Measurement Points

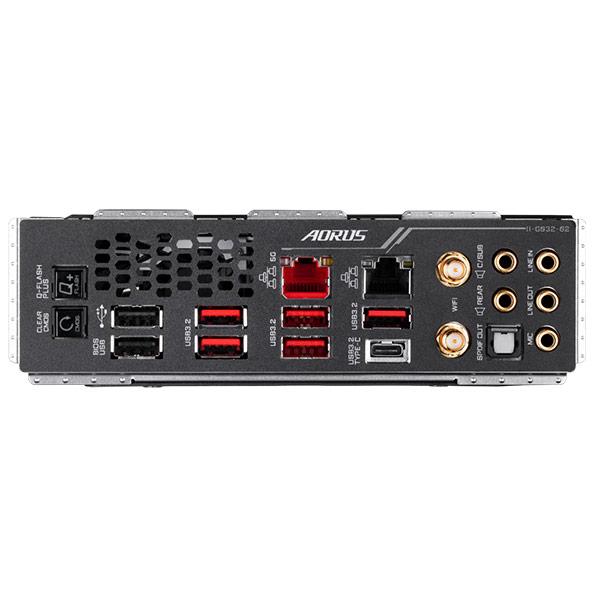

Back Panel Connectors	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x USB Type-C™ port, with USB 3.1 Gen 2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster Broadcaster (12 months license)
Operating System	Support for Windows 10 64-bit
Form Factor	E-ATX Form Factor; 30.5cm x 26.9cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
