Description

Features of GIGABYTE GA-H81M-S ( Rev. 1.0) DDR3 Intel Motherboard

Supports 4th Generation Intel® Core™ processors
GIGABYTE Ultra Durable™ Technology
GIGABYTE UEFI BIOS
GIGABYTE GA-H81M-S On/Off Charge™ for USB devices
LAN with high ESD Protection
D-SUB port on rear panel
Solid capacitors for CPU VRM design

Specification of GIGABYTE GA-H81M-S ( Rev. 1.0) DDR3 Intel Motherboard

CPU	Support for Intel®Core™ i7 processors/Intel®Core™ i5 processors/Intel®Core™ i3 processors/Intel®Pentium®processors/Intel®Celeron®processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel®H81 Express Chipset
Memory	2 x DDR3 DIMM sockets supporting up to 16 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor - Intel®HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 1 GB
Audio	Realtek®ALC887 codec High Definition Audio 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Realtek®GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot(The PCI Express slots conform to PCI Express 2.0 standard.)
Storage Interface	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0~SATA3 1) 2 x SATA 3Gb/s connectors (SATA2 2~SATA2 3)
USB	Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x speaker header 2 x USB 2.0/1.1 headers 1 x chassis intrusion header 1 x Clear CMOS jumper

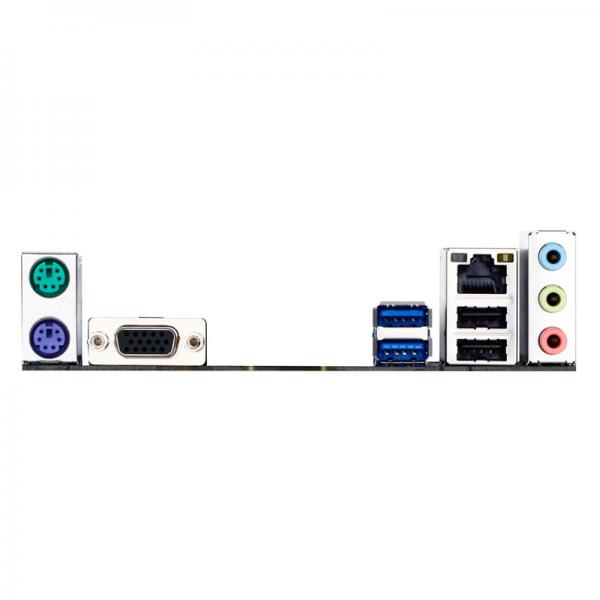

Back Panel Connectors	1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE®I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for Q-Flash Support for Xpress Install Support for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.@BIOSEasyTuneEZ SetupUSB Blocker Support for ON/OFF Charge
Bundle Software	Norton®Internet Security (OEM version)
Operating System	Support for Windows 10/8.1/8/7
Form Factor	Micro ATX Form Factor; 19.0cm x 17.0cm
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
