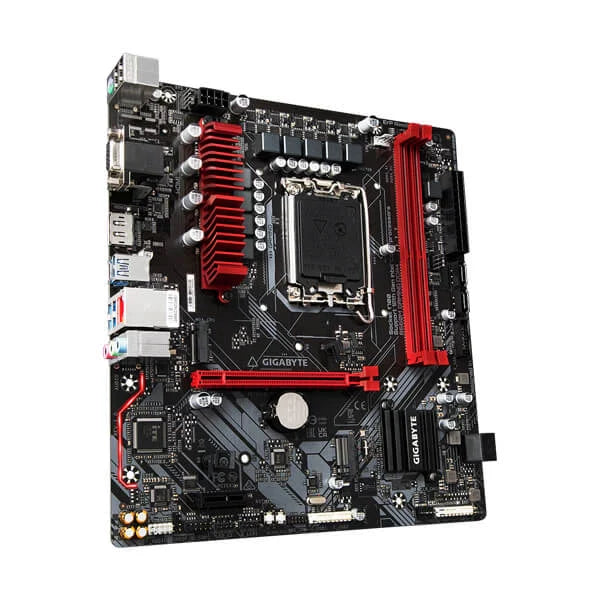

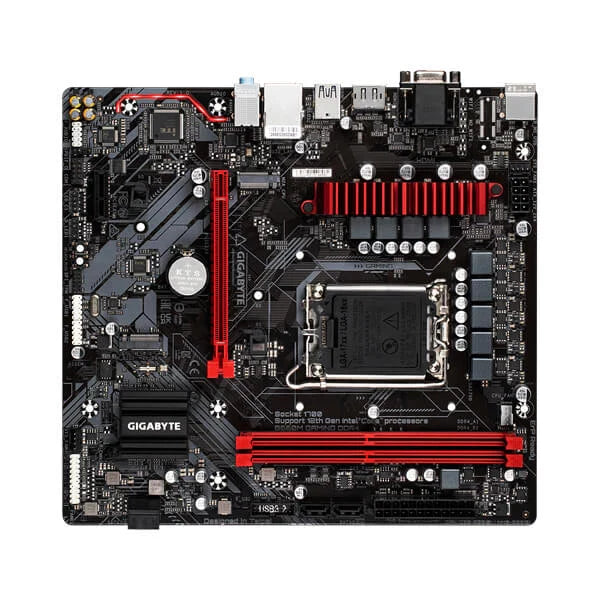

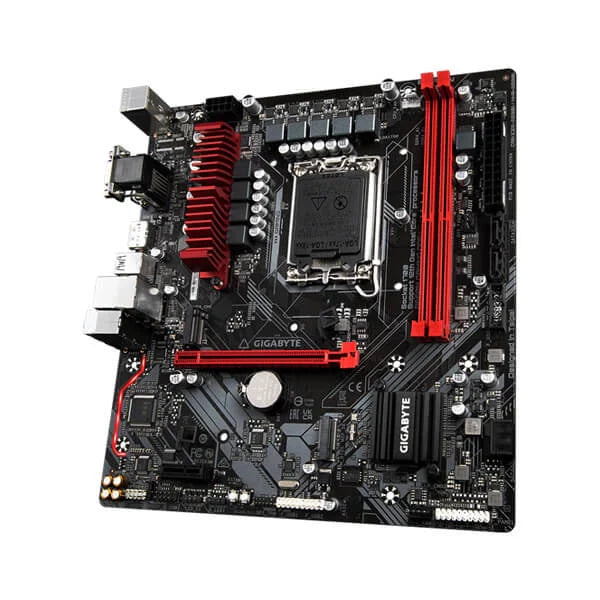

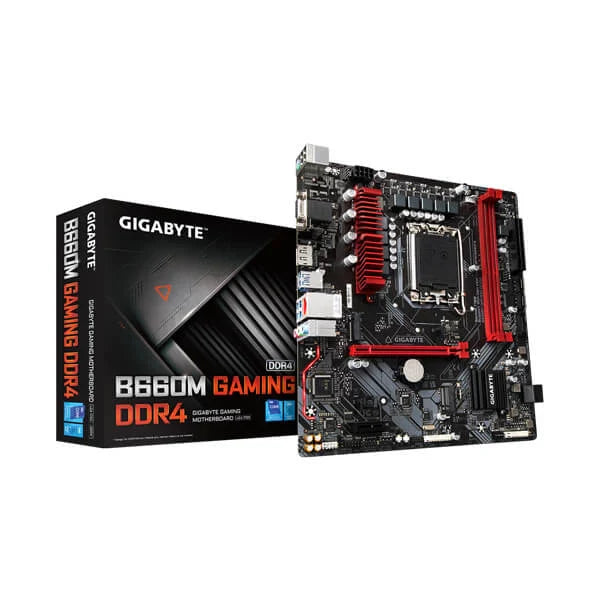

Features of GIGABYTE B660M Gaming DDR4 Intel Motherboard

Intel® B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, Rear USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus

1. Supports 12th Gen Intel® Core™ Series Processors
2. Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
3. 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink
4. Fast 2.5 GbE GAMING LAN with Bandwidth Management
5. Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2

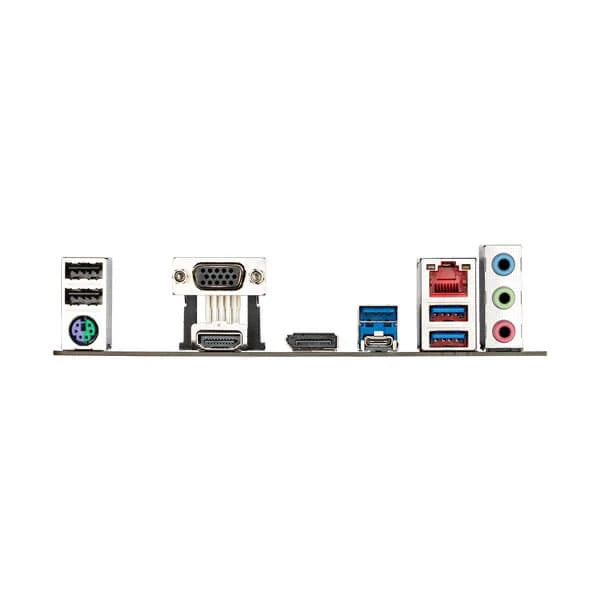

6. Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections
7. High Quality Audio Capacitors and Audio Noise Guard
8. RGB FUSION 2.0 supports Addressable LED & RGB LED Strips
9. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
10. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

1. 6+2+1 Phases Low RDS(on) MOSFETs
2. Solid capacitors to improve transient response and minimize oscillation
3. 8-pin Solid Pin CPU Power Connector

GIGABYTE B660M Gaming Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Support for DDR4 XMP Up to 5333MHz and Beyond

GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE otherboard.

High Current Support

Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection

Precision Control

Up to 6 temperature/fan speed control points for precise fan curve

Dual Curve Mode

Slope/Stair dual mode for different user scenario

Fan Stop

Fan can stop completely below users' specified temperature point

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Specifications of GIGABYTE B660M Gaming DDR4 Intel Motherboard
