Motherboard

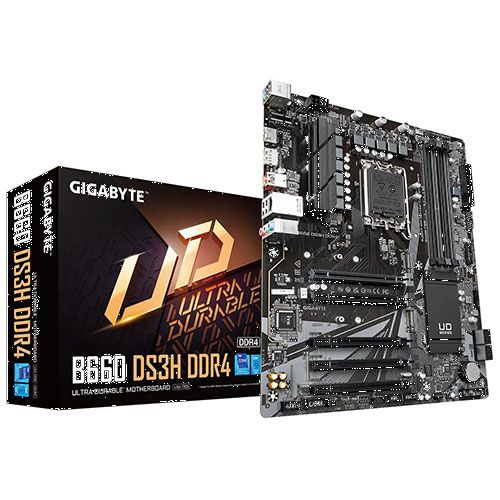

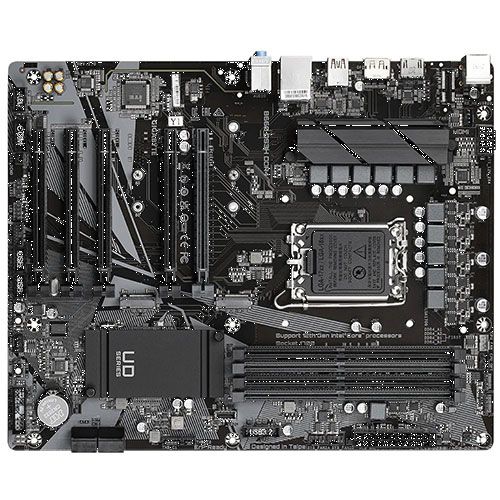

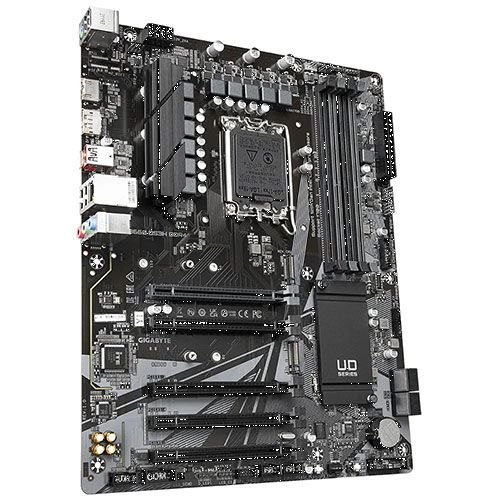

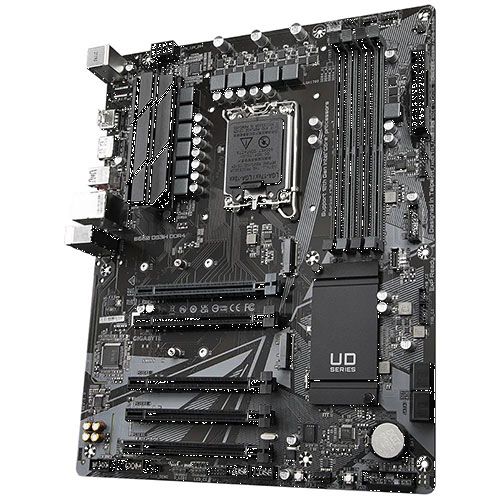

GIGABYTE B660 DS3H DDR4 Intel Motherboard
Rs. 21,990.00
Rs. 12,558.00
In Stock
Brand : Gigabyte
gigabyte-b660-ds3h-ddr4
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of GIGABYTE B660 DS3H DDR4 Intel Motherboard
Support for DDR4 XMP Up to 5333MHz and Beyond*
GIGABYTE is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!
RGB FUSION 2.0
GIGABYTE B660 DS3H DDR4 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
8+2+1 Phases Low RDS(on) MOSFETs
Solid capacitors to improve transient response and minimize oscillation
8-pin Solid Pin CPU Power Connector
Hybrid Cores Optimization
With new Intel Hybrid technology, GIGABYTE B660M DS3H exclusively creates two new ” CPU Upgrade ” in BIOS profiles to meet different users’ scenarios by adjusting P-Core and E-Core activation and voltage policy.
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE B660M DS3H provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
High Current Support
Each fan headers support PWM and DC fan and Water cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Specifications of GIGABYTE B660 DS3H DDR4 Intel Motherboard
| Model | |
| Brand | GIGABYTE |
| Model | B660M DS3H |
| Supported CPU | |
| CPU Socket Type | LGA1700 |
| CPU Type | 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Supported CPU Technologies | 12th Gen. Intel Core™ Processors |
| Chipsets | |
| Chipset | Intel® B660 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 Slot |
| Memory Standard | DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733 |
| Maximum Memory Supported | 128 GB |
| Channel Supported | 4 Channel |
| Expansion Slots | |
| PCI Express x1 | 4 x PCI Express x16 slots, running at x1 |
| PCI Slots | 5 |
| PCI Express x16 | 1 x PCI Express x16 slot, running at x16 |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| Onboard Video | |
| Onboard Video Chipset | Intel® B660 Express Chipset |
| Onboard Audio | |
| Audio Channels | 3.2/4/5.1/7.1-channel |
| Audio Chipset | Realtek audio codec |
| Onboard LAN | |
| LAN Chipset | Realtek GbE LAN chip |
| Max LAN Speed | 1 Gbps/100 Mbps |

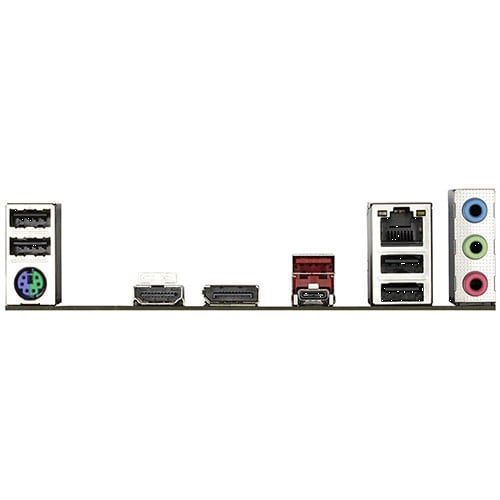

| Rear Panel Ports | |
| USB | 1 x USB Type-C port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports |
| Audio Ports | 3 Ports |
| PS/2 | 1 x PS/2 Keyboard Port |
| Video Ports | 1 x DisplayPort and 1 x HDMI |
| HDMI | 1 x HDMI |
| Onboard USB | |
| Onboard USB | N/A |
| Onboard 1394 | |
| Onboard 1394 | N/A |
| Physical Spec | |
| Form Factor | ATX Form Factor |
| Power Pin | 1 x 24-pin Main Power connector |
| Dimensions | NA |
