GIGABYTE B650 Aorus Elite AX Wifi DDR5 AMD Motherboard

360˚

- 20%

Motherboard

GIGABYTE B650 Aorus Elite AX Wifi DDR5 AMD Motherboard

Rs. 26,299.00 Rs. 20,995.00

Availability : Out Of Stock

Brand : Gigabyte

SKU : B650-Aorus-Elite-AX

Tags : CATP_GIGABYTE, CATQ_Motherboard, Gigabyte, MOB10_ARGB, MOB11_6, MOB12_1, MOB13_Gen4, MOB14_Gen5, MOB15_Black, MOB16_1, MOB17_4, MOB18_11, MOB19_1, MOB1_B650, MOB20_0, MOB21_0, MOB22_1, MOB23_75, MOB24_AMD Motherboard, MOB2_ATX, MOB3_AM5, MOB4_128, MOB5_6666, MOB6_4, MOB7_DDR5, MOB8_3, MOB9_1, price_sync

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Features of GIGABYTE B650 Aorus Elite AX Wifi DDR5 AMD Motherboard

AMD Socket AM5：Supports AMD Ryzen 7000 Series Processors
Unparalleled Performance：Twin 14+2+1 Phases Digital VRM Solution
Dual Channel DDR5：4SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Next Generation Storage：1xPCIe 5.0 x4 and 2xPCIe 4.0 x4 M.2 Connectors
Fully Covered Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP with GIGABYTE B650 Aorus Elite AX
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
7+7 phases parallel power design

Specifications of GIGABYTE B650 Aorus Elite AX Wifi DDR5 AMD Motherboard

CPU	AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset	AMD B650
Memory	Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
Onboard Graphics	1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB	CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

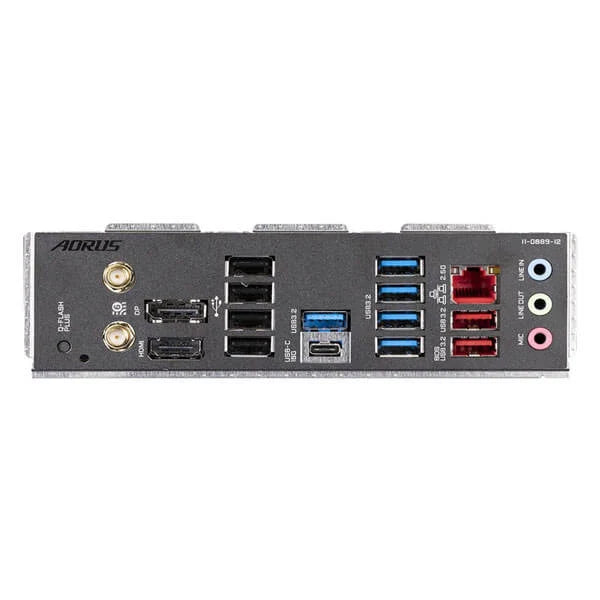

Back Panel Connectors	1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 5 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
