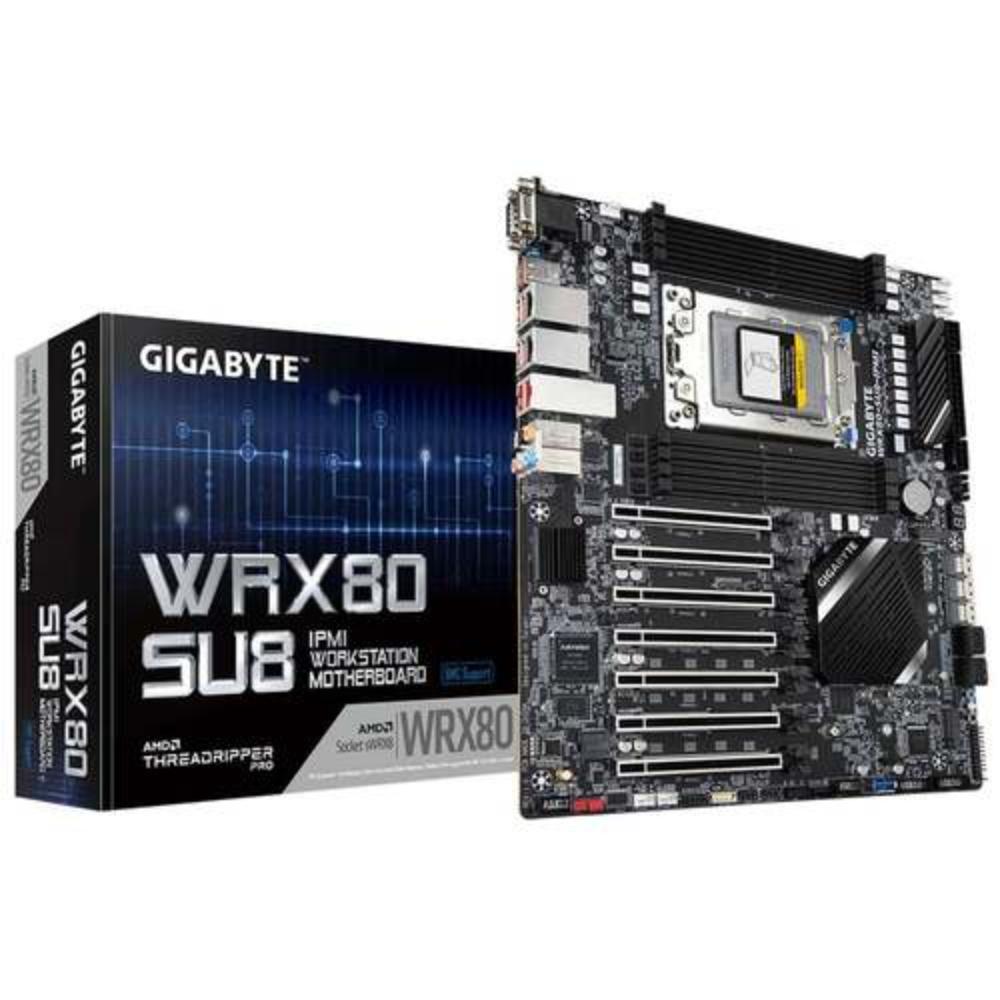

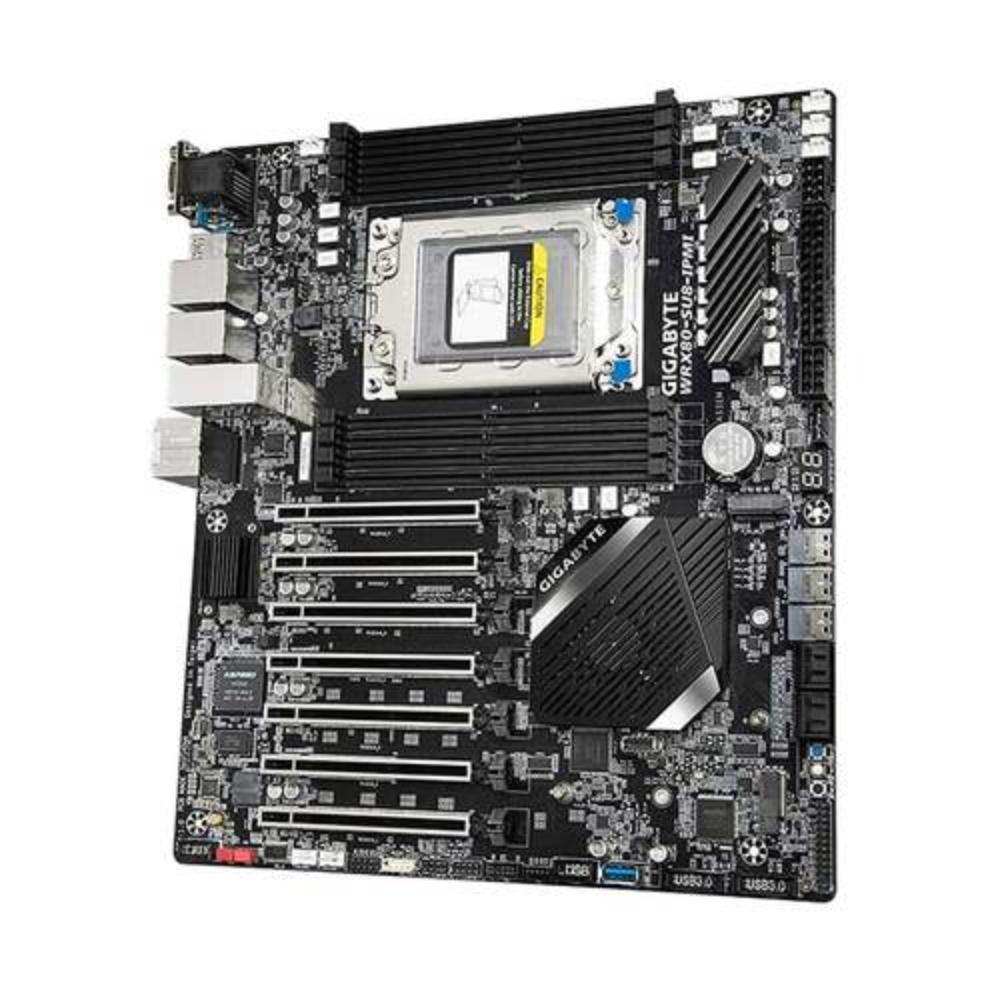

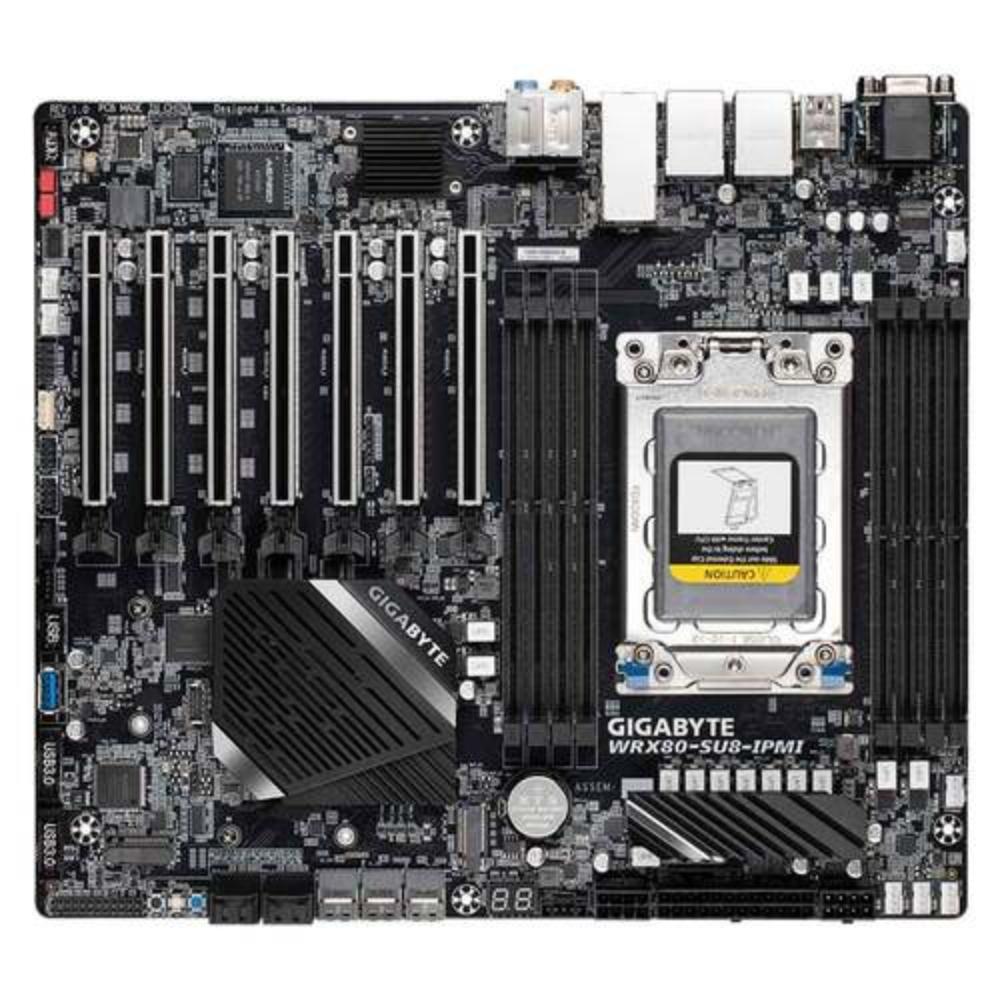

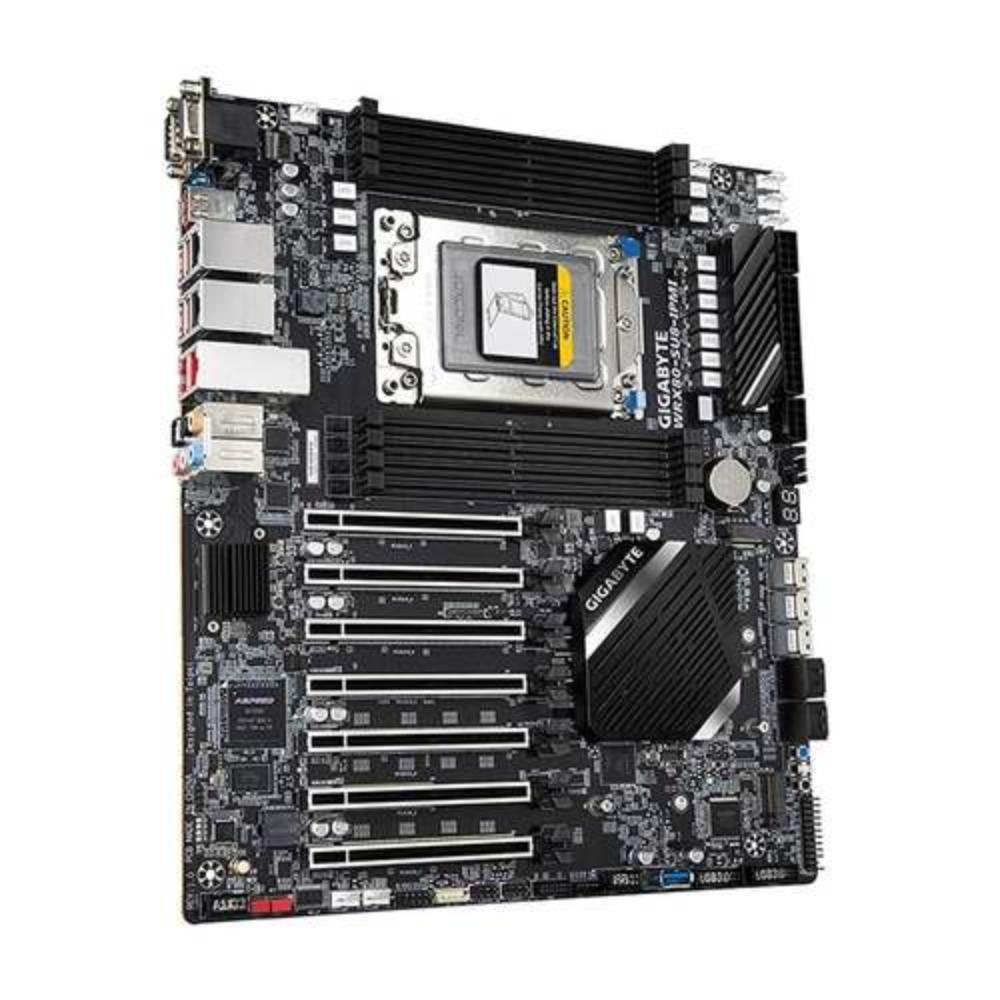

AMD WRX80 Motherboard with sWRX8 4094 Socket,
PCIe 4.0 Design

WRX80-SU8-IPMI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance on PCIe, M.2 and SlimSAS interface.

7 PCIe 4.0 Slots to enrich your various card configuration

With leadership architecture of AMD Ryzen™ Threadripper™ PRO, max out the 128 PCIe 4.0 lanes from 3000WX series with 6 PCIe 4.0 x16 and 1 PCIe 4.0 x8 slot that makes WRX80-SU8-IPMI the various card configuration and fulfill your content creation, deep learning and virtual machine application.

Multiple storage interface: 4 SATA3 Ports + 3 SlimSAS Ports

Plentiful NVMe and SATA interface can fulfill your hot and cold data processing requirement at once.

Carefully Selected Components

GIGABYTE’s passive components are meticulously selected to guarantee a super stable operating environment and allow the processors and the memory to deliver their maximum performance. With some of the longest service lifetimes in the industry, our server motherboards build on 30 years’ company-wide experience in motherboard design to attain the highest reliability levels.

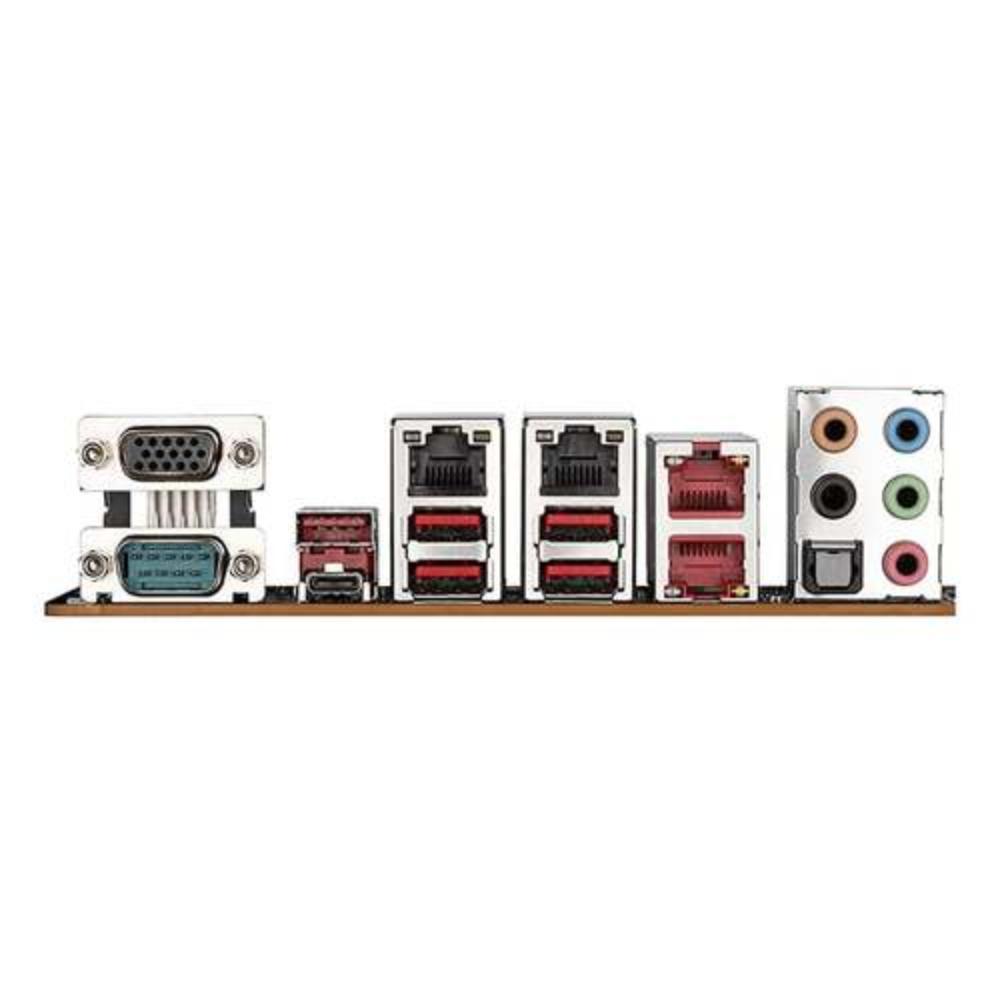

Dual Intel® Server 10GbE and GbE LAN

The Intel® X550AT2 is a high-performance, backward compatible with 10GBASE-T/ 5GBASE-T/ 2.5GBASE-T/ 1000BASE-T Ethernet Controller which is able to provide up to 10 GbE network connectivity as well as Intel SR-IOV feature. It is perfectly designed for media centers, workstations and virtual machine requirement.
The i210AT supports Windows server OS with fault tolerance, link aggregation, load balancing feature. The network interface is shared with IPMI management with NCSI. User can choose data transferring or remote management on GbE LAN by their requirement.

Connecting the Future - USB Type-C™

AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.

USB 3.2 Gen2 Type-C™ Front Panel Connector

The onboard USB Type-C™ header for USB 3.2 Gen2 makes access convenient when connecting a USB 3.2 Gen2 drive or charging your new mobile device.

GIGABYTE Remote Management

With ASPEED AST 2500 BMC, Gigabyte server boards can provide an IPMI 2.0 compliant solution for IT managers to do remote management through the web interface.ALC 1220 120dB SNR HD Audio with Smart Headphone Amp ALC 1220 120dB SNR HD AudioThe ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Ultra Durable™ PCIe Armor Industry Leading Ultra Durable™ PCIe Armor

The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
