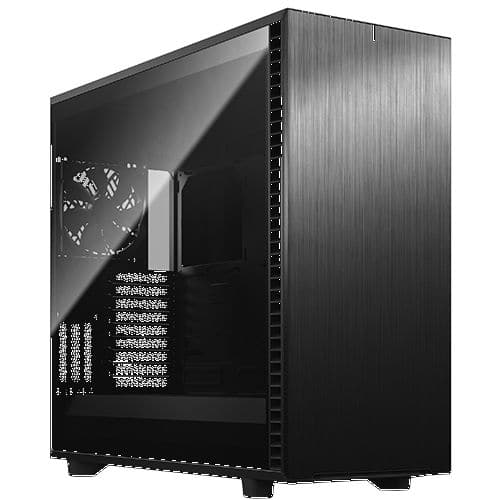

Features of FRACTAL DESIGN Define 7 XL TG Light Tint Full Tower Cabinet (Black)

Define 7 XL

The Fractal Design cabinet Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.

Plenty of room for massive builds

Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering Ventilated PSU shroud with two-part removable cover Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Superlative storage possibilities

Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the boardSturdy new HDD cage design with vibration damped trays 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size

Airflow and cooling

Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fansEasy-to-clean high airflow nylon filters with full PSU coverage and convenient front accessThe two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering

USB Type-C

USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps

Moduvent

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation

Technical Detail

Brand : Fractal Design
Modal : FD-C-DEF7X-02

Technical Spec

3.5"/2.5" Universal drive brackets : 6 + 2 included, 18 positions total
Dedicated 2.5" drive brackets : 2 included, 5 positions total
5.25” drive mounts : 2
Expansion slots : 9 + 3
Front ports : 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts : 11 x 120 mm or 9 x 140 mm
Front fan : 4 x 120 mm or 3 x 140 mm, (2 x Dynamic X2 GP-14 included)
Top fan : 4 x 120 mm or 3 x 140 mm
Rear fan : 1 x 120/140 mm, (1 x Dynamic X2 GP-14 included)
Bottom fan : 2 x 120/140 mm
Dust filters : Top, 2 x Front, Bottom + PSU
Fixed velcro straps : Yes
Cable routing grommets : Yes
Captive thumbscrews : HDD brackets, SSD brackets, PSU bracket
Left side panel : Industrial sound-damped steel
Right side panel : Industrial sound-damped steel

Compatibility

Motherboard compatibility : E-ATX / ATX / mATX / mITX / EE-ATX / SSI-CEB / SSI-EEB
Power supply type : ATX
PSU max length : 250 mm (both HDD cages installed)
GPU max length : Storage layout: 359 mm - Open layout: 549 mm (524 mm w/ front fan)
CPU cooler max height : 185 mm
Front radiator : Up to 480/420 mm
Top radiator : Up to 480/420 mm
Rear radiator : 120 mm
Bottom radiator : Up to 240/280 mm
Cable routing space : 30 mm
Vertical GPU Support (with Flex B-20 or Flex VRC-25) : 65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling

Dimensions

Case dimensions (LxWxH) : 604 x 240 x 566 mm
Case dimensions w/o feet/protrusions/screws : 590 x 240 x 548 mm
Package dimensions (LxWxH) : 646 x 357 x 708 mm
Net weight : 16.53 kg
Package weight : 18.73 kg
Volume : 77.6 liters

Get the affordable cpu cabient price with the huge variety with us!

Specifications of FRACTAL DESIGN Define 7 XL Light Tint ATX Full Tower Cabinet (Black)
