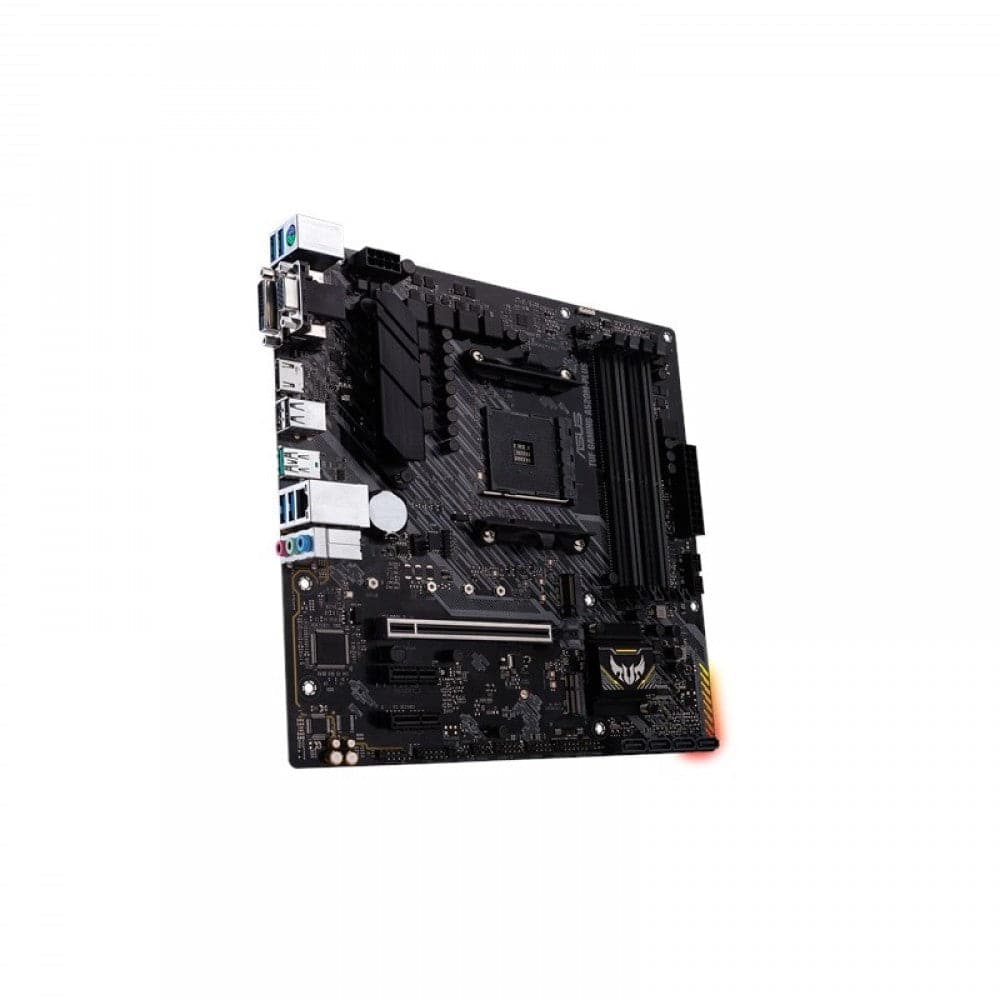

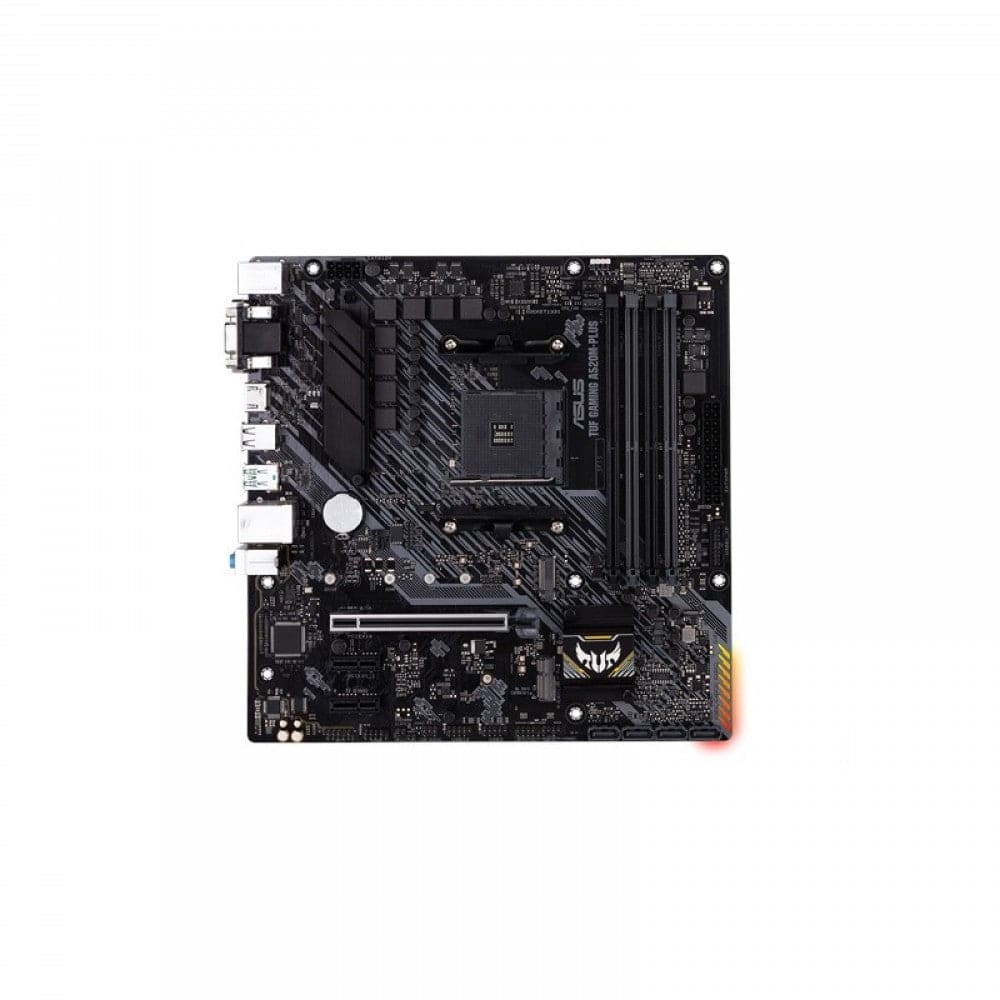

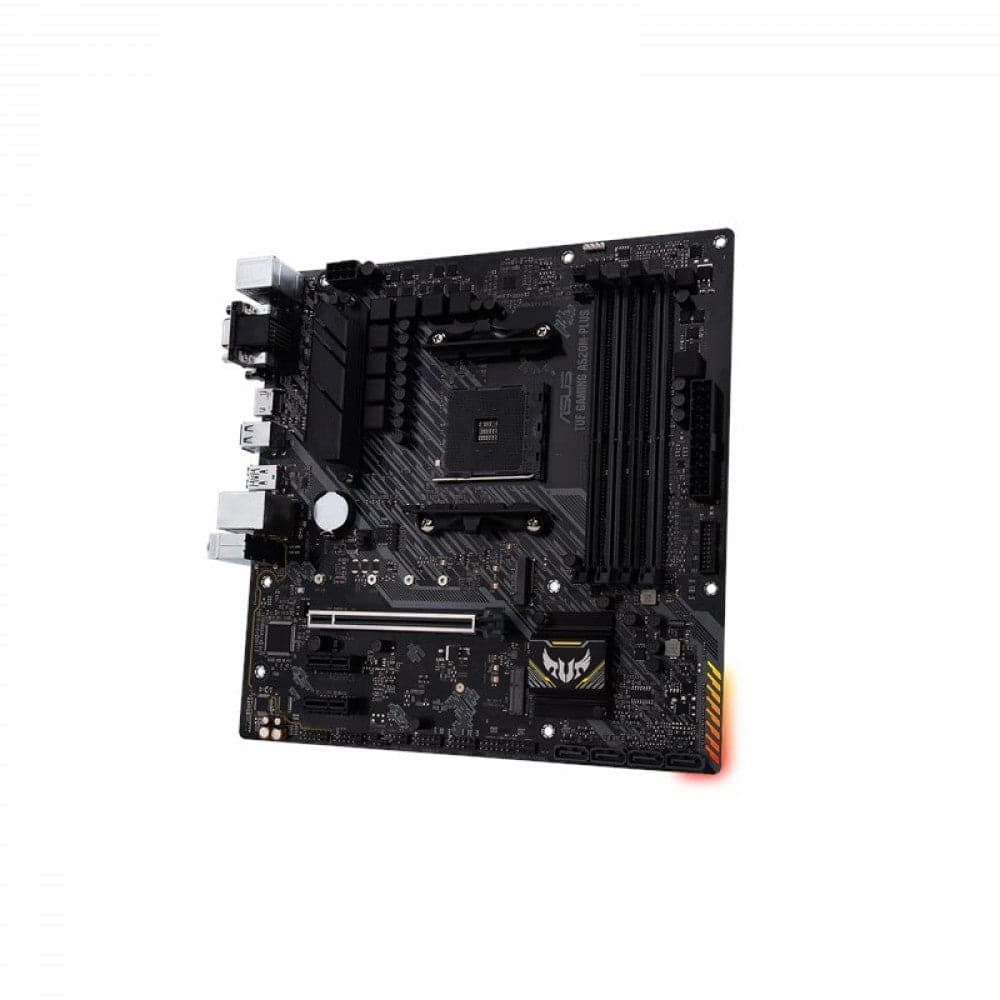

ASUS TUF Gaming A520M-Plus DDR4 AMD Motherboard

Most searched : Processors MotherBoard Graphic Card CPU Cooler Mouse RAM SSD Gaming

Call Us On:

+91-99250 02827

Shop more for free shipping

ASUS TUF Gaming A520M-Plus DDR4 AMD Motherboard

360˚

- 21%

Motherboard

ASUS TUF Gaming A520M-Plus DDR4 AMD Motherboard

Rs. 9,275.00 Rs. 7,270.00

Availability : Out Of Stock

Brand : ASUS

SKU : asus-tuf-a520m-plus

Tags : Asus, CATP_Asus, CATQ_Motherboard, MOB10_RGB, MOB11_3, MOB12_1, MOB13_Gen3, MOB14_Gen3, MOB15_Black, MOB16_0, MOB17_4, MOB18_7, MOB19_0, MOB1_A520, MOB20_0, MOB21_0, MOB22_1, MOB23_55, MOB24_AMD Motherboard, MOB2_MATX, MOB3_AM4, MOB4_128, MOB5_4866, MOB6_4, MOB7_DDR4, MOB8_1, MOB9_0

Safe Payment

Pay with the world’s most payment methods.

Confidence

Protection covers your purchase

Worldwide Delivery

Ship to over 200 countries & regions.

Hotline

+91-99250 02827

Description

Feature of ASUS TUF Gaming A520M Plus

AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors
Comprehensive cooling: VRM and PCH heatsinks, Fan Xpert 2+
Made for online gaming: Realtek L8200A Ethernet, M.2 slot (Key E) for Wi-Fi module, TUF LANGuard and TurboLAN technology
Aura Sync RGB Lighting: Synchronize LED lighting with a vast portfolio of compatible PC gear

DURABLE. STABLE. RELIABLE.

ASUS TUF Gaming A520M-Plus distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.

When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.

ROCK-SOLID PERFORMANCE

With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory, TUF Gaming A520M-Plus is the perfect foundation for your next high-core-count battle rig.

COMPREHENSIVE FAN CONTROLS

TUF Gaming A520M-Plus features comprehensive fan controls that can be configured via Fan Xpert 2+ utility or via the award-winning ASUS UEFI BIOS.

Multiple temperature sources

Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.

4-pin PWM/DC fan

All onboard chassis fan headers support auto-detection of PWM and DC fans.

Smart protection

A dedicated integrated circuit protects each fan header from over-temperature and overcurrent.

32Gbps M.2 Support

M.2 slot supports up to 22110 and data-transfer speeds of up to 32 Gbps via x4 PCI Express 3.0 bandwidth, enabling quicker boot-up and app load times with OS or application drives.

USB 3.2 GEN 2 TYPEA

Numerous USB ports support gaming rigs loaded with peripherals, including a USB Type-A connector with fast USB 3.2 Gen 2 connectivity for compatible cases.

EASY PC DIY

TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

ROCK-SOLID PERFORMANCE

TUF GAMING ALLIANCE

TUF Gaming Alliance is the marque of collaboration between ASUS and major PC-component brands. A wide range of compliant parts, from PC cases and power supplies to CPU coolers and memory kits, guarantee both compatibility and aesthetic harmony. We’re also continually increasing our partnerships to make the TUF Gaming Alliance ever stronger, and require that components carrying the marque are tested to standards that are higher than the industry standards — for better compatibility, stability and durability.

IMMERSIVE GAMING

TUF Gaming A520M-Plus provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.

EASY PC DIY

Outshine the Competition

A well-tuned system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Specifications of ASUS TUF Gaming A520M Plus

CPU	AMD Socket AM4 for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors*
Chipset	AMD A520 Chipset
Memory	4 x DIMM, Max. 128GB, DDR4 4800(O.C)/4600(O.C.)/4466(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.) /4000(O.C.) /3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.) /3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory* Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU.
Graphic	Integrated Graphics in the 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x DVI-D 1 x D-Sub 1 x HDMITM 2.1(4k@60HZ)
Expansion Slots	3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots
Storage	Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors M.2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10
Ethernet	1 x Realtek L8200A 1Gb Ethernet
Wireless	M.2 slot (Key E) (Wi-Fi module is sold separately)
USB	Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Audio	Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

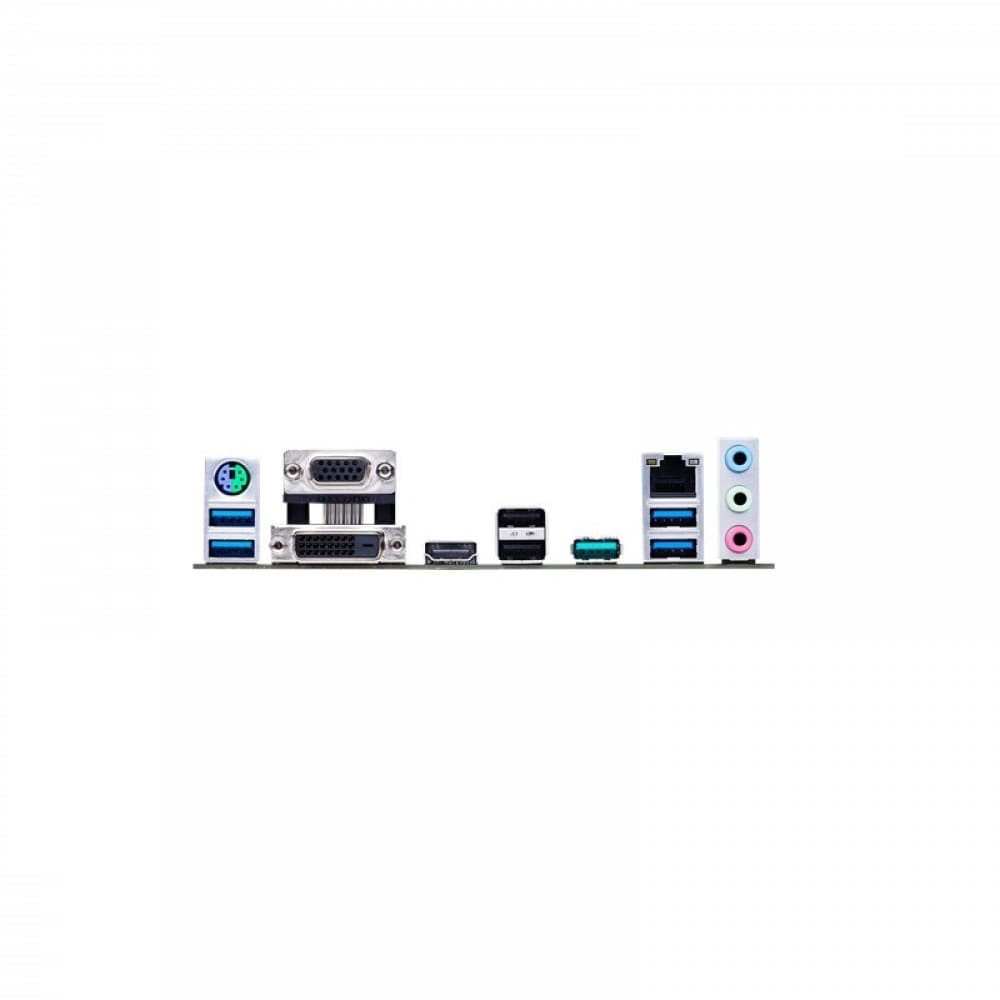

Back I/O Ports	1 x USB 3.2 Gen 2 port (1 x USB Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DVI-D 1 x D-Sub 1 x HDMITM port 1 x Realtek L8200A 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Ports	Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 1 x Aura RGB header 1 x Clear CMOS header 1 x S/PDIF out header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-5 pin System Panel header 1 x SPI TPM header (14-1pin) 1 x M.2 slot (Key E)
Special Features	ASUS TUF PROTECTION - ASUS DIGI+ VRM - ASUS ESD Guards - TUF LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design AURA Sync - Aura RGB header
Software Features	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Operating System	Windows 10 - 64 bit
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice.
