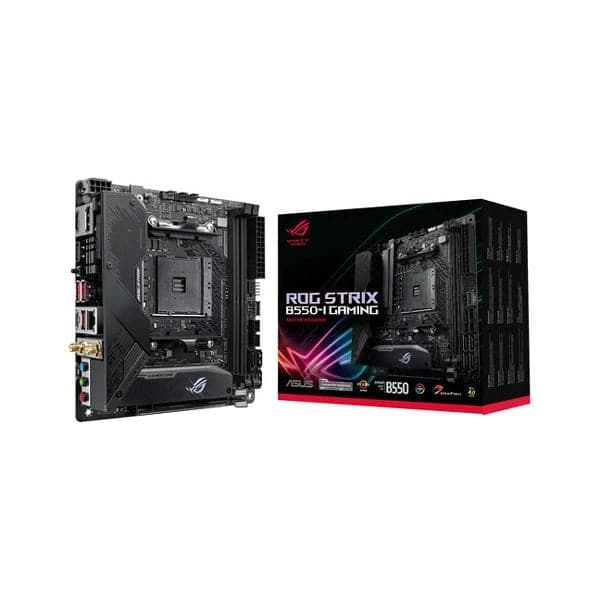

Features of ASUS ROG Strix B550-I Gaming DDR4 AMD Motherboard
- AMD AM4 Socket and PCIe 4. 0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs

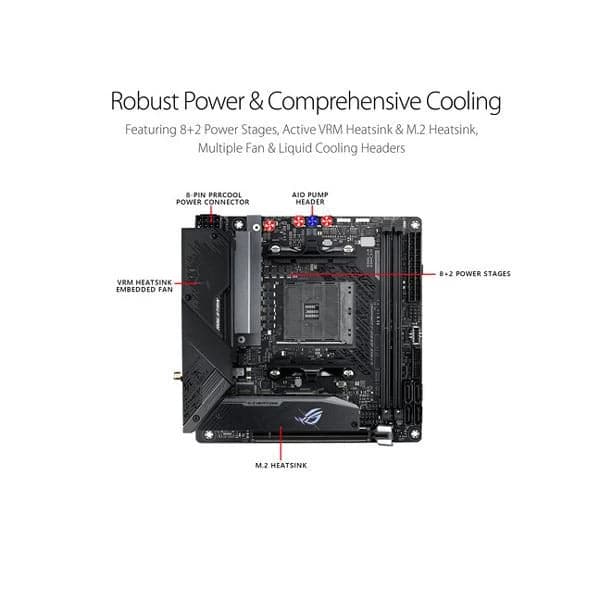

- Robust Power Design: 8+2 DrMOS power stages with high-quality alloy chokes and durable capacitors provide reliable power for the latest high-core-count AMD CPUs
- Optimized Thermal Solution: VRM and PCH heatsinks with ASUS Stack Cool 3+ design keep your system running reliably under heavy load by enhancing passive cooling capacity for critical onboard components.

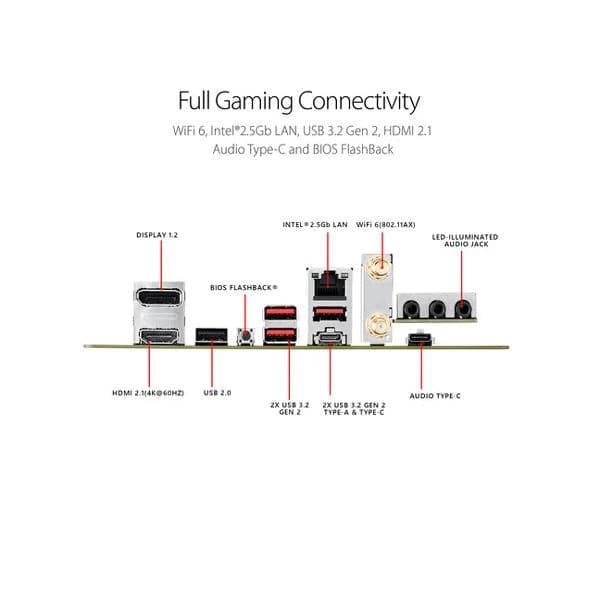

- High-performance Gaming Networking: On-board WiFi 6 (802.11ax), Bluetooth V5.1 and 2.5 Gb LAN with ASUS LANGuard

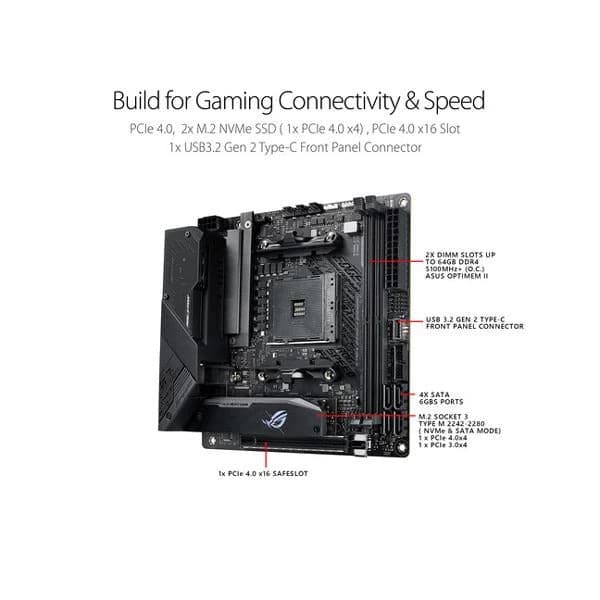

- Best Gaming Connectivity: Supports HDMI 2.1 (4K@60HZ) and DisplayPort 1.2 output, featuring dual M.2 slots (NVMe SSD)—one with PCIe 4.0 x4 connectivity, USB 3.2 Gen 2 front panel Type-C connector, USB 3.2 Gen 2 Type-C port
- Industry-leading Gaming Audio & AI Noise Cancelling Mic Technology: High fidelity audio from a SupremeFX S1220A codec with DTS Sound Unbound and Sonic Studio III draws you deeper into the action. Communicate clearly with ASUS AI Noise Cancelling Mic technology.

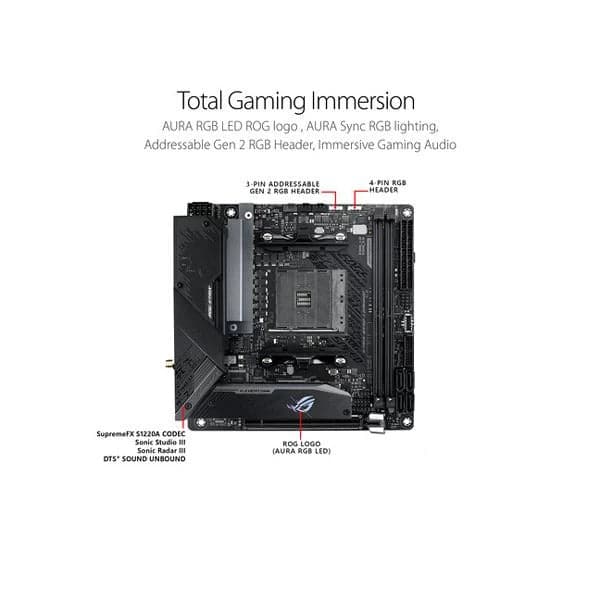

- Unmatched Personalization: Mini-ITX form factor, ASUS-exclusive Aura Sync RGB lighting, including RGB header and addressable Gen 2 RGB header for greater customization
- Please ensure your BIOS is up to date if installing a compatible Ryzen 5000 series CPU. Visit ASUS site search by motherboard model name, click on “Support” tab, Drivers and Tools, then BIOS & Firmware to download the latest BIOS.
Specifications of ASUS ROG Strix B550-I Gaming DDR4 AMD Motherboard
| Brand | ASUS |
| Manufacturer | Asus |
| Model | ROG STRIX B550-I GAMING |
| Model Name | ROG STRIX B550-I GAMING |
| Model Year | 2020 |
| Product Dimensions | 17.02 x 17.02 x 8.13 cm; 1.09 Kilograms |
| Item model number | ROG STRIX B550-I GAMING |
| Memory Storage Capacity | 64 GB |
| Memory Slots Available | 4 |
| Memory Technology | DDR4 |
| Ram Memory Installed Size | 64 GB |
| Maximum Memory Supported | 64 GB |
| Ram Memory Technology | DDR4 |
| Processor Socket | Socket AM4 |
| Compatible Processor Types | AMD 3rd Generation Ryzen |
| Graphics Card Interface | PCI-E |
| Chipset Type | AMD B550 |
| Number Of Items | 1 |
| Batteries Included | No |
| Batteries Required | No |
| Wireless Type | 802.11a/b/g/n/ac, 802.11ax |
| Form Factor | Mini ITX |
| Manufacturer | Asus |
| Country of Origin | China |
| Item Weight | 1 kg 90 g |
