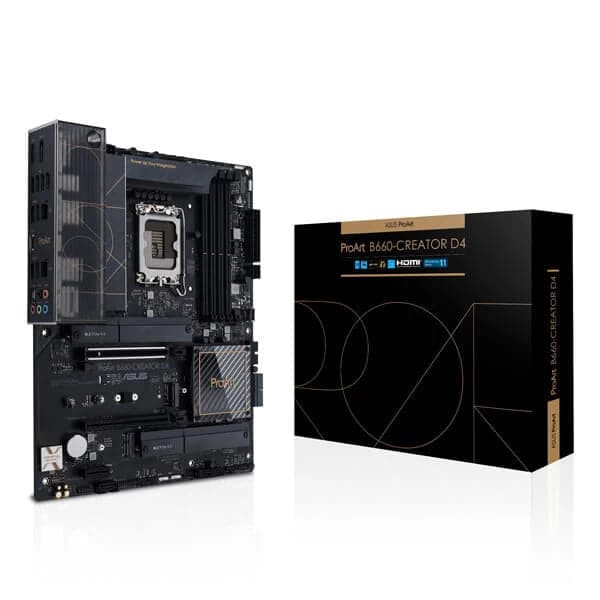

Feature of ASUS ProArt B660 Creator DDR4 Intel Motherboard

Intel® B660 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR4, 2.5 Gb and 1 Gb Ethernet, three PCIe 4.0 M.2 slots, plus USB-C DisplayPort™ and a USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+

1. Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
2. Comprehensive connectivity: 2.5 Gb & 1 Gb onboard Ethernet, three M.2 slots, ThunderboltTM header support, USB-C DisplayPortTM and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
3. Next-gen performance: 12+1 power stages rated for 50 amps, PCIe® 5.0 ready

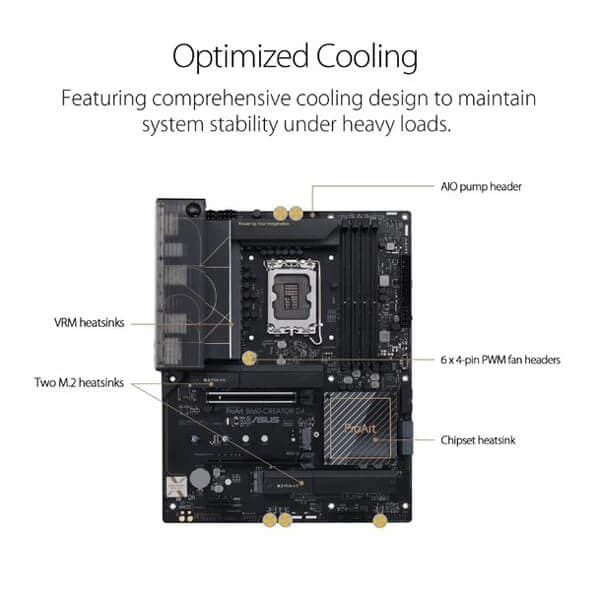

4. Optimized thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, six 4-pin PWM fan headers and an AIO pump header
5. ProArt gives you more: Two-Way AI Noise Cancelation for clear online communication and ProArt Creator Hub with CreationFirst for one-stop system control
6. Advanced security management: USB port restriction, software blacklisting and Windows Registry protection via ASUS Control Center Express


Your Powerhouse for Creativity

 B660-CREATOR D4 is an enhanced motherboard designed for intensive content-creation workloads like 3D rendering and 4K/8K video editing. It unleashes the performance of 12th Gen Intel® Core™ processors through robust power delivery and cooling design, and its comprehensive connectivity includes onboard 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2×2 Type-C® front-panel connector with Quick Charge 4+, and DisplayPort™ via USB-C.

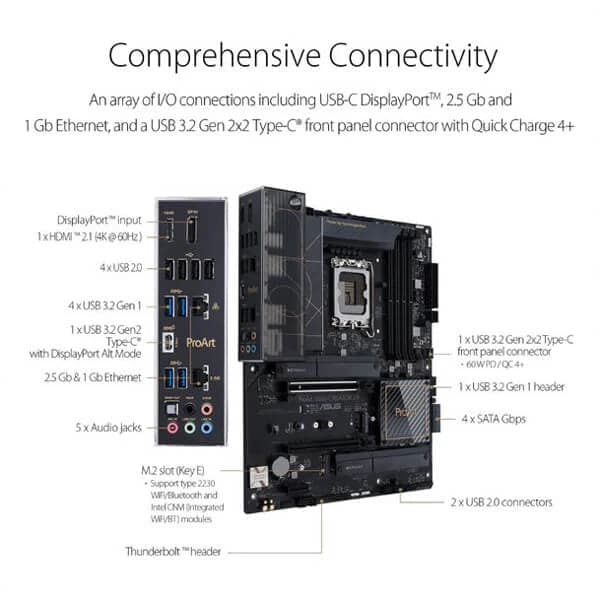

Comprehensive Connectivity

An array of powerful I/O ports — including 2.5 Gb and 1 Gb Ethernet ports and three M.2 slots — enables quick data transfers and extensive storage options.

USB-C DisplayPort (DP Alt Mode)

This USB Type-C® port delivers transfer speeds of up to 10 Gbps, and it supports an alternate mode that provides DisplayPort™ 1.4 output for up to 8K resolution at 60 Hz. This new feature gives creators premium-grade flexibility to choose between high-speed data or an additional hi-res display.

USB 3.2 Gen 2×2 Type-C® Front-Panel Connector with Quick Charge 4+

A USB 3.2 Gen 2×2 connector boosts Type-C data transfers with speeds of up to 20 Gbps. The connector also features Quick Charge 4+ technology that can quickly charge devices up to 60 W with a PCIe power supply cable plugged into the nearby 6-pin connector.

Thunderbolt™ 4 Support

ASUS ProArt B660 Creator DDR4 features Thunderbolt™ 4 support via an on-board header. The ASUS ThunderboltEX 4 add-on card is certified by Intel and can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, the card has a daisy-chain function for multiscreen connection and supports one display with up to 8K resolution . It can also provide up to 100 watts of power to fast-charge devices.

Ultrafast M.2 Transfer Speeds

Three M.2 slots support PCIe 4.0 or 3.0 drives and provide NVMe® SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data transfer speeds.

M.2 Q-Latch

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive, eliminating the need for screws.

Dual Ethernet ports provide fast data transfers simultaneously for internet and for local network-attached storage (NAS), allowing for improved data organization and security.

2.5 Gb Ethernet

The 2.5 Gb Ethernet port provides faster data transfers and smooth high-res video streaming.

Intel® 1Gb Ethernet

The Intel I219-V Ethernet chip reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.

M.2 Slot (Key E)

PROART B660-CREATOR D4 features an M.2 slot (key E) which can support type 2230 WiFi/Bluetooth and Intel CNVi (integrated WiFi/BT) modules

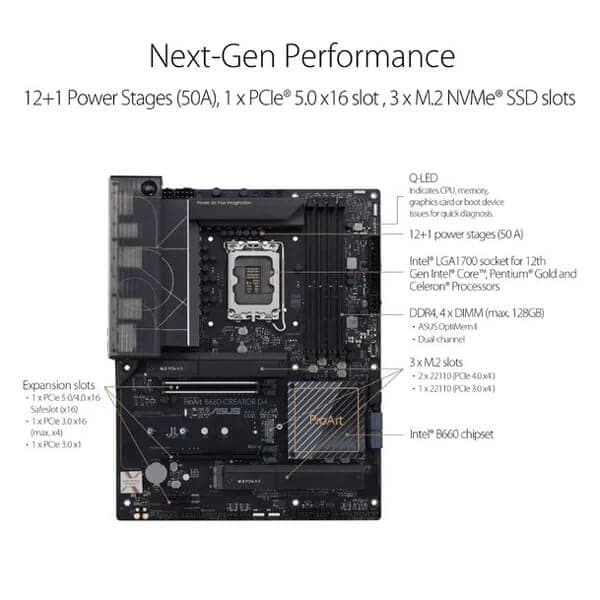

Next-Gen Performance

With tailored CPU power delivery and support for high-performance memory, PROART B660-CREATOR D4 easily handles the demands of the latest 12th Gen Intel Core processors. It features an intelligent VRM design that’s rated for 50 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation and video editing.

PCIe 5.0 READY

The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as improved signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous PCIe versions.

Specifications of ASUS ProArt B660 Creator DDR4 Intel Motherboard
