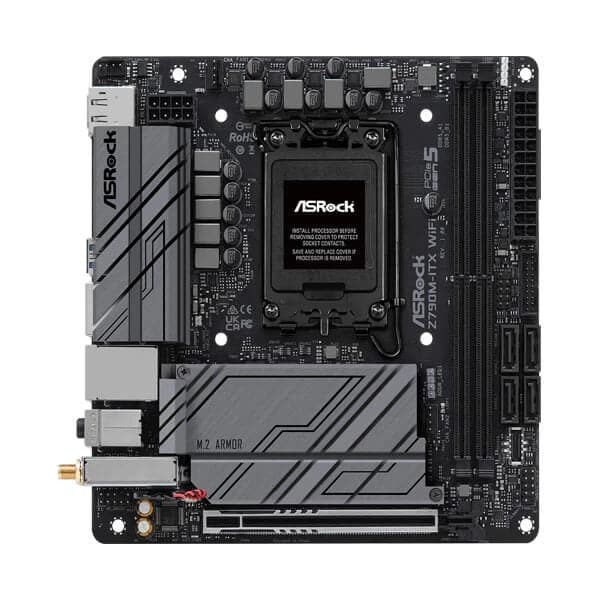

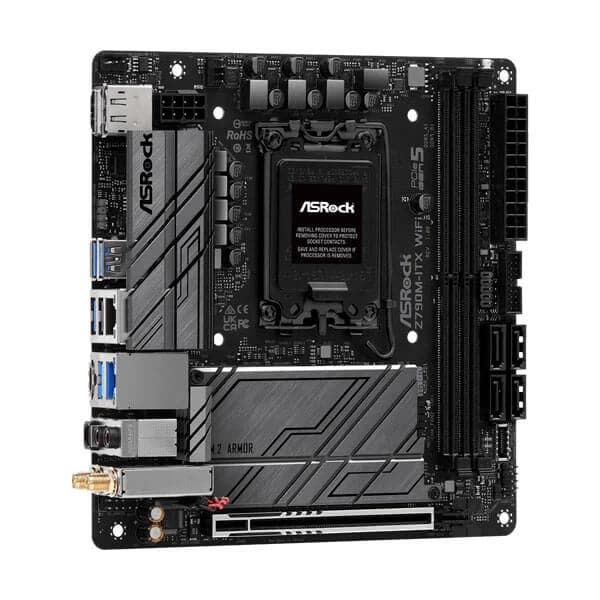

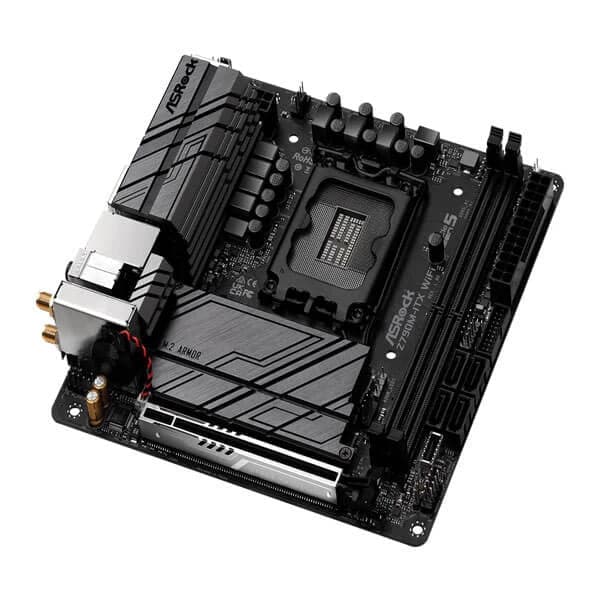

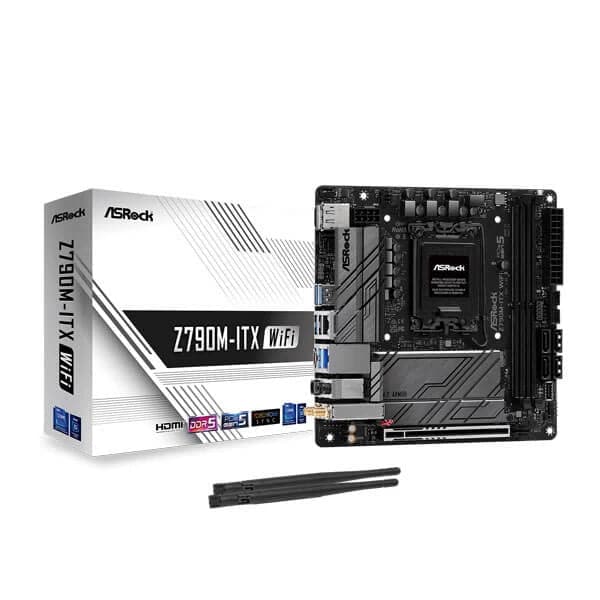

Features of ASROCK Z790M-ITX Wifi DDR5 Intel Motherboard

1. Supports 13th Gen & 12th Gen Intel® Core™ Processors
2. 7+1+1 Phase Power Design, Dr.MOS for VCore+GT
3. 2 x DDR5 DIMMs, supports up to 7000+(OC)
4. 1 PCIe 5.0 x16
5. Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP
6. 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
7. 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3

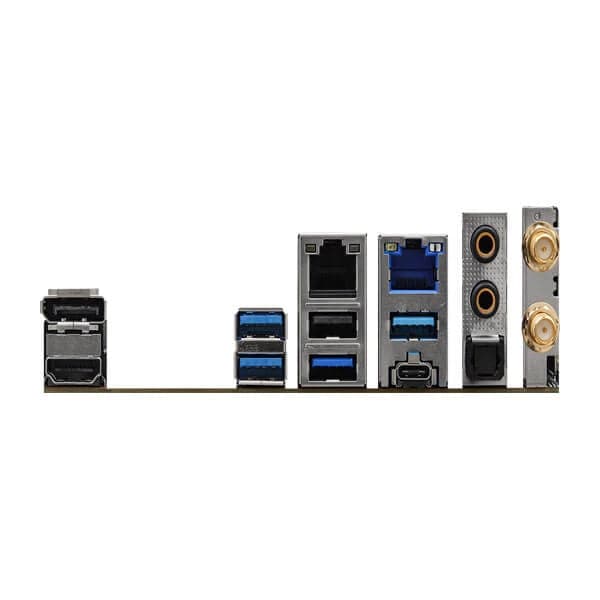

8. 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front)
9. Intel® 2.5G LAN, Intel® 1G LAN
10. 802.11ax Wi-Fi 6E + Bluetooth 5.3

Dr. MOS

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

7+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

8 Layer PCB

The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, ASRock Z790M-ITX WiFi DDR5 is able to support the latest memory modules with most extreme memory performance!

DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.

PCIe 5.0 + Surface-Mount Tech

Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

Audio That Matters

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality

The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience

●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB

ASROCK Z790M-ITX Wifi motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

High Speed M.2 Solution(PCIe Gen4 x4)

ASRock Z790M-ITX WiFi DDR5 Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Wi-Fi 6E 802.11ax

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Front USB 3.2 Gen2 Type-C

ASRock Z790M-ITX WiFi DDR5 has Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

USB 3.2 Gen2

ASRock Z790M-ITX WiFi DDR5 motherboard has four onboard Type-A USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

Built in eDP Signal Connector
Supports ASRock 13.3” Side Panel kit

An eDP signal connector is built with ASRock Z790M-ITX WiFi DDR5 selected motherboards and supports two functions simultaneously – power and transmission of digital display signal. The connector reserves the room for upgrading with ASRock’s exclusive 13.3” Side Panel Kit.. The ideal 13.3″ Side Panel size will be perfectly matched standard form factor chassis and users can easily build a LCD display inside the PC, adding a sub-screen for monitoring PC status, or watching videos, doing streaming or working personalized tasks. This whole new concept of customization enables new possibilities for personalizing designs – doubles productivity or entertainment.

Specifications of ASROCK Z790M-ITX Wifi DDR5 Intel Motherboard
