ASROCK Phantom Gaming Z890M Riptide Wifi 6E DDR5 Intel Motherboard

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Memory OC Shield

ASRock's exclusive Memory OC Shield is a patented feature engineered to reduce electromagnetic interference (EMI) that could affect memory overclocking. By shielding memory modules from EMI noise and optimizing the layout, the Memory OC Shield enhances stability and reliability during high-frequency operations, enabling users to push their systems to the maximum potential.

M.2 Heatsink Toolless Design

Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.

XXL M.2 Heatsink

The extra large aluminum alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Wi-Fi 6E 802.11axe

WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Specifications of ASROCK Phantom Gaming Z890M Riptide Wifi 6E DDR5 Intel Motherboard

Model Name	PHANTOM GAMING Z890M Riptide WiFi
Unique Feature	Superb Productivity – PCIe Gen5 (Graphics, M.2) – Dual Channel DDR5 – Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB – 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor – Memory OC Shield – Flexible Integrated I/O Shield – 20K Long-lasting Black Caps (high quality and conductive polymer capacitors) Ultrafast Gaming – Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module – Killer DoubleShot™ Pro EZ Update – BIOS Flashback Button – ASRock Auto Driver Installer EZ Troubleshooter
CPU	– Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) – Supports Intel® Hybrid Technology – Supports Intel® Turbo Boost Max 3.0 Technology – Supports Intel® Thermal Velocity Boost (TVB) – Supports Intel® Adaptive Boost Technology (ABT) – Integrated NPU for dedicated AI acceleration
Chipset	– Intel® Z890
Memory	– Dual Channel DDR5 Memory Technology – 4 x DDR5 DIMM Slots – Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC) – Supports Clocked Unbuffered DIMM (CUDIMM) – Max. capacity of system memory: 256GB – Supports Intel® Extreme Memory Profile (XMP) 3.0x
BIOS	– 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	– Intel® Xe LPG Graphics Architecture – 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz – 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz – 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Audio	– 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Nahimic Audio
LAN	– 2.5 Gigabit LAN 10/100/1000/2500 Mb/s – Killer E3100G – Supports Killer LAN Software – Supports Killer DoubleShot™ Pro
Wireless LAN	– 802.11axe Wi-Fi 6E Module – Supports IEEE 802.11a/b/g/n/ac/ax/axe – Supports Dual-Band 2×2 160MHz with extended 6GHz band support – 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology – Supports Bluetooth 5.3 – Supports MU-MIMO – Supports Killer LAN Software – Supports Killer DoubleShot™ Pro
Slots	CPU: – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage	CPU: – 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode Chipset: – 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes – 4 x SATA3 6.0 Gb/s Connectors
RAID	– Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices – Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
USB	CPU: – 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: – 1 x USB 3.2 Gen2x2 Type-C (Front) – 2 x USB 3.2 Gen2 Type-A (Rear) – 6 x USB 3.2 Gen1 (4 Rear, 2 Front) – 6 x USB 2.0 (2 Rear, 4 Front)
Connector	– 1 x Thermistor Cable Header – 1 x SPI TPM Header – 1 x Power LED and Speaker Header – 1 x RGB LED Header – 2 x Addressable LED Headers – 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control) – 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) – 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

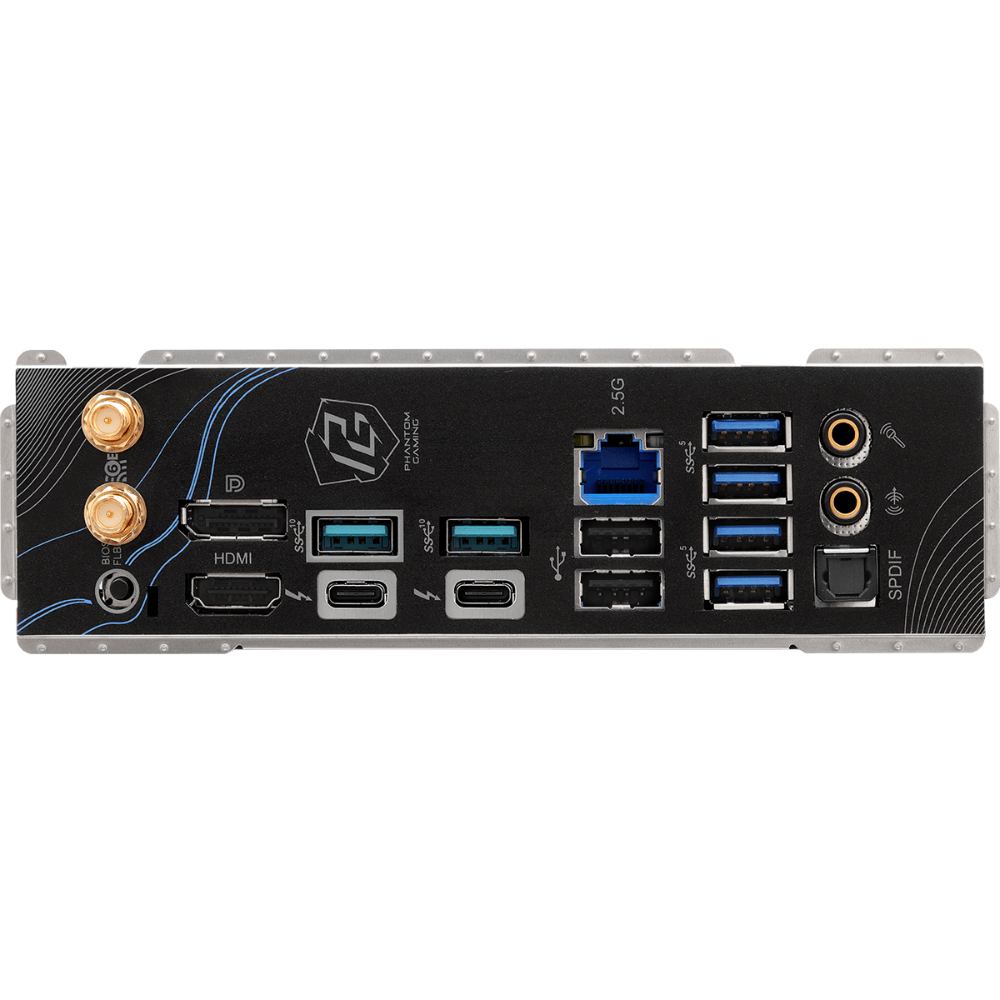

Rear Panel I/O	– 2 x Antenna Ports – 1 x HDMI Port – 1 x DisplayPort 1.4 – 1 x Optical SPDIF Out Port – 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) – 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) – 4 x USB 3.2 Gen1 Ports – 2 x USB 2.0 Ports – 1 x RJ-45 LAN Port – 1 x BIOS Flashback Button – 1 x Line Out Jack (Gold Audio Jack) – 1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI	Software – ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Auto Driver Installer – ASRock Instant Flash
Accessories	– 2 x SATA Data Cables – 2 x ASRock WiFi 2.4/5/6 GHz Antennas – 1 x ARGB Splitter Cable – 1 x Thermistor Cable
Form Factor	– Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm – 2oz Copper PCB
OS	– Microsoft Windows® 11 64-bit
Certifications	– FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
