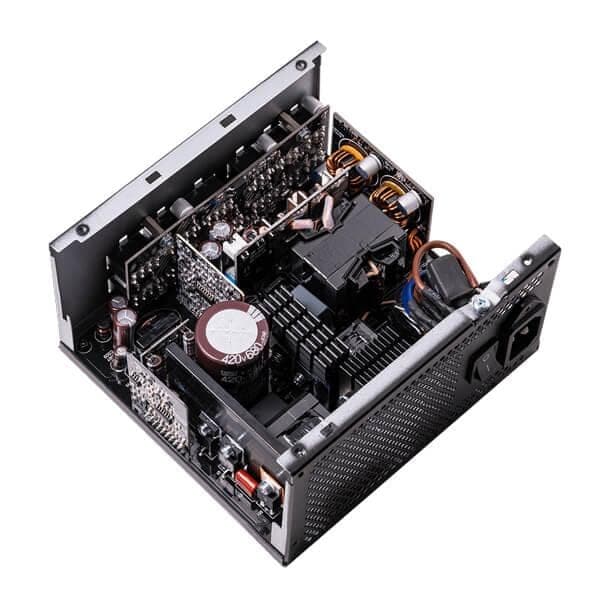

ADATA XPG Core Reacter 850W 80 + Gold Fully Modular ATX 2.0 Power Supp

Features of ADATA XPG Core Reactor 850W

The ADATA XPG CORE REACTOR is a modular, 850W Power Supply unit equipped with 100% Japanese capacitors. Combined with Line Level Control (LLC) resonant topology, it is power-efficient, reliable and makes creating a tidy build easy.

The 80 Plus Gold Certified

The 80 Plus Gold certified XPG CORE REACTOR gives you 90% efficiency at 50% load.

Cybernetics LAMBA / ETA Certified

The XPG CORE REACTOR modular power supply surpasses Cybernetics LAMBDA-A and ETA-A certification standards to meet the exacting needs of gamers for power transfer efficiency and low-noise operation.

Intelligent Fan-Curve

Intelligent fan-curve provides near-quiet operations, even when at full power load. The fan control starts at a low 3.3v, 660rpm ± 10%, and remains at this speed until surpassing 50% load, prolonging the lifespan of the fan and the power supply unit.

Compact and Modular

The XPG CORE REACTOR is compact in size due to the combination of high-quality components, a well-thought-out layout, and a new manufacturing process. What's more, its modular design reduces cable clutter and simplifies system building.

Premium Japanese Capacitators

Equipped with All 105°C Japanese capacitors, the XPG Power Supply provides you with reliability and stability. The XPG CORE REACTOR’s DC voltage is maintained within ±2% and reduces ripple and noise by up to 35% for enhanced dependability.

Industrial-Grade Protection

Over Current Protection (OCP)
Over Voltage Protection (OVP)
Under Voltage Protection (UVP)
Over Power Protection (OPP)
Short Circuit Protection (SCP)
Over Temperature Protection (OTP)
No Load Operation (NLO)
Surge & Inrush Protection (SIP)

Get the best 80 Plus Gold SMPS price from us today!

Specifications of ADATA XPG Core Reactor 850W

80 PLUS Rating	GOLD
ATX Version	Intel 1.42
Protections	OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Certification	CB / TUV / cTUVus / CCC / CE / FCC / BSMI / RCM / EAC
PFC	0.99
Input Voltage	100V-240V
Input Current	10A-5A
Input Frequency	47Hz-63Hz
Operating Temperature	50℃
Fan Size	12cm
Fan Bearing	FDB
Fan Speed	2400
Noise Level @ 20%	11.2dB(A)
Noise Level @ 50%	750W : 11.2dB(A)
Noise Level @ 100%	650W : 22.3dB(A)
MTBF	100K hours at full load
ATX 24 Pin Connector	1
EPS 4 4 Pin Connector	850W : 1
EPS 8 Pin Connector	850W : 1
SATA Connector	12
Peripheral 4 Pin Connector	4
PCI-e e 6 2 Pin Connector	850W : 4
Warranty	10 Years
Note	***Features, Price, and specifications are subject to change without notice.
