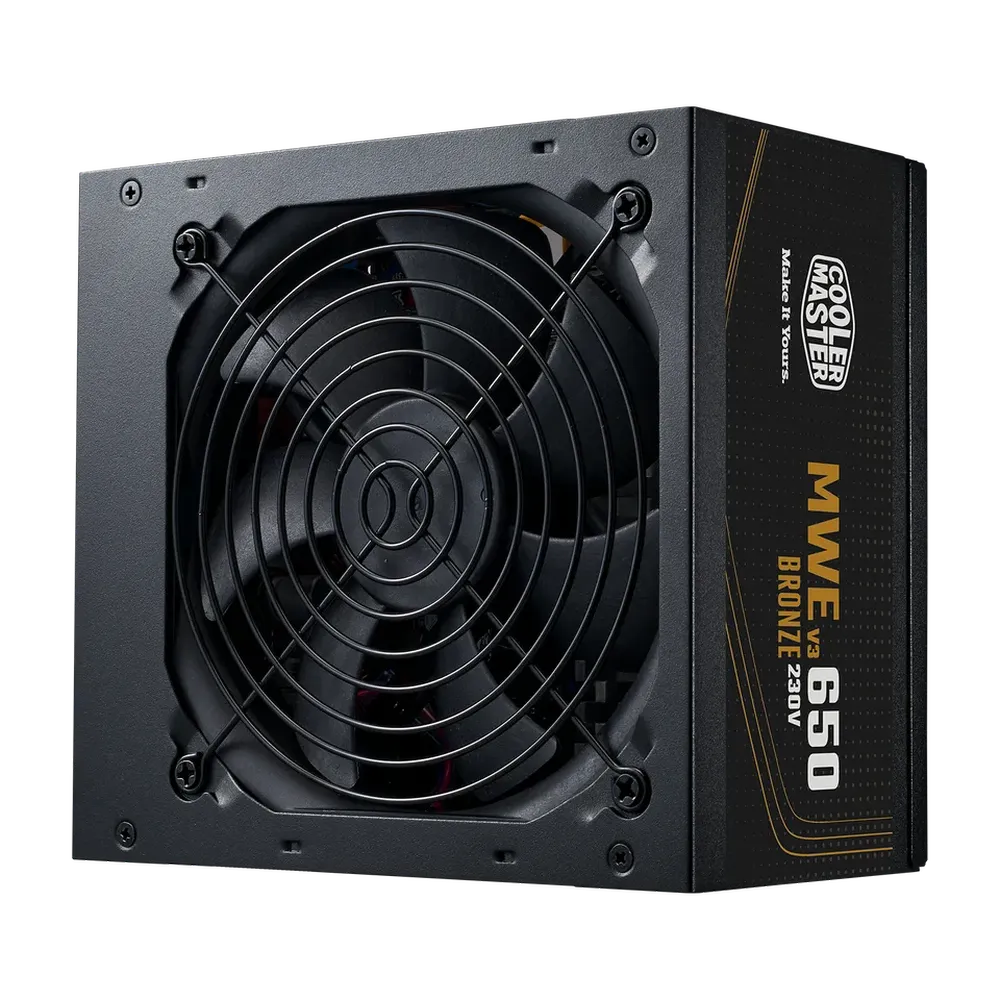

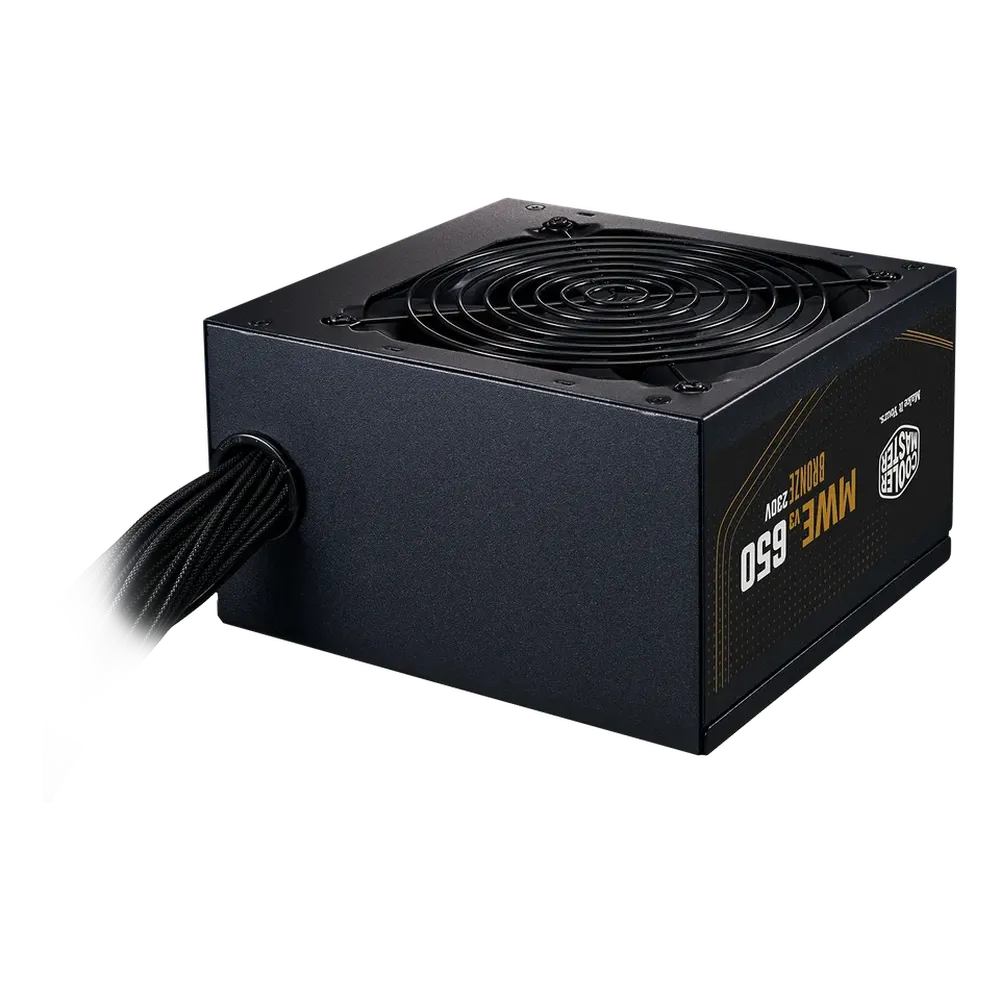

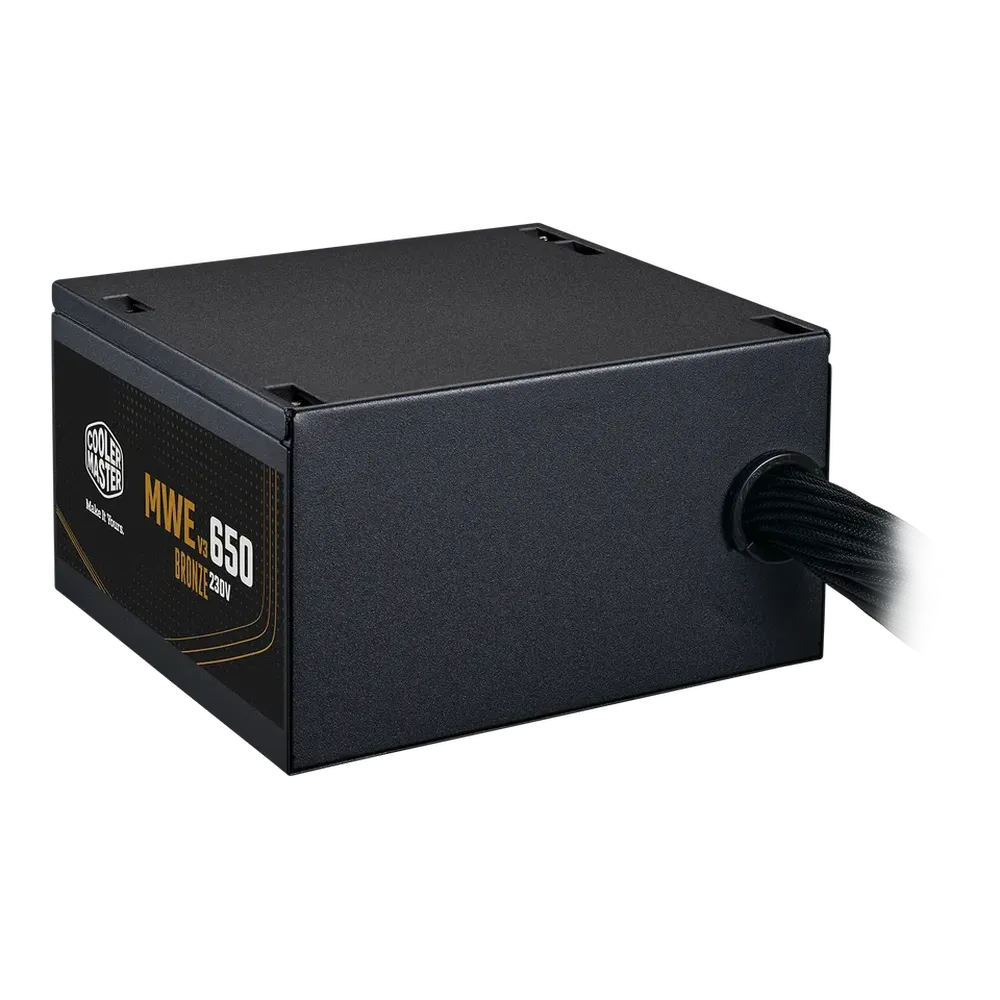

COOLER MASTER MWE 650W V3 80 Plus Bronze Non Modular ATX 3.1 Power Supply
- Rs. 5,295.00 Rs. 9,700.00
- Availability: In Stock
- SKU: cooler-master-mwe-650w-v3-bronze-black
Features of COOLER MASTER MWE 650W V3 80 Plus Bronze Non Modular ATX 3.1 Power Supply COOLER MASTER MWE Bronze 650W V3 230V is the upgraded version of the...
Features of COOLER MASTER MWE 650W V3 80 Plus Bronze Non Modular ATX 3.1 Power Supply
COOLER MASTER MWE Bronze 650W V3 230V is the upgraded version of the MWE 650W Power Supply Bronze featuring ATX 3.1 support, high temperature resilience, a smart DC-to-DC + LLC circuit design, a quiet HDB fan, 80 Plus Bronze efficiency, an embossed cable, and a 5-year warranty.
- ATX 3.1 support
- High temperature resilience
- Quiet HDB fan
- 80 Plus Bronze certified efficiency
- Embossed cable
- 5-year warranty
ATX 3.1 SUPPORT
Compliant with ATX 3.1 to fully support a peak power 1.5 times higher than the rated maximum wattage, this unit is ideal for use with the 40 series GPUs.
EMBOSSED CABLE
An embossed cable texture provides a softer and overall improved grip with a pleasing aesthetic.
QUIET HDB FAN
A hydrodynamic bearing fan delivers long- lasting quiet and effective cooling.*All
performance stats confirmed in 25°C ambient temperature testing.
CERTIFIED EFFICIENCY
The MWE Bronze V3 230V is certified to achieve more than 88% efficiency at typical
loads.
HIGH TEMPERATURE RESILIENCE
A 40°C operating temperature allows for pushing your machine to the limits.
Specifications of COOLER MASTER MWE 650W V3 80 Plus Bronze Non Modular ATX 3.1 Power Supply
| Model Number | MPE-6501-ACABW-3BIN |
| ATX Version | ATX 12V Ver. 3.1 |
| PFC | Active PFC |
| Input Voltage | 200-240V |
| Input Current | 5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch |
| Fan Size | 120mm |
| Fan Bearing | HDB |
| Efficiency | >88% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Bronze EU 230V |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-40°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | >16ms |
| MTBF | >100,000 Hours |
| Protections | UVP / OVP / OPP / OTP / SCP |
| Regulatory | TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
| Series | MWE Bronze Series |
| Category | 500 to 750W |
| Modular | Non Modular |
| 80 Plus | Bronze |
| Form Factor | ATX |
| Watts | 650W |
| ATX 24 Pin Connectors | 1 |
| EPS 8 Pin / 4+4 Pin Connectors | 2 |
| SATA Connectors | 6 |
| Peripheral 4 Pin Connectors | 3 |
| PCI-e 6+2 Pin Connectors | 4 |
| Warranty | 5 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
