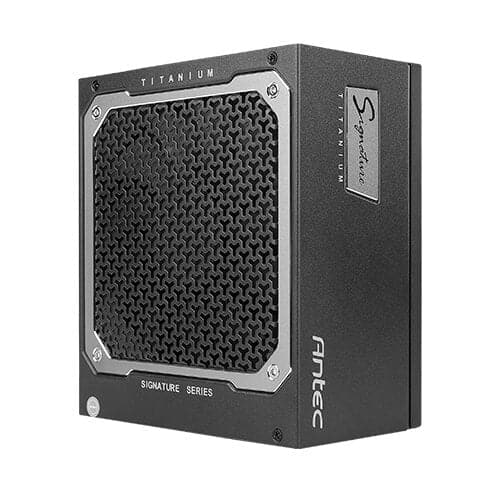

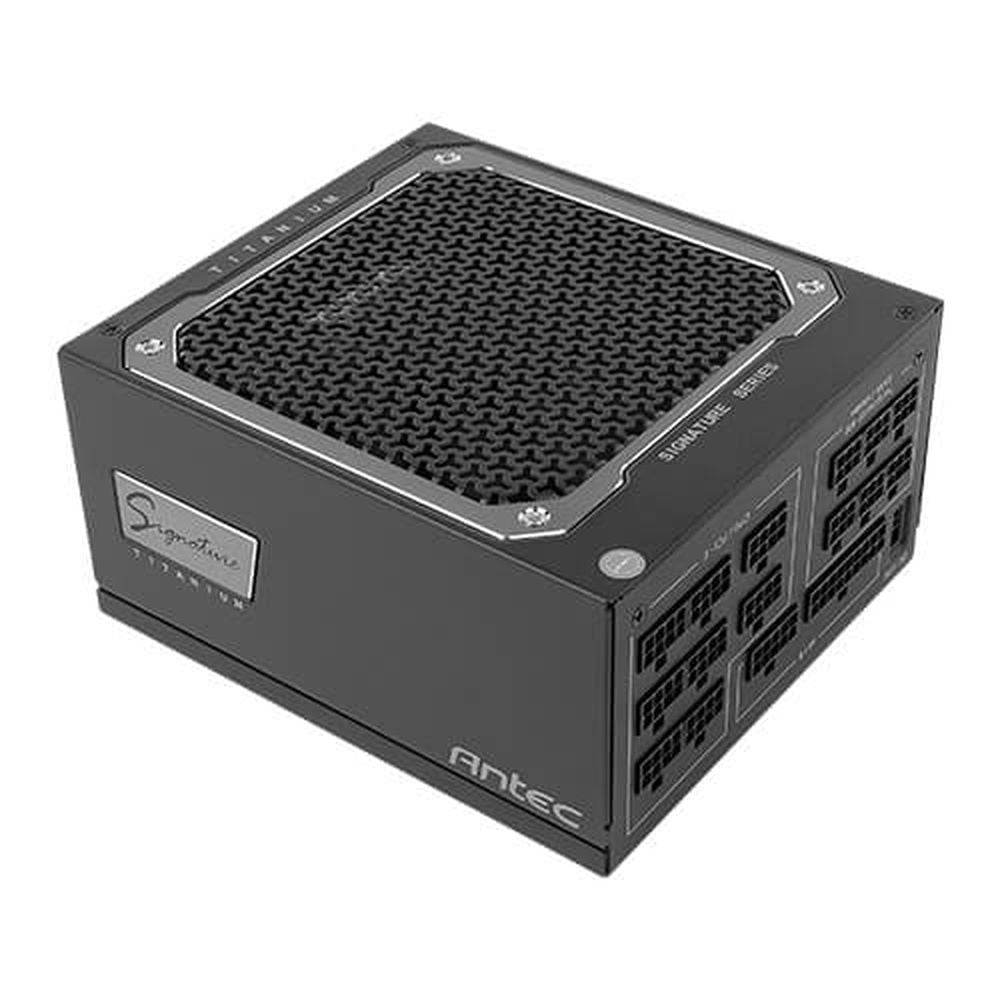

ANTEC Signature ST1000 1000W GB 80+ Titanium Fully Modular ATX 2.0 Power Supply
- Rs. 17,846.00 Rs. 21,450.00
- Availability: In Stock
- SKU: ST1000-GB
Features of ANTEC Signature ST1000 Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Antec Power Supply Series boasts unparalleled stability and 80 PLUS®...
Features of ANTEC Signature ST1000
Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Antec Power Supply Series boasts unparalleled stability and 80 PLUS® Titanium-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield™ suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.
- FDB 135mm Silent Fan
- Zero RPM Mode
- 100% Top-Grade Japanese Capacitors
- PhaseWavetm Design

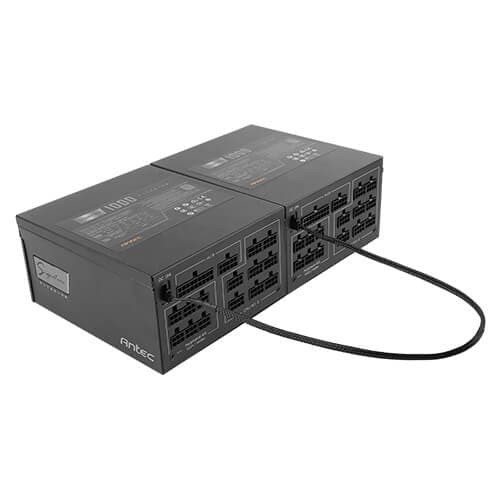

- OC Linktm Feature
- 10-year Warranty
FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.
Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple
& noise to maximize your system’s performance.
PhaseWavetm Design
OC Link Feature
10-year Warranty
Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Get the best 80 Plus Titanium psu power supply price from us today!
Specifications of ANTEC Signature ST1000
| Model | X9000A505-18 |
| Type | ATX |
| Modular | Fully |
| Dimension (W x L x H) | 150 x 170 x 86mm |
| Warranty | 10 years |
| Input Voltage | 100-240 |
| Input Current | 13A ~ 6.5A |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC |
APFC PFC at half / full load: >0.95 at AC 110v 60Hz(typical) >0.90 at AC 230v 50Hz(typical) |
| Power Good Signal | 100 ~ 500mS |
| Efficiency |
At 10% / 20% / 50% / 100% load AC 115V internal, the power efficiency should be at least 90% / 92% / 94% / 90%. |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 1000W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory |
cTUVus / TUV / CB FCC / BSMI / 3C / KC / RCM |
| Fan | 135 x 135 x 25(mm) FDB Silent Fan |
| Certifications | 80 Plus Titanium |
|
Connector
|
1 x MB 24(20 + 4) Pin |
| 2 x 8 (4 + 4) Pin EPS 12V | |
| 8 x 8(6 + 2) Pin PCI-E | |
| 16 x SATA | |
| 5 x Molex | |
| 1 x FDD | |
| UPC# |
0-761345-11710-4 ST1000 0-761345-11711-1 ST1000 AU 0-761345-11712-8 ST1000 EC 0-761345-11713-5 ST1000 GB 0-761345-11714-2 ST1000 JP |
| Net Weight | 2.11 Kgs |
| Gross Weight | 3.94 Kgs |
