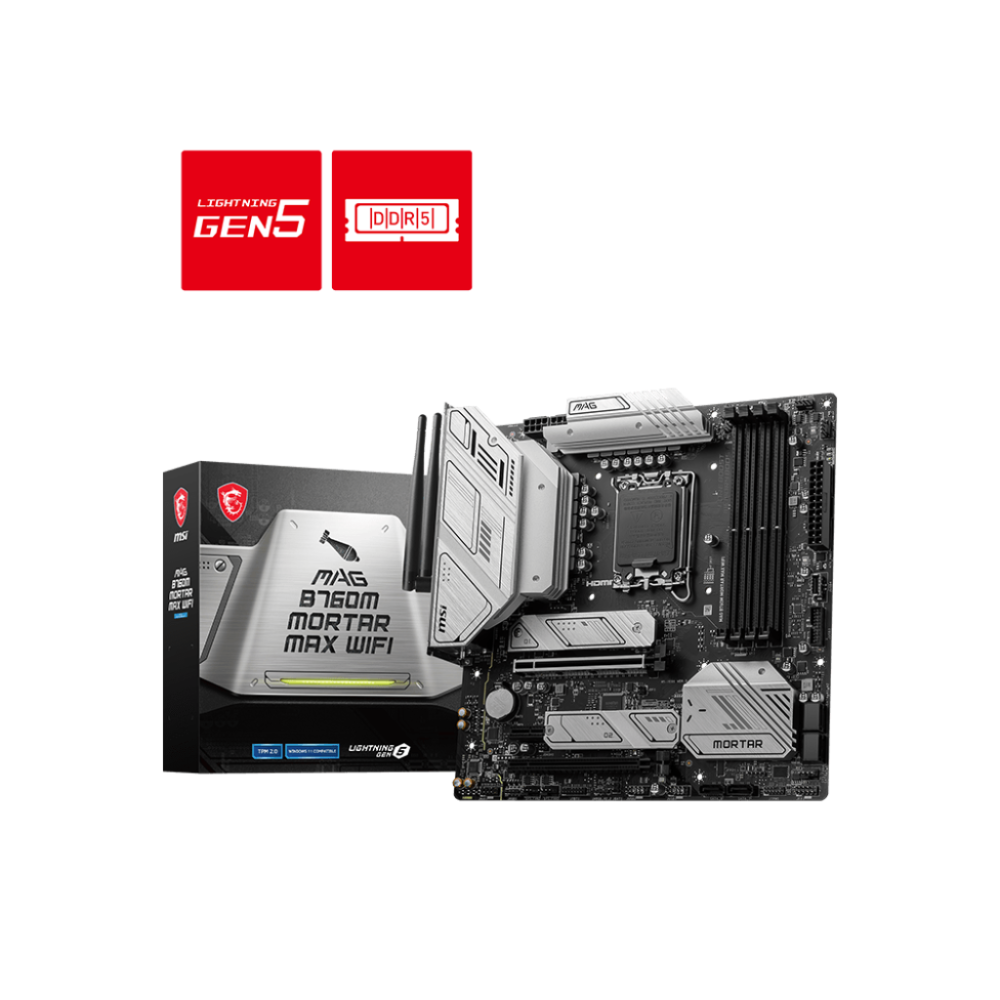

MSI MAG B760M Mortar Max Wifi6e DDR5 Intel Motherboard
MSI MAG B760M Mortar Max Wifi6e DDR5 Intel Motherboard
Regular price
Rs. 17,933.00
Sale price
Rs. 17,933.00
Regular price
Rs. 29,999.00
Unit price
per
Out of stock
Couldn't load pickup availability
Description
Shipping Information
Reviews
Features of MSI MAG B760M Mortar Max Wifi6e DDR5 Intel Motherboard
MAG B760M MORTAR MAX WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7200+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- OC Engine: With the clock generator, the OC Engine technology releases the maximum power of CPU.
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upperMOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.
OC ENGINE
With the clock generator, the OC ENGINE technology releases the maximum power of CPU.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B760M MORTAR MAX WIFI is ready to deliver the world class memory performance.
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
Specifications of MSI MAG B760M Mortar Max Wifi6e DDR5 Intel Motherboard
| Chipset | INTEL B760 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices* * SATA_A1_A2 do not support RAID function. |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | mATX 243.84mmx243.84mm |
