Features of DEEPCOOL PN850M 850W 80+ Gold Fully Modular Power Supply

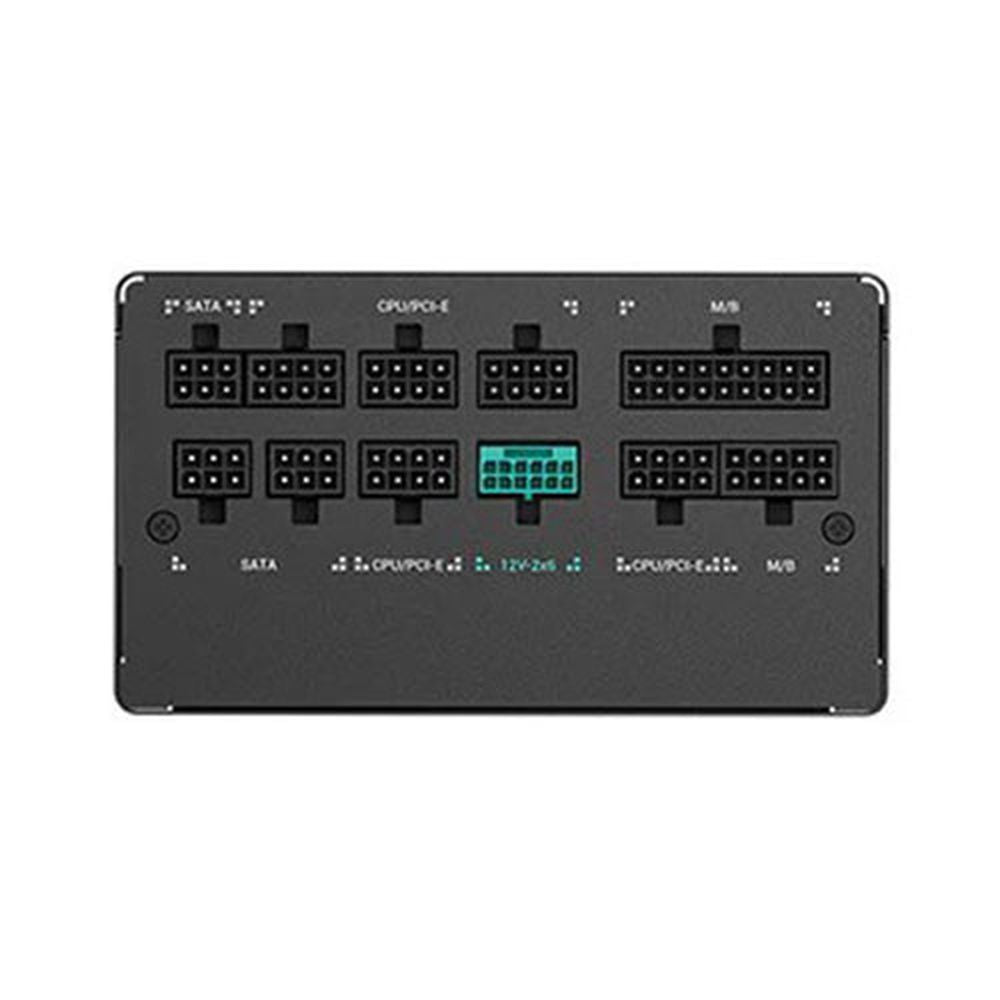

The DeepCool PN850M 850W PSU is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.
FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN850M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN850M can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN850M provides up to 600W for modern GPUs.
SLEEVED CABLES
The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.
DYNAMIC FDB FAN

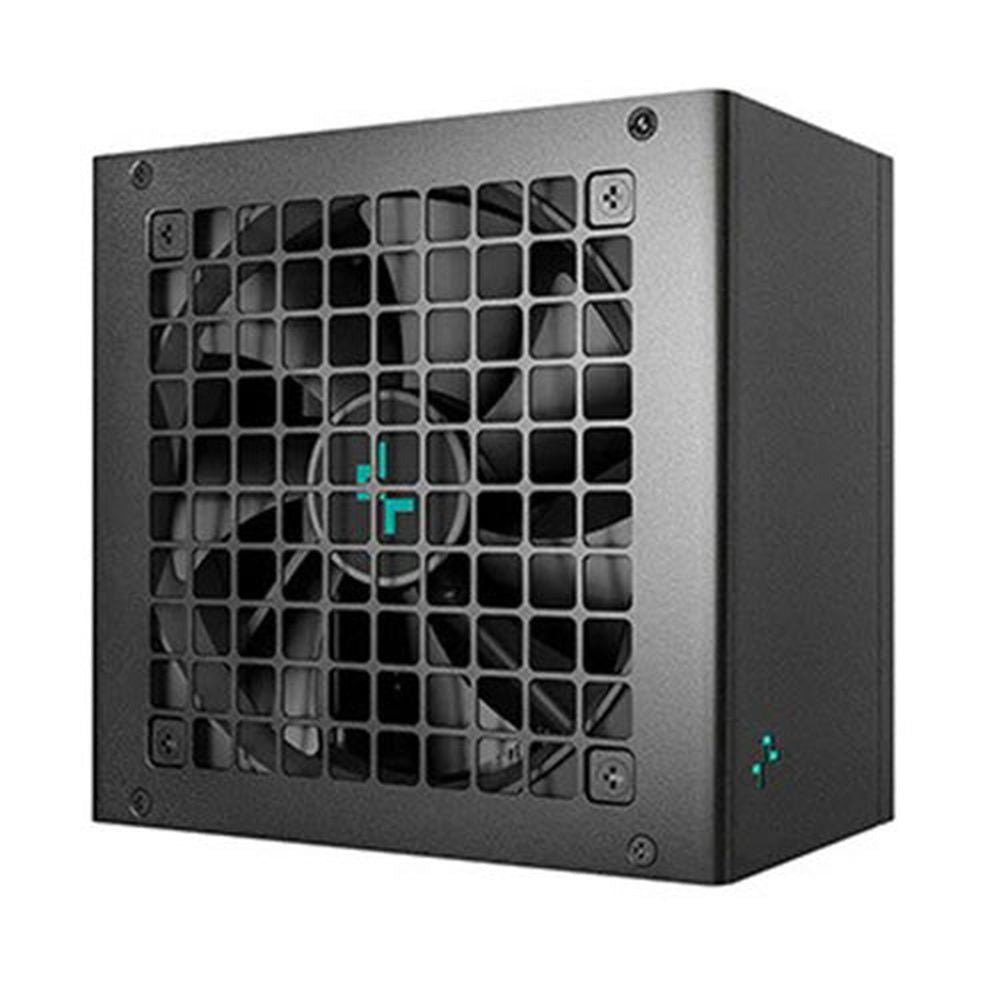

The PN850M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN850M will operate at altitudes up to 5000 meters above sea level.
PEACE OF MIND
The PN850M comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
EXCELLENT COVERAGE
The PN850M is engineered and manufactured at such a high level that
Deepcool Power Supply is offering a lengthy 10 years of trouble-free limited warranty coverage.
Specifications of DEEPCOOL PN850M 850W 80+ Gold Fully Modular Power Supply
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40? |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| P/N | R-PN850M-FC0B-IN |
