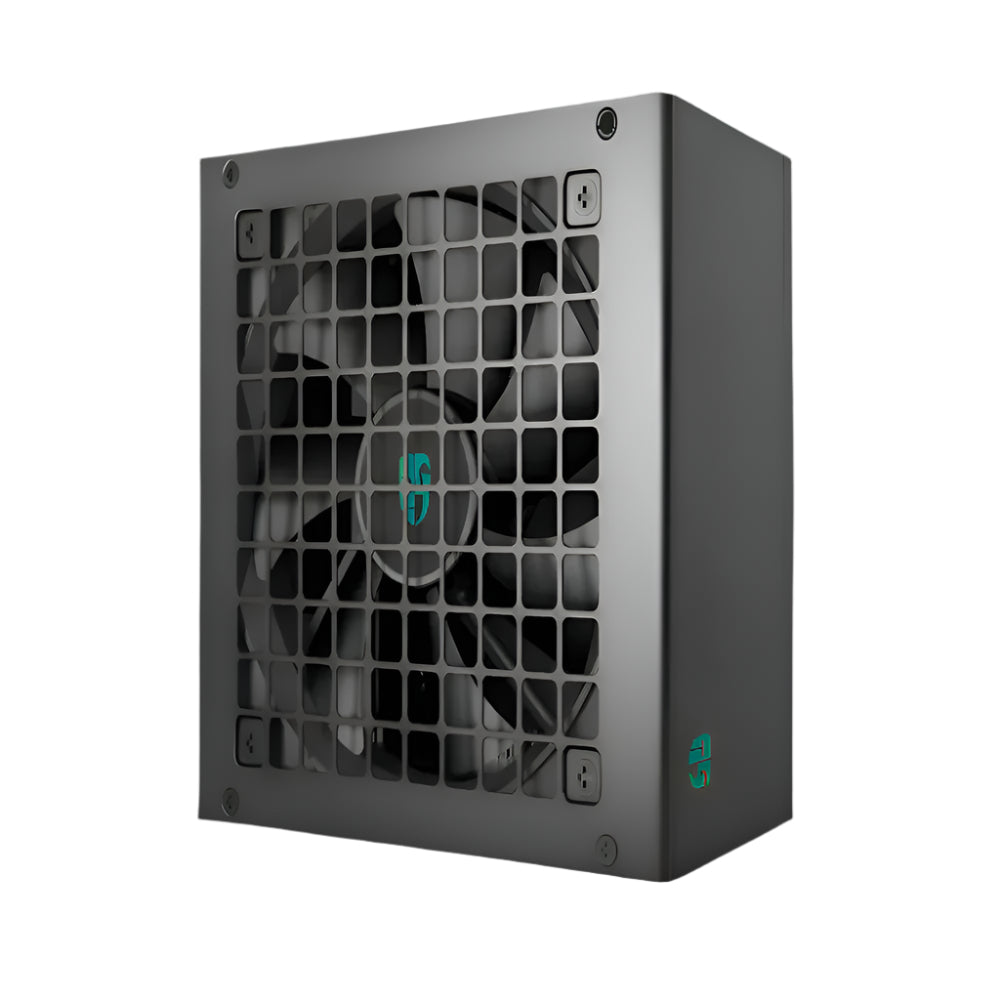

DEEPCOOL GamerStorm PN650D 650W 80+ Gold ATX 3.1 Non Modular Power Supply
- Rs. 6,375.00 Rs. 9,999.00
- Availability: In Stock
- SKU: deepcool-gamerstorm-pn650d-black
Features of DEEPCOOL GamerStorm PN650D 650W 80+ Gold ATX 3.1 Non Modular Power Supply 80 Plus Gold certified to meet a high level of power efficiency under 90% of...
Features of DEEPCOOL GamerStorm PN650D 650W 80+ Gold ATX 3.1 Non Modular Power Supply
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.
Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650D can keep the hold-up time to ≥ 16 ms under a high load of 80%.
PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN650D provides up to 450W for modern GP

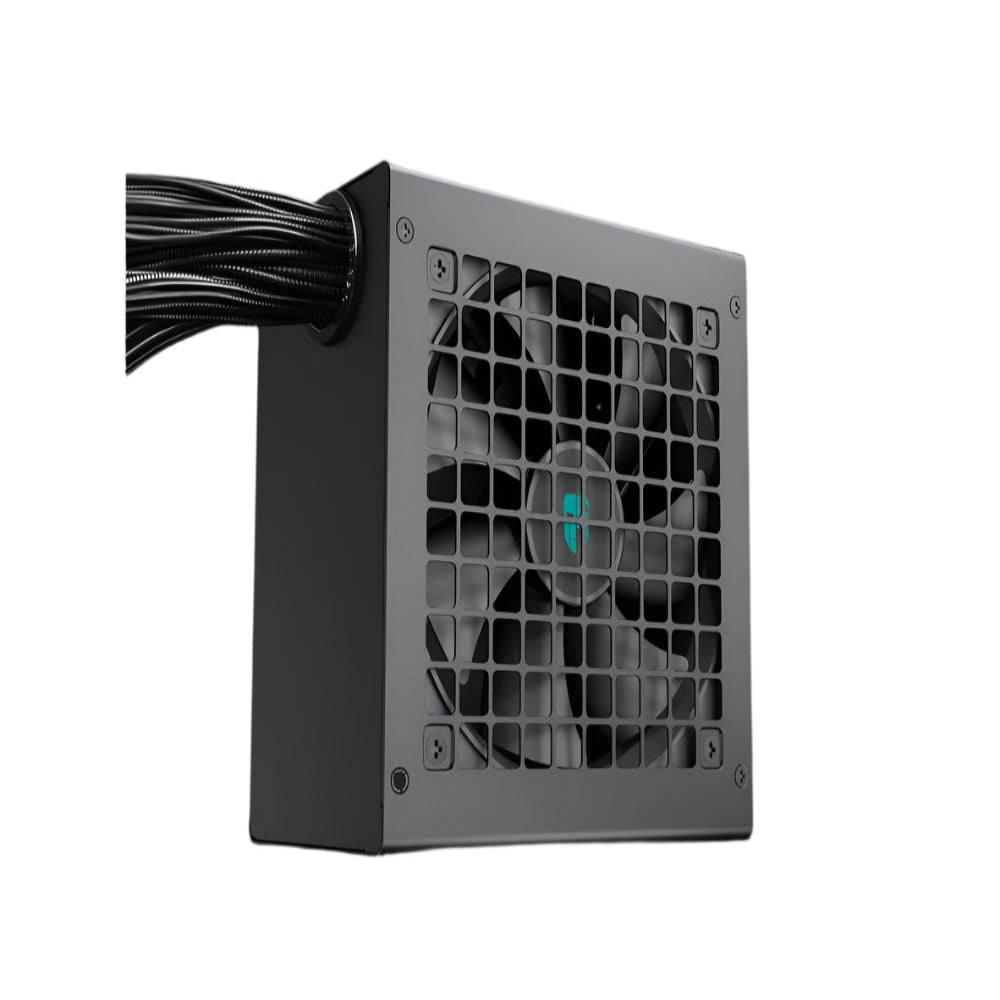

SLEEVED CABLES
The PN650D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU
DYNAMIC HYDRO BEARING FAN
The PN650D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU
HIGH QUALITY BUILD
Due to the high quality of the parts utilized, the PN650D will operate at altitudes up to 5000 meters above sea level.

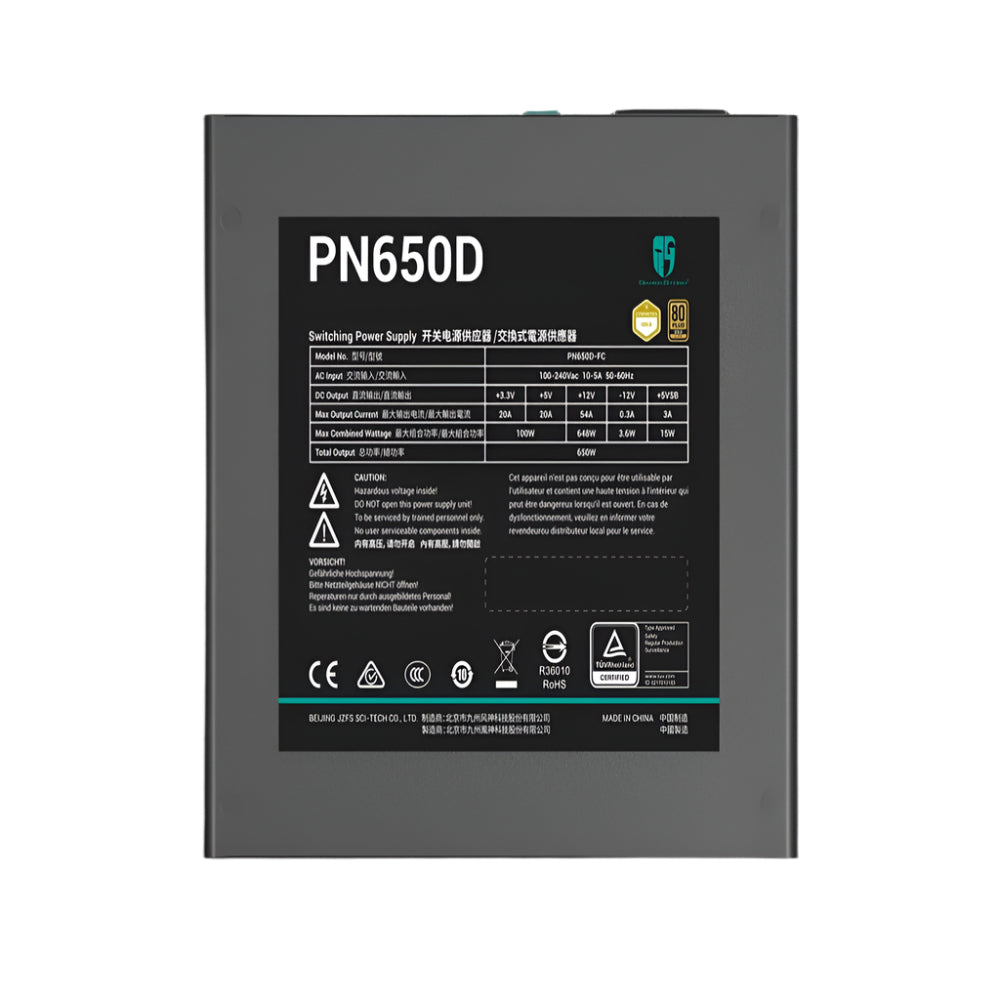

Specification of DEEPCOOL GamerStorm PN650D 650W 80+ Gold ATX 3.1 Non Modular Power Supply
| Model Name | R-PN650D-FC0B-JGIN-V2 |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | HYB(Hydro Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Chinese Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/cTUVus/RCM/EAC |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
| Warranty | 10 Years |
| Note*** | Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only. |
