- 24%
Motherboard

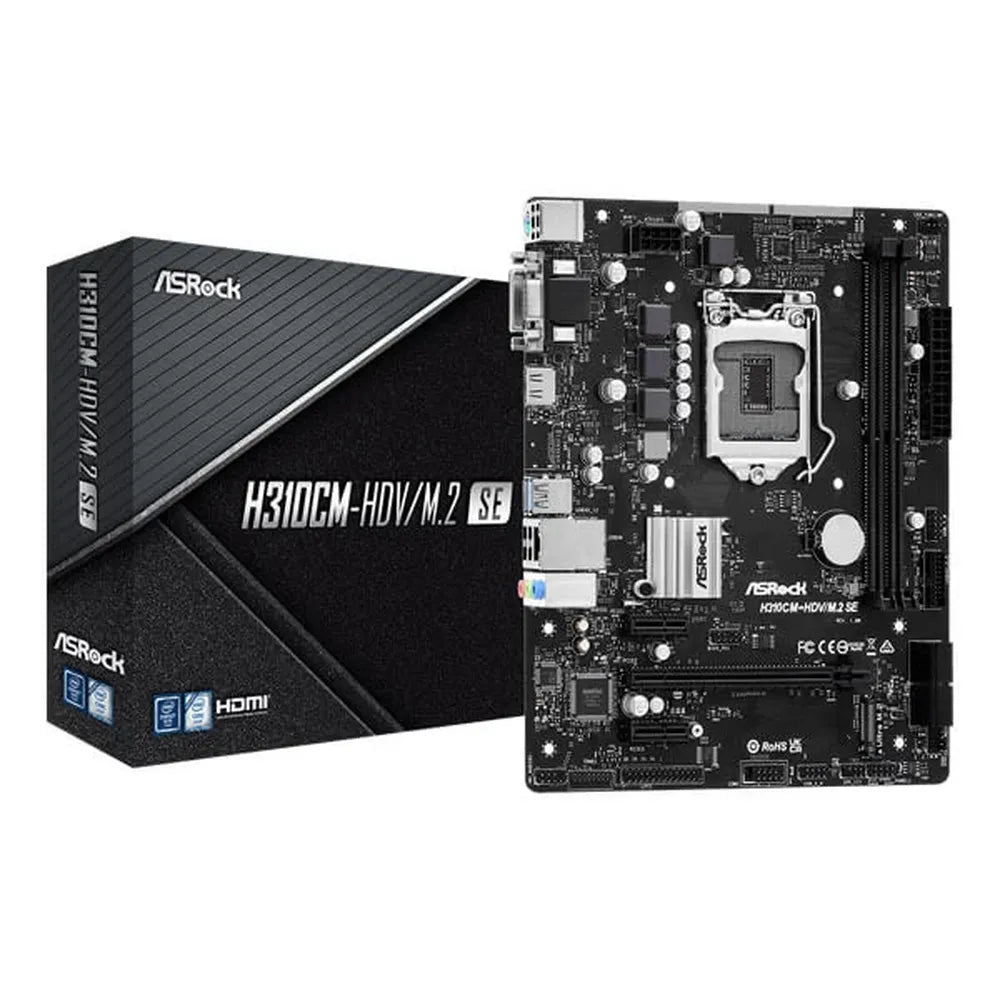

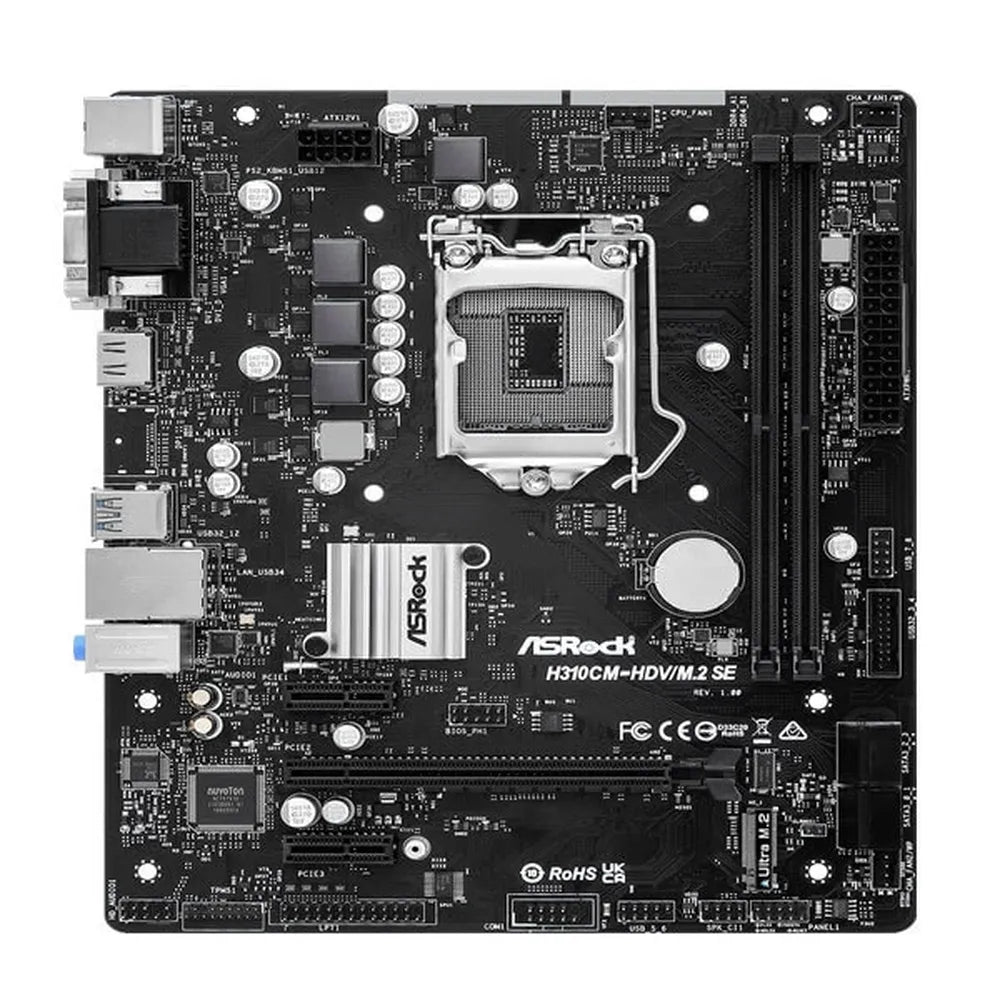

ASROCK H310CM-HDV/M.2 SE DDR4 Intel Motherboard
Rs. 7,000.00
Rs. 5,310.00
Out Of Stock
Brand : ASROCK
asrock-h310cm-hdv-m.2-se
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of ASROCK H310CM-HDV/M.2 SE DDR4 Intel Motherboard
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
4K x 2K
Composed by a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Specifications of ASROCK H310CM-HDV/M.2 SE DDR4 Intel Motherboard
| MODEL | ASROCK H310CM-HDV/M.2 SE |
| Unique Feature | ASRock Super Alloy |
| - Sapphire Black PCB | |
| - High Density Glass Fabric PCB | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | - Supports 9th, 8th, 7th and 6th Gen Intel® Core™ Processors (Socket 1151) |
| - Supports CPU up to 95W | |
| - 4 Power Phase design | |
| - Supports Intel® Turbo Boost 2.0 Technology | |
| Chipset | - Intel® Q270 |
| Memory | - Dual Channel DDR4 Memory Technology |
| - 2 x DDR4 DIMM Slots | |
| - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory* | |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) (for 7th and 6th Gen Intel® CPU only) | |
| - Max. capacity of system memory: 32GB** | |
| - Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| - 15μ Gold Contact in DIMM Slots | |
| * 9th and 8th Gen Intel® CPU support DDR4 up to 2666; 7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133. | |
| **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. | |
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| Graphics | - Three graphics output options: D-Sub, DVI-D and HDMI* |
| - Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz | |
| - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz | |
| - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz | |
| - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) | |
| - Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports | |
| - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port | |
| * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| Supports up to 3 displays simultaneously | |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| - Supports Surge Protection | |
| LAN | - Gigabit LAN 10/100/1000 Mb/s |
| - Giga PHY Intel® I219V | |
| - Supports Wake-On-LAN | |
| - Supports Lightning/ESD Protection | |
| - Supports Energy Efficient Ethernet 802.3az | |
| - Supports PXE | |
| Slots | - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* |
| - 2 x PCI Express 3.0 x1 Slots | |
| Storage | - 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug* |
| - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)** | |
| Connector | - 1 x Print Port Header |
| - 1 x COM Port Header | |
| - 1 x TPM Header | |
| - 1 x Chassis Intrusion and Speaker Header | |
| - 1 x CPU Fan Connector (4-pin)* | |
| - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** | |
| - 1 x 24 pin ATX Power Connector | |
| - 1 x 8 pin 12V Power Connector | |
| - 1 x Front Panel Audio Connector | |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)*** | |

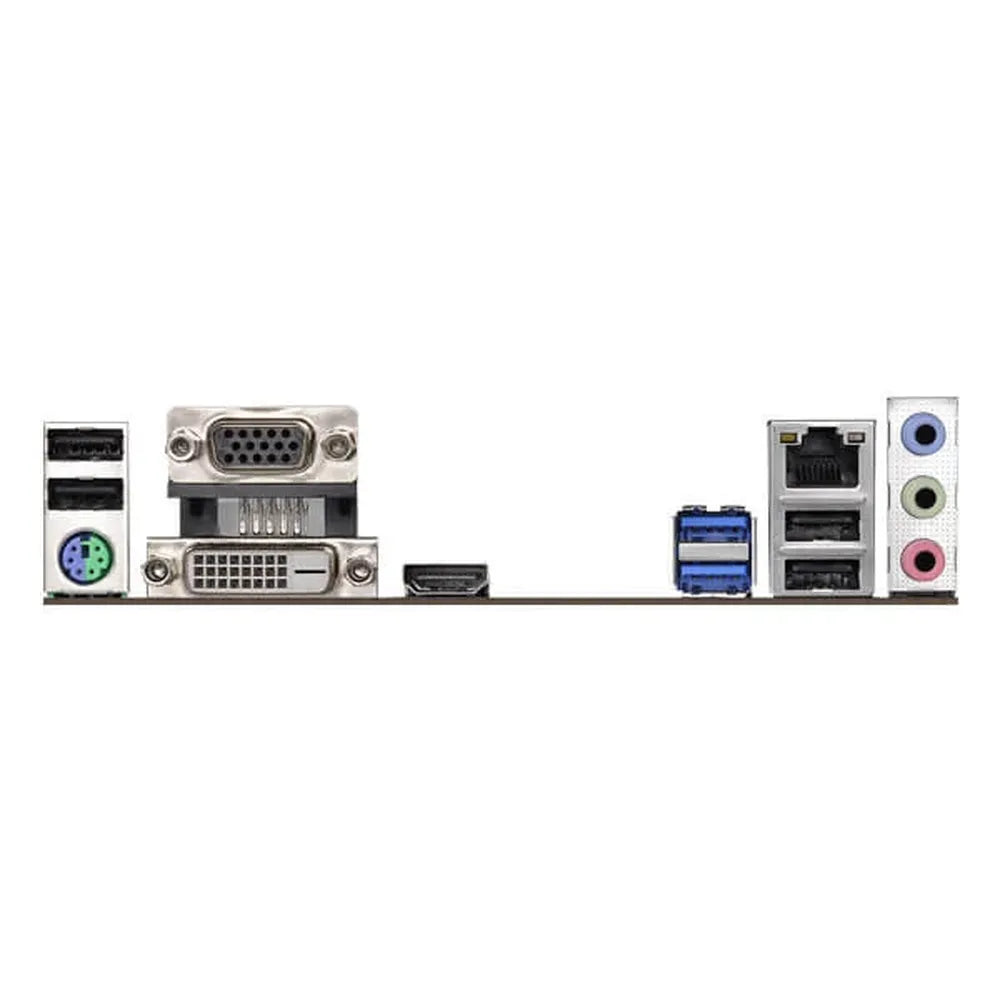

| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port |
| - 1 x D-Sub Port | |
| - 1 x DVI-D Port | |
| - 1 x HDMI Port | |
| - 4 x USB 2.0 Ports (Supports ESD Protection) | |
| - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| - HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| - ASRock A-Tuning | |
| UEFI | |
| - ASRock EZ Mode | |
| - ASRock Full HD UEFI | |
| - ASRock My Favorites in UEFI | |
| - ASRock Auto Driver Installer | |
| - ASRock Instant Flash | |
| - ASRock Internet Flash | |
| Accessories | - 1 x User Manual |
| - 1 x I/O Shield | |
| - 2 x SATA Data Cables | |
| - 1 x Screw for M.2 Socket | |
| Form Factor | - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm |
| - Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm | - Solid Capacitor design |
| OS | - Microsoft Windows® 11 64-bit / 10 64-bit (For 9th, 8th and 7th Gen Intel® CPU) |
| - Microsoft Windows® 11 64-bit / 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU) | |
| Certifications | - FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
