Features of AMD Ryzen 5 5600F 5th Generation Processor ( 4 GHz / 6 Cores / 12 Threads )

The Ryzen 5 5600F is part of the Ryzen 5 lineup, using the Zen 3 (Vermeer) architecture with Socket AM4. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 12 threads. Ryzen 5 5600F has 32 MB of L3 cache and operates at 3 GHz by default, but can boost up to 4 GHz, depending on the workload. AMD is building the Ryzen 5 5600F on a 7 nm production process using 4,150 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. You may freely adjust the unlocked multiplier on Ryzen 5 5600F, which simplifies overclocking greatly, as you can easily dial in any overclocking frequency.

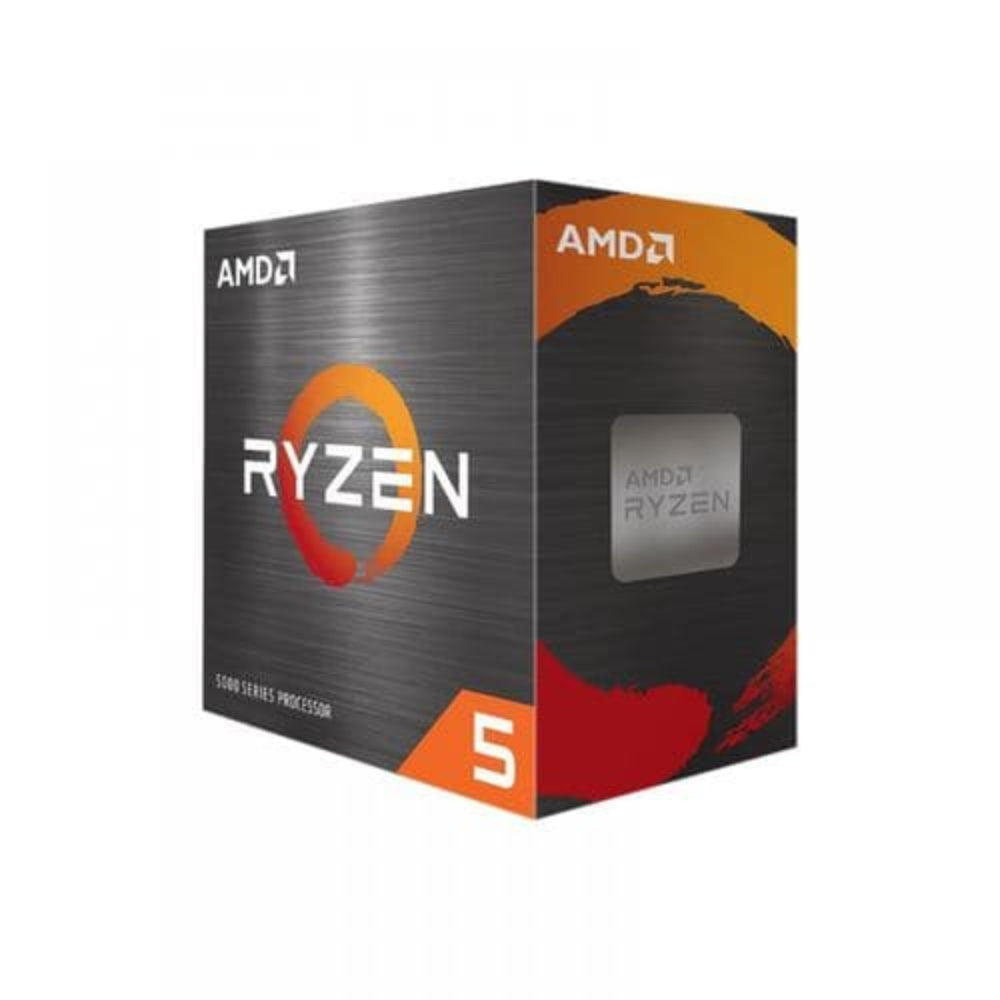

With a TDP of 65 W, the Ryzen 5 5600F consumes typical power levels for a modern PC. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s, but with overclocking (and the right memory modules) you can go even higher. ECC memory is supported, too, which is an important capability for mission-critical systems, to avoid data corruption. For communication with other components in the machine, Ryzen 5 5600F uses a PCI-Express Gen 4 connection. This processor does not have integrated graphics, you will need a separate graphics card. Inside the box you will not only find the processor, but also a Wraith Stealth cooler.

Hardware virtualization is available on the Ryzen 5 5600F, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) will run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.

Specifications of AMD Ryzen 5 5600F 5th Generation Processor ( 4 GHz / 6 Cores / 12 Threads )
