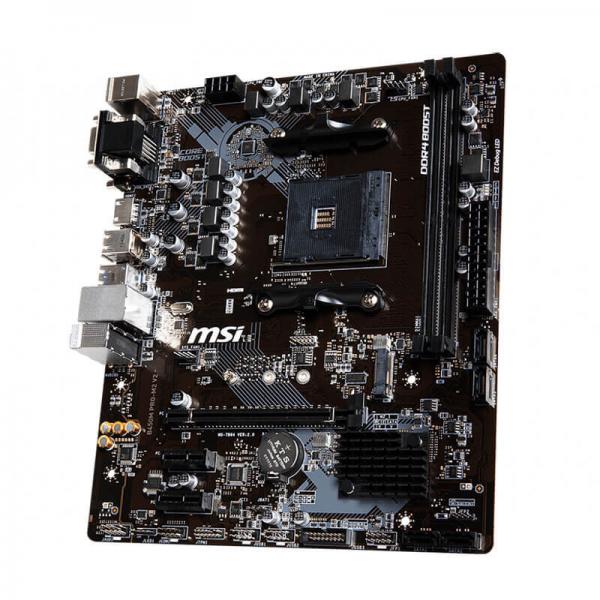

MSI B450M Pro-M2 V2 DDR4 AMD Motherboard
- Rs. 7,169.00 Rs. 10,350.00
- Availability: Out Of Stock
- SKU: MSI-B450M-PRO-M2-V2
Features Of MSI B450M Pro-M2 V2 DDR4 AMD Motherboard Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket...
Features Of MSI B450M Pro-M2 V2 DDR4 AMD Motherboard
- Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
- MSI B450M Pro-M2 V2 DDR4 Memory, up to 3466+(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- PCI-E Steel Armor: Protecting VGA cards against bending and EMI.
Specifications Of MSI B450M Pro-M2 V2 DDR4 AMD Motherboard
| Socket | AM4 |
| CPU (Max Support) | Ryzen |
| Chipset | AMD® B450 Chipset |
| DDR4 Memory | 1866/ 2133/ 2400/ 2667 MHz by JEDEC, and 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode |
| Memory Channel | Dual |
| DIMM Slots | 2 |
| Max Memory (GB) | 32 |
| PCI-E x16 | 1 |
| PCI-E Gen | Gen3 |
| PCI-E x1 | 2 |
| SATAIII | 4 |
| M.2 Slot | 1 |
| TPM (header) | 1 |
| LAN | 10/100/1000*1 |
| USB 3.1 ports (Front) | 2(Gen1, Type A) |
| USB 3.1 ports (Rear) | 4(Gen1, Type A) |
| USB 2.0 ports (Front) | 4 |
| USB 2.0 ports (Rear) | 2 |
| Serial ports(Front) | 1 |
| Parallel Port(Front) | 1 |
| Audio ports (Rear) | Realtek® ALC887 Codec |
| DVI-D | 1 |
| VGA | 1 |
| HDMI | 1 |
| DirectX | 12 |
| Form Factor | m-ATX |
| Operating System | Support for Windows® 10 64-bit |
| Support for Windows® 7 64-bit | |
| * To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. |
