Features of DEEPCOOL CG530U 4F ARGB ATX Mid Tower Cabinet ( Black )

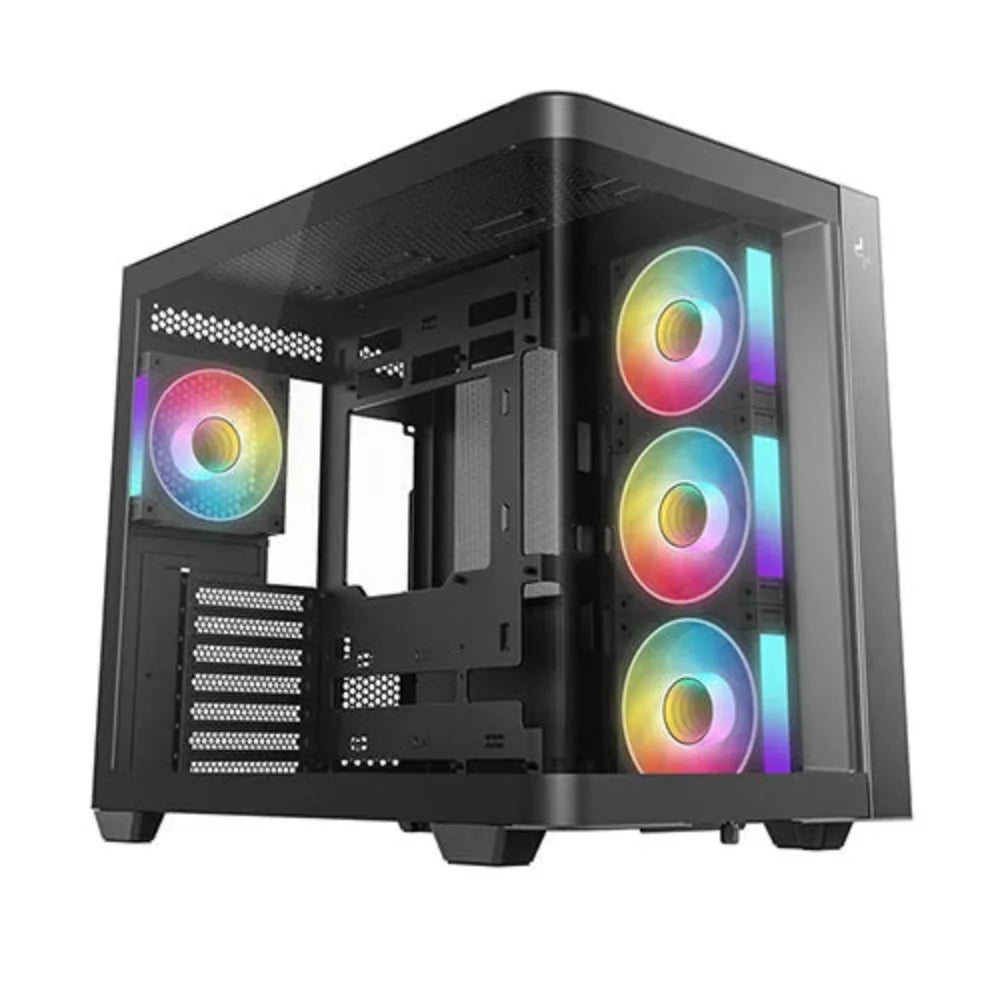

The CG530U 4F is a curved-glass panoramic case built on a dual-chamber design. Pre-installed with four ARGB fans, it comes ready for effective airflow and lighting.

SEAMLESS PANORAMIC VIEW

The CG530U 4F features a one-piece curved tempered glass panel that transitions smoothly around the corner. With no seams interrupting the line of sight, it offers an open, continuous view into the build within.

READY TO FLOW

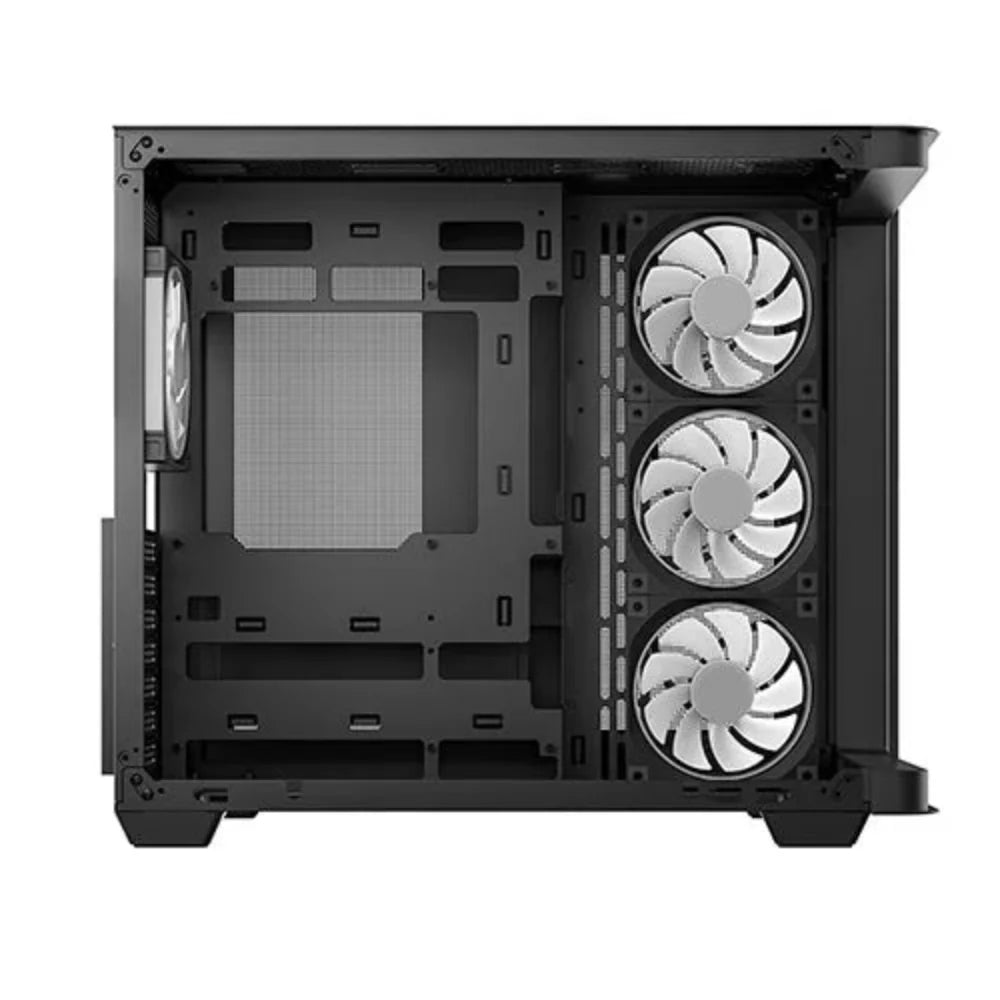

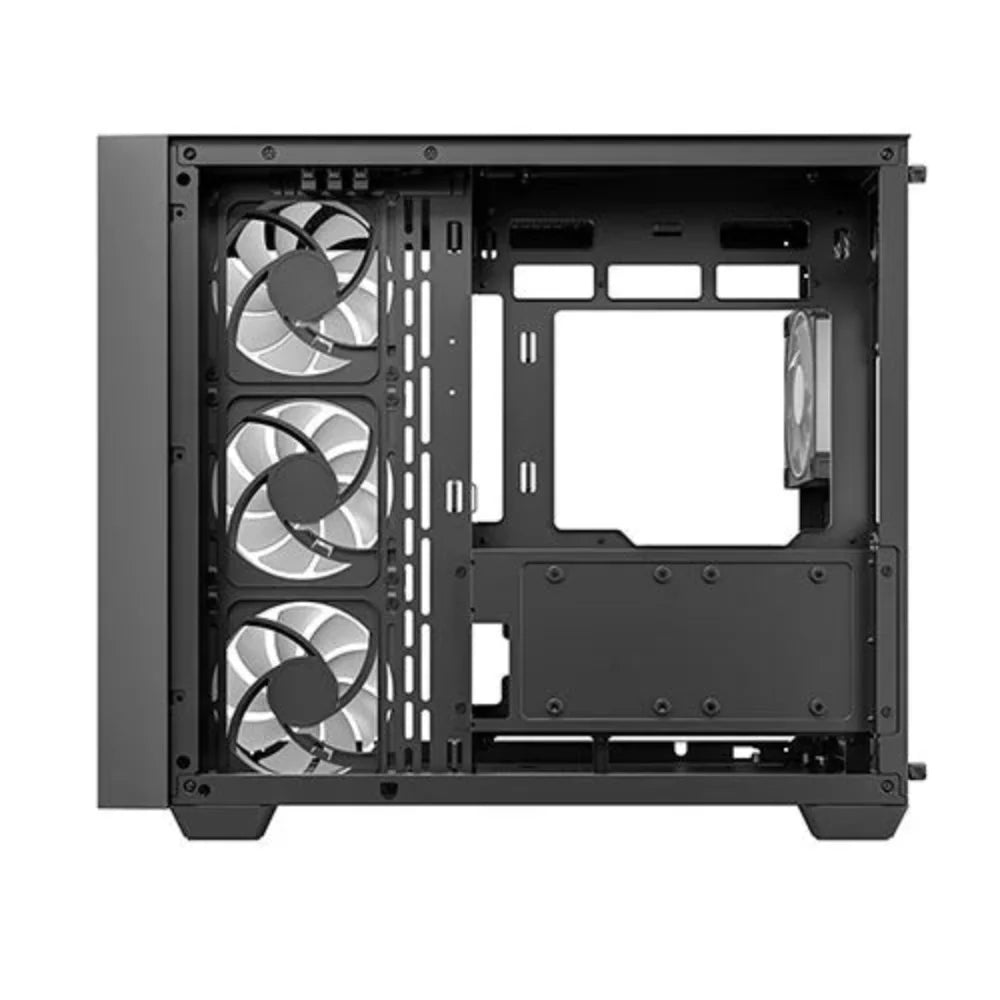

Four ARGB fans come pre-installed with three reverse-blade units on the side and one standard fan at the rear. The balanced intake and exhaust setup provides strong airflow and reliable cooling from the start.

EFFICIENT VENTILATION

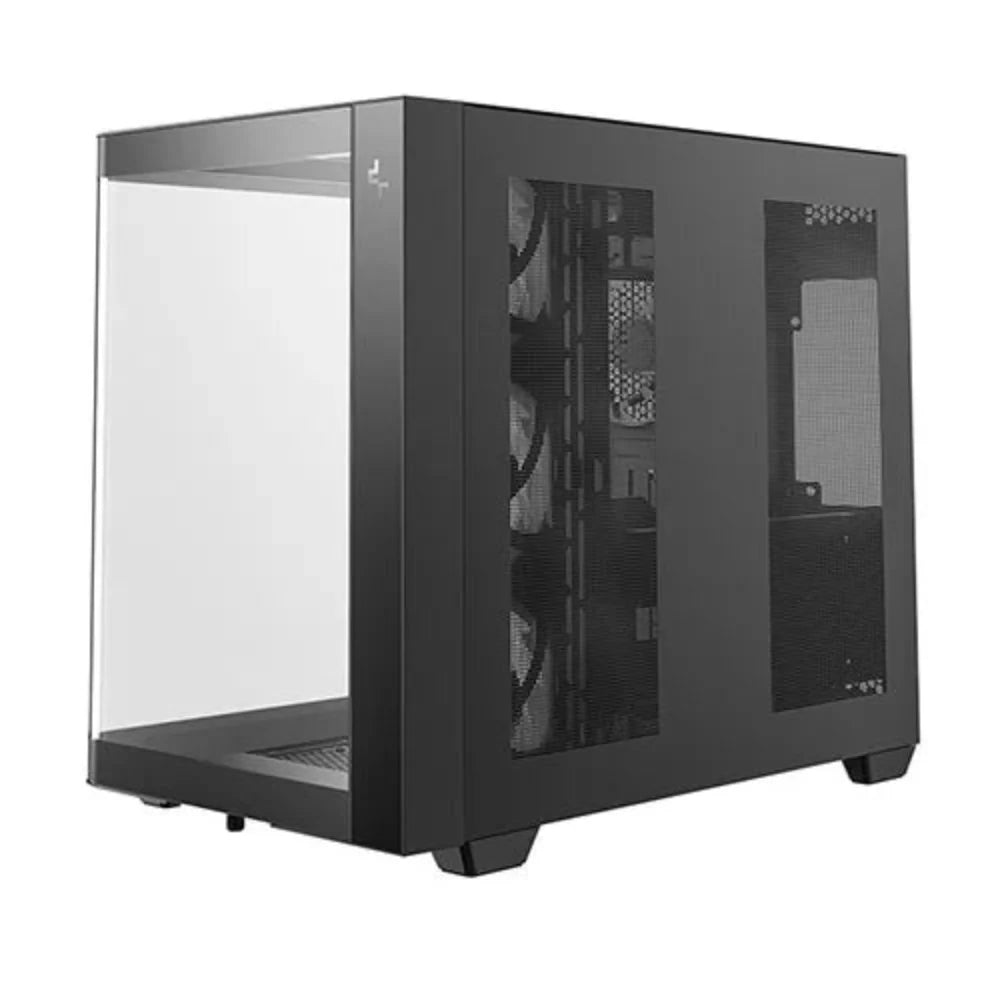

A dual-chamber layout isolates the power supply and storage drives from the main airflow. Large mesh panels maximize ventilation, with side-mounted reverse intake fans drawing in fresh air and the rear fan exhausting heat, creating a direct horizontal airflow path across the case.

MAXIMUM COOLING CAPABILITIES

Never fear the heat with CG530U 4F's exceptional cooling support. Designed to house a variety of cooling components, it offers wide compatibility for radiators and fans to keep your system running cool under any load.

BROAD HARDWARE SUPPORT

Built to handle demanding hardware, the CG530U 4F supports CPU coolers up to 160mm tall, GPUs up to 410mm long, and PSUs up to 210mm, offering broad compatibility for high-performance builds.

EASY I/O ACCESS

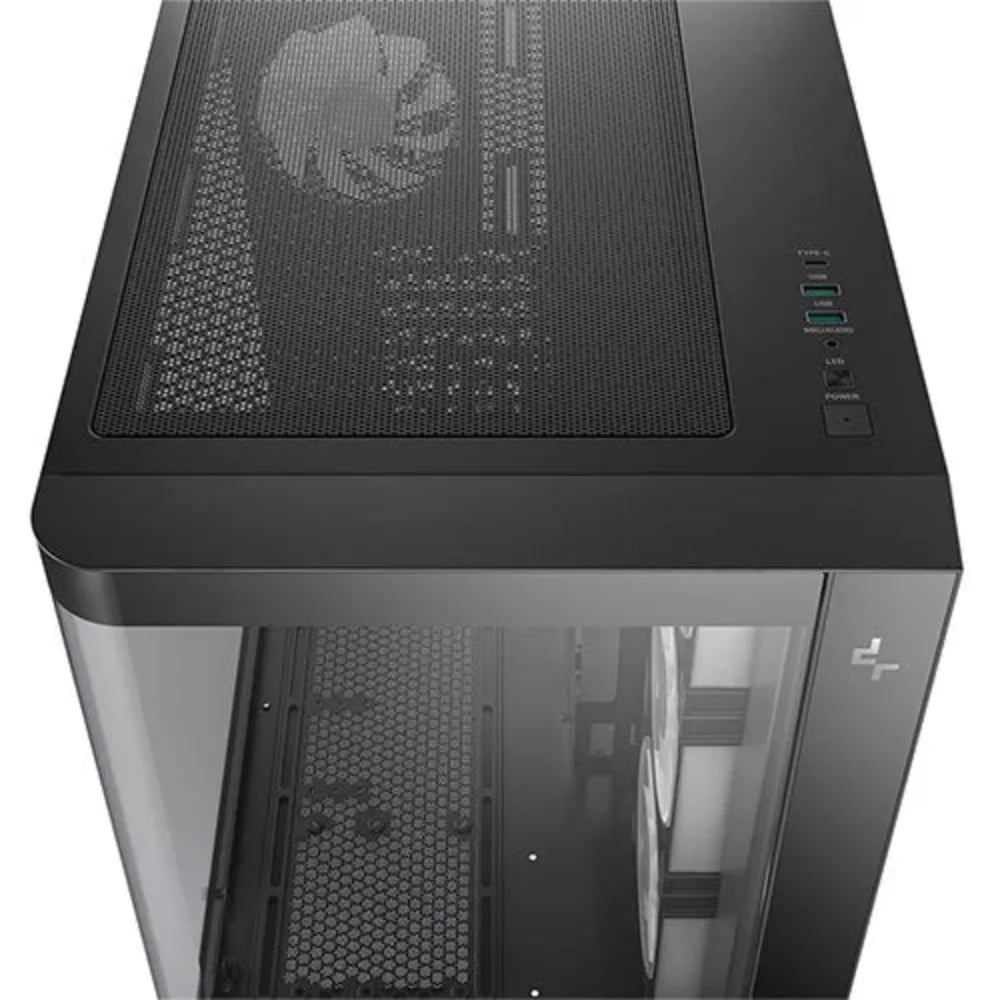

The top I/O panel provides convenient access with two USB 3.0 ports, a Gen2 Type-C port, and a combined audio/mic jack.

Product Dimensions: 475×285×380mm(L×W×H)

Net Weight: 7.3kg

Materials: ABS+SPCC+Tempered Glass

Motherboard Support: ITX/Micro-ATX/ATX(Rear Connector)/Micro-ATX(Rear Connector)

Front I/O Ports: USB3.0 x2,Gen2 Type-C x1,Audio/Mic x1,LED

3.5" Drive Bays: 2

2.5" Drive Bays: 2+1

Expansion Slots: 7 Slots

Pre-Installed Fans: Side: 3×120mm / Rear: 1×120mm

Fan Support

• Front: NA
• Top: 3×120mm/2x140mm
• Side: 3×120mm/2x140mm
• Rear: 1×120mm
• Bottom: 3×120mm/3.5 HDD+2x120mm/2.5 SSD+2x120mm

Radiator Support

• Front: NA
• Top: 120/140/240/280/360mm
• Side: 120/140/240/280mm
• Bottom: 120/240/360mm

CPU Cooler Height Limit: 160mm

GPU Size Limit: 410mm

Power Supply Type: ATX PS2 (maximum length: 210mm)/SFX/SFX-L

Specifications of DEEPCOOL CG530U 4F ARGB ATX Mid Tower Cabinet ( Black )
