Motherboard

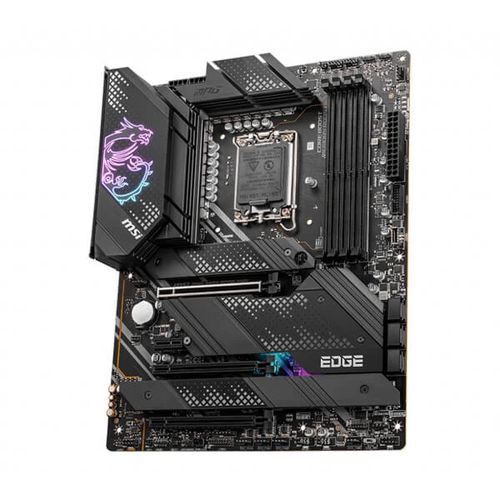

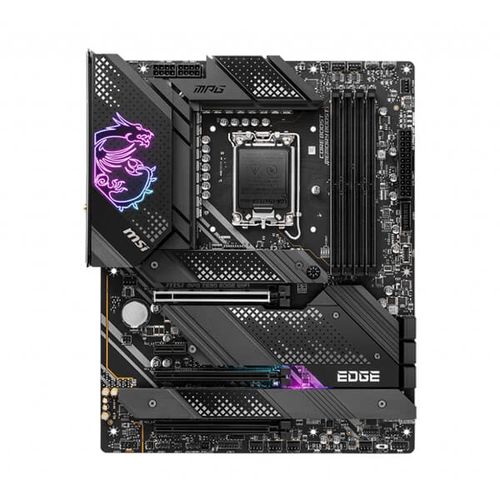

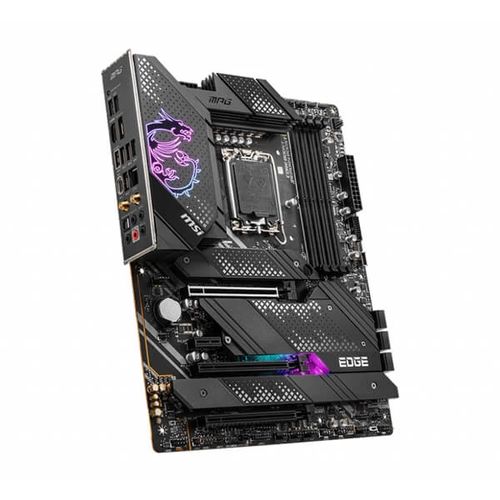

MSI MPG Z690 Edge Wifi DDR5 Intel Motherboard
Rs. 34,700.00
Rs. 31,795.00
In Stock
Brand : MSI
MSI-Z690-Edge-WiFi-DDR5
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of MSI MPG Z690 Edge Wifi DDR5 Intel Motherboard
Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, up to 6400+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: Direct 16+1+1 phases power, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Aluminum cover with heatsink, heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
MYSTIC LIGHT: 16.8 million colors / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports RGB and RAINBOW(ARGB) LED strips and Ambient devices.
2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Supports Intel Core 12th Gen Processors
The MPG Z690 EDGE WIFI motherboard supports 12th Gen Intel Core processors.
- Form Factor: ATX
- Socket Type: LGA 1700
- Chipset: Intel Z690
Direct 16+1+1 Phase VRM with 75A SPS
The robust VRM design features MSI exclusive Core Boost Technology powered by 2 x 8-pin CPU power connectors:
1. Digital PWM IC
2. 1 Phase GT Power
3. 16 Direct Power Phases (Smart Power Stage / 75A)
4. 1 Phase AUX Power
A 6-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.
Premium Cooling Solution
VRM Cooling: Features heavy-plated heatsinks, connecting heat pipe, choke and 7W/mK thermal pads for improved thermal dissipation.
SSD Cooling
M.2 Shield Frozr prevents thermal throttling.
System Cooling
Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.
4 x DDR5 Dual Channel (6400+ MHz Overclocked*)
Memory Boost: A fully-isolated circuit delivers pure DDR5 data signals for optimal gaming and overclocking performance.
XMP profiles in MSI MPG Z690 Edge Wifi DDR5 BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.
Specifications of MSI MPG Z690 Edge Wifi DDR5 Intel Motherboard
| Processor |
Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors 1 Processor socket LGA1700 |
| Chipset | Intel® Z690 Chipset |
| Memory |
4x DDR5 memory slots, support up to 128GB1 Supports 1R 4800 MHz, 2R 4000 MHz (by JEDEC & POR)1 Max. overclocking frequency: 1 DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots |
3x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From Z690 chipset |
| Onboard Graphics |
1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz1/ 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz1/ 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| Storage |
6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2~4 support Intel® Optane™ Memory Supports Intel® Smart Response Technology for Intel® Core™ processors |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices1 Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices SATAA & SATAB do not support RAID function. |
| USB |
Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
| Audio |
Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WiFi & Bluetooth |
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in WIN10 21H1 and Windows 11. Bluetooth 5.2 will be ready in WIN10 21H1 and Windows11. |
| Internal connectors |
1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| LED Feature |
1x 4-pin RGB LED connector 3x 3-pin RAINBOW LED connectors 1x EZ LED Control switch 4x EZ Debug LED |

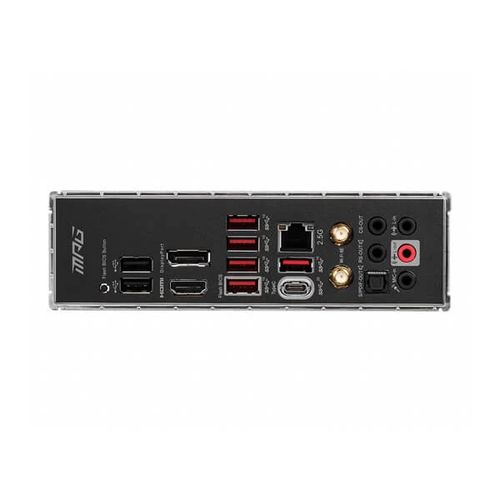

| Back panel ports |
DisplayPort 2.5G LAN Wireless Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out |
| Dimensions |
ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
