Motherboard

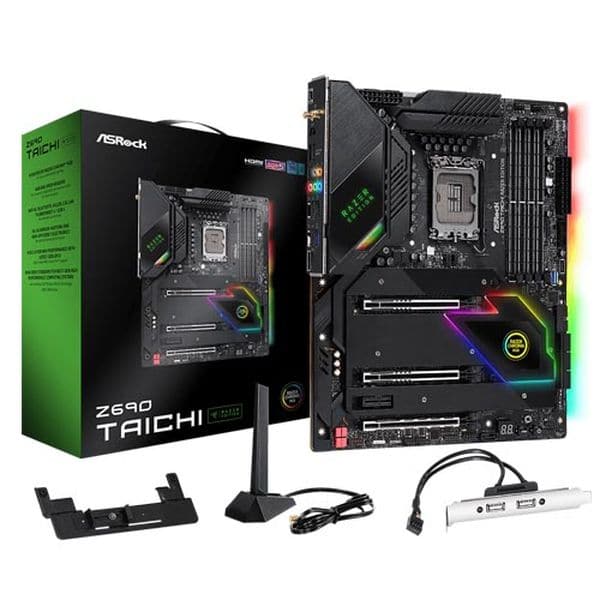

ASROCK Z690 Taichi Razer Edition DDR5 Intel Motherboard
Rs. 64,999.00
Rs. 59,399.00
In Stock
Brand : ASROCK
asrock-z690-taichi-razer-edition-ddr5-motherboard
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Feature of ASROCK Z690 Taichi Razer Edition DDR5 Intel Motherboard
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 20 Phase SPS Dr.MOS Power Design
- Supports DDR5 6400MHz (OC)
- 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C
-
Realtek ALC1220 7.1 CH HD Audio Codec,
ESS SABRE 9218 DAC, WIMA Audio Caps -
6 SATA3, 1 Independent SATA3
2 Hyper M.2 (PCIe Gen4 x4)
1 M.2 (PCIe Gen3 x2 & SATA3)
2 Thunderbolt™ 4/USB4 Type-C
1 USB 3.2 Gen2x2 Front Type-C
2 USB 3.2 Gen2 (Rear)
8 USB 3.2 Gen1 (4 Rear, 4 Front)
1 Independent USB 3.2 Gen1 Type A Port - Killer E3100 2.5G LAN, Intel® Gigabit LAN
- Killer AX1690 802.11ax (WiFi 6E) + Bluetooth
- Killer DoubleShot™ Pro X3
- Intel® Double Connect Technology
- Razer Synapse
PCIe 5.0 + Surface-Mount Tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.
ASRock Graphics Card Holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.
POLYCHROME RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High Speed M.2 Solution
ASROCK Z690 Taichi Razer Edition motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. (*Wi-Fi module is not included.)
Specifications of ASROCK Z690 Taichi Razer Edition DDR5 Intel Motherboard
| Unique Feature | ASRock USB 4.0 |
| ASRock USB 4.0 Thunderbolt™ 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) | |
| ASRock USB 3.2 Gen2 | |
| ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) | |
| ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| ASRock Super Alloy | |
| XXL Aluminum Alloy Heatsink | |
| Premium Power Choke | |
| 105A SPS (Smart Power Stage) | |
| Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke) | |
| Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) | |
| I/O Armor | |
| Matte Black PCB | |
| High Density Glass Fabric PCB | |
| 8 Layer PCB | |
| 2oz Copper PCB | |
| Server-Grade Low-Loss PCB | |
| Killer 2.5G LAN | |
| 802.11ax Wi-Fi 6E | |
| Killer DoubleShot™ Pro X3 | |
| Intel® Double Connect Technology | |
| ASRock Auto Driver Installer | |
| ASRock Steel Slots | |
| ASRock Full Coverage M.2 Heatsink | |
| ASRock Hyper M.2/b> (PCIe Gen4x4) | |
| ASRock Ultra USB Power | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | Supports 12th Gen Intel® Core™ Processors (LGA1700) |
| Digi Power design | |
| 20 Power Phase design | |
| Supports Intel® Hybrid Technology | |
| Supports Intel® Turbo Boost Max 3.0 Technology | |
| Supports ASRock Hyper BCLK Engine V | |
| Chipset | Intel® Z690 |
| Memory | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots | |
| Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* | |
| Max. capacity of system memory: 128GB | |
| Supports Intel® Extreme Memory Profile (XMP) 3.0 | |
| 15μ Gold Contact in DIMM Slots | |
| *Supports DDR5 4400 (1DPC) / 3600 (2DPC) natively. | |
| BIOS | 256Mb AMI UEFI Legal BIOS with multilingual GUI support |
| ACPI 6.0 Compliant wake up events | |
| SMBIOS 2.7 Support | |
| CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment | |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) |
| Three graphics output options: 1 x HDMI and 2 x Intel® Thunderbolt™ 4 | |
| Supports Triple Monitor | |
| Supports Intel® Thunderbolt™ 4 with max. resolution up to 8K (7680×4320) @ 60Hz** | |
| Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz | |
| Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port and Intel® Thunderbolt™ 4 Ports | |
| *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| *Supports two 4K displays or one 8K display | |
| Only the CPU’s embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics. | |
| Audio | 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) |
| Premium Blu-ray Audio support | |
| Supports Surge Protection | |
| WIMA Audio Capacitors (For Front Outputs) | |
| ESS SABRE9218 DAC for Front Panel Audio (130dB SNR) | |
| Pure Power-In | |
| Direct Drive Technology | |
| PCB Isolate Shielding | |
| Impedance Sensing on Rear Out port | |
| Individual PCB Layers for R/L Audio Channel | |
| Gold Audio Jacks | |
| 15μ Gold Audio Connector | |
| Nahimic Audio | |
| LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) |
| Supports Killer LAN Software | |
| Supports Killer DoubleShot™ Pro X3 | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports UEFI PXE | |
| Wireless LAN | 802.11ax Wi-Fi 6E Module |
| Supports IEEE 802.11a/b/g/n/ax | |
| Supports Dual-Band 2×2 160MHz with extended 6GHz band support* | |
| 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| Supports Bluetooth + High speed class II | |
| Supports MU-MIMO | |
| Supports Killer DoubleShot™ Pro X3 | |
| Supports Intel® Double Connect Technology | |
| *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. | |
| A 6GHz compatible router is required for 6E functionality. | |
| Slots | CPU: |
| 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes* | |
| Chipset: | |
| 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* | |
| 1 x PCIe 3.0 x1 Slot (PCIE3)* | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT) | |
| Supports AMD CrossFire™ | |
| 15μ Gold Contact in VGA PCIe Slots (PCIE1 and PCIE2) | |
| *Supports NVMe SSD as boot disks | |
| Storage | CPU: |
| 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| 1 x M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* | |
| 6 x SATA3 6.0 Gb/s Connectors | |
| 1 x Independent SATA3 6.0 Gb/s Connector | |
| *Supports Intel® Optane™ Memory H Series (M2_2 only) | |
| Supports Intel® Volume Management Device (VMD) | |
| Supports NVMe SSD as boot disks | |
| Supports ASRock U.2 Kit | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
| Connector | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header* | |
| 3 x Addressable LED Headers** | |
| 1 x CPU Fan Connector (4-pin)*** | |
| 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| 1 x VRM/Water Pump Fan Connector (4-pin)****** | |
| 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| 1 x Front Panel Audio Connector (15μ Gold Audio Connector) | |
| 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x Independent USB 3.2 Gen1 Type-A Connector | |
| 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) | |
| 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) | |
| 1 x Clear CMOS Button | |
| 1 x Dr. Debug with LED | |
| 1 x Power Button with LED | |
| 1 x Reset Button with LED | |
| *Supports in total up to 12V/3A, 36W LED Strip | |
| **Support in total up to 5V/3A, 15W LED Strip | |
| ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. | |
| ****CPU_FAN2/WP_3A supports the water cooler fan of maximum 3A (36W) fan power. | |
| CPU_FAN3/WP supports the water cooler fan of maximum 2A (24W) fan power. | |
| *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. | |
| ******The VRM/Water Pump Fan Connector supports the VRM fan of maximum 2A (24W) fan power. | |
| CPU_FAN2/WP_3A, CPU_FAN3/WP, VRM_FAN1/WP, CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |
| Rear Panel I/O | 2 x Antenna Ports |
| 1 x HDMI Port | |
| 1 x Optical SPDIF Out Port | |
| 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection) | |
| 2 x USB 4.0 Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt™ protocol) (Supports ESD Protection)* | |
| 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)** | |
| 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) | |
| 1 x BIOS Flashback Button | |
| HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks with LED) | |
| *Supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging | |
| **USB3_2, USB3_3 and USB3_4 are from Intel® Z690; USB3_1 is from ASMedia ASM3042. | |
| USB3_1_2 are the Lightning Gaming Ports. | |
| Ultra USB Power is supported on USB3_3 port. | |
| ACPI wake-up function is not supported on USB3_3 port. | |
| Software and UEFI | Software |
| ASRock Motherboard Utility (A-Tuning) | |
| Killer Control Center* | |
| Razer Synapse 3** | |
| ASRock EZ Mode | |
| ASRock Full HD UEFI | |
| ASRock My Favorites in UEFI | |
| ASRock Auto Driver Installer | |
| ASRock Instant Flash | |
| ASRock Internet Flash | |
| ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| **Razer Synapse 3 can be downloaded from razer.com/synapse-3. UEFI | |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version) |
| Accessories | Quick Installation Guide, Support CD |
| 4 x SATA Data Cables | |
| 1 x Graphics Card Holder | |
| 1 x Wireless Dongle USB Bracket | |
| 1 x 3010 Cooling Fan with Bracket and Screw Package | |
| 1 x 4010 Cooling Fan Bracket and Screw Package | |
| 1 x ASRock WiFi 2.4/5/6 GHz Antenna | |
| 3 x Screws for M.2 Sockets | |
| 1 x Standoff for M.2 Socket | |
| Hardware Monitor | Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump, VRM/Water Pump, MOS Fans |
| Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump, VRM/Water Pump, MOS Fans | |
| Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump, VRM/Water Pump, MOS Fans | |
| Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, +0.82V PCH, +1.05V PCH, +1.05V PROC, DRAM, VCCIN_AUX, VCCSA | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| 8 Layer PCB | |
| 2oz Copper PCB | |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| CEC Tier II ready | |
| **Features, Price and Specifications are subject to change without notice to customer. |
Customer questions & answers
Similar Brand
Shop more
- 66%
SSD
WESTERN DIGITAL Blue SN570 1TB M.2 NVME Gen3 Solid State Drive ( SSD )
Rs. 4,559.50
Rs. 13,500.00
- 45%
- 49%
- 31%
- 16%
- 39%
SSD
WESTERN DIGITAL Blue 1TB 3D NAND 3.5 SATA Internal Solid State Drive ( SSD )
Rs. 4,686.00
Rs. 7,799.00
- 95%
- 41%
Featured Products
COLORFUL GeForce RTX 5050 Battle AX NB DUO 8GB-V Nvidia Graphic Card
Rs. 26,961.00
Rs. 57,346.00
COLORFUL iGame GeForce RTX 5050 Ultra W Duo OC 8GB-V White NVIDIA Graphic Card
Rs. 29,500.00
Rs. 56,499.00
BENQ RD320U 32 Inch 4K UHD 60Hz IPS Panel 98% SRGB 5MS Adaptive Freesync Professional Monitor
Rs. 58,999.00
Rs. 79,999.00
Top Rated Products
ZOTAC Gaming GeForce RTX 5090 Solid OC White 32GB Nvidia Graphic Card
Rs. 286,000.00
Rs. 370,000.00
ZOTAC GAMING GeForce RTX 5050 Twin Edge OC 8GB Nvidia Graphic Card
Rs. 28,935.00
Rs. 43,475.00
VIEWSONIC VA3209U 32 Inch 2K QHD 75Hz IPS Panel 104% SRGB 4MS AMD Freesync Gaming Monitor
Rs. 22,399.00
Rs. 59,499.00
Top Selling Products
WESTERN DIGITAL Blue SN570 1TB M.2 NVME Gen3 Solid State Drive ( SSD )
Rs. 4,559.50
Rs. 13,500.00
SAMSUNG 970 EVO Plus 1TB M.2 NVME Gen3 Solid State Drive ( SSD )
Rs. 9,971.50
Rs. 18,149.00
G.SKILL Ripjaws V 16GB ( 8GB x 2 ) 3200MHz DDR4 RAM (CL16 )
Rs. 6,535.00
Rs. 12,999.00
Worldwide Delivery
With sites in 5 languages, we ship to over 200 countries & regions.
Safe Payment
Pay with the world’s most popular and secure payment methods.
Shop with Confidence
Our Buyer Protection covers your purchase from click to delivery.
24/7 Help Center
Round-the-clock assistance for a smooth shopping experience.
