- 31%
Motherboard

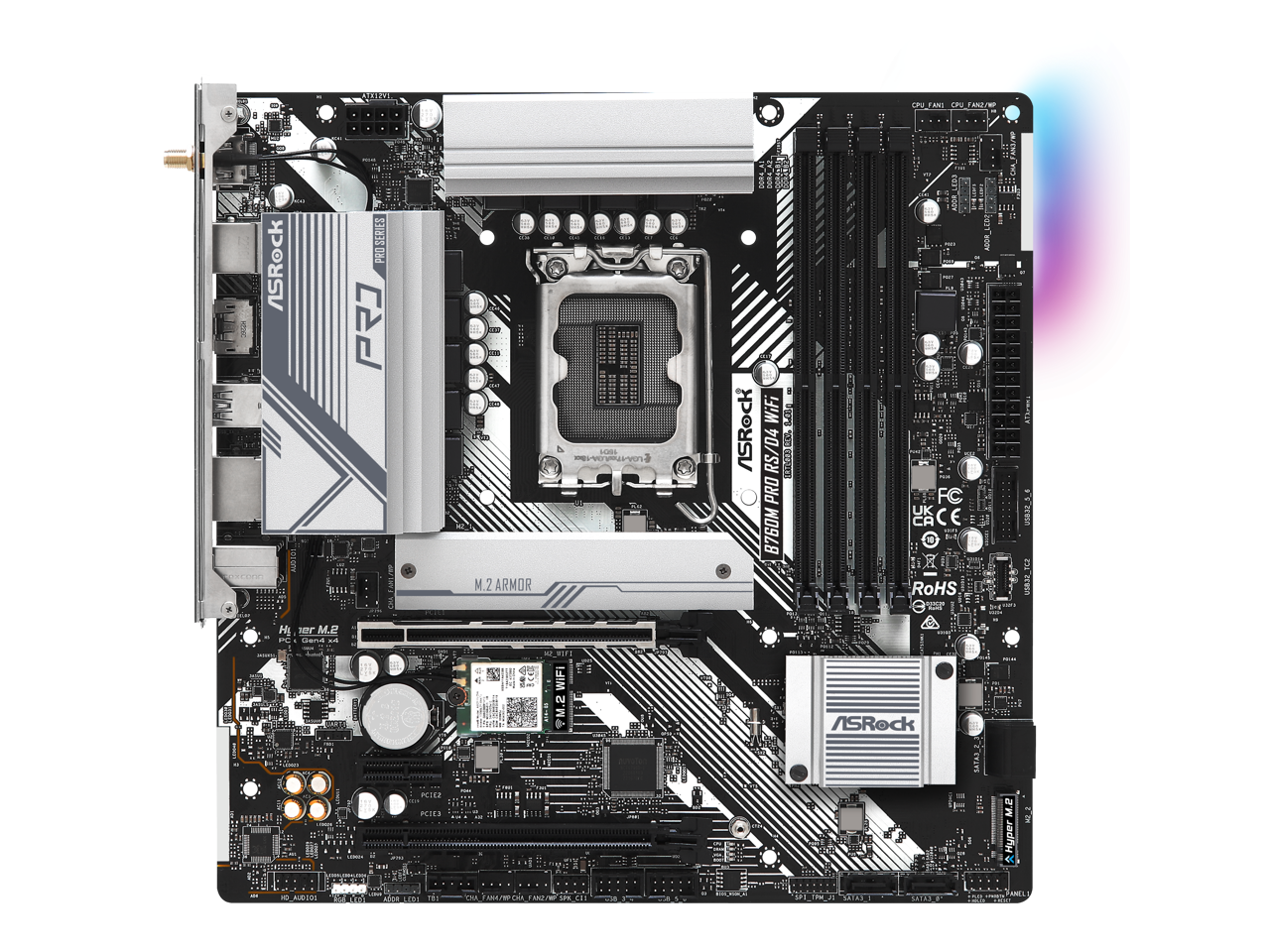

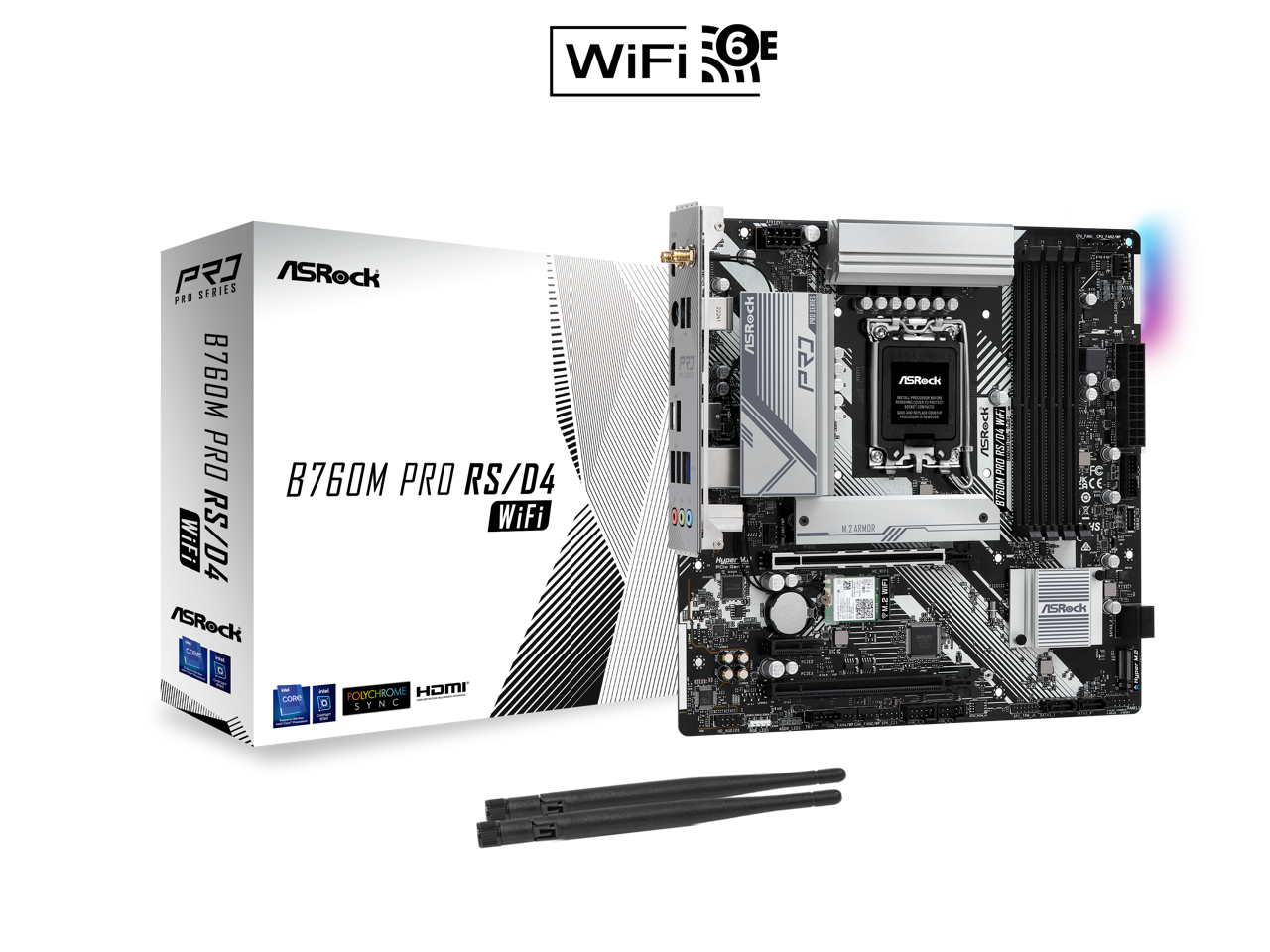

ASROCK B760M Pro RS/D4 Wifi DDR4 Intel Motherboard
Rs. 19,799.00
Rs. 13,495.00
In Stock
Brand : ASROCK
Asrock-B760M-Pro-RS-DDR4-Wifi
Safe Payment
Pay with the world’s most payment methods.
Confidence
Protection covers your purchase
Worldwide Delivery
Ship to over 200 countries & regions.
Hotline
+91-99250 02827
Features of ASROCK B760M Pro RS/D4 Wifi DDR4 Intel Motherboard
- Supports 13th Gen & 12th Gen Intel® Core Processors (LGA1700)
- Supports DDR4 5333MHz (OC)
- Vcore with Dr.MOS design, delivering smoother and neater power to the CPU
- The LAN driver has already prepacked in BIOS ROM, simply follow the instructions and install all necessary drivers automatically right after installing the operation system
- USB 3.2 Gen1 Type-C that delivers up to 5Gbps data transfer rate
- Better and faster internet traffic with lower latency
- Fitting chassis perfectly without any mechanical issue
- Enjoy the faster connectivity experience for gaming, file transfers and backups
Specifications of ASROCK B760M Pro RS/D4 Wifi DDR4 Intel Motherboard
| Unique Feature | Rock-Solid Durability |
| - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT | |
| - Pre-Installed I/O Shield | |
| - ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology | |
| Ultrafast Connectivity | |
| - 2.5G LAN, | |
| 802.11ax Wi-Fi 6EModule | |
| EZ Update | |
| - ASRock Auto Driver Installer | |
| EZ Troubleshooter | |
| CPU | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
| - Supports Intel® Hybrid Technology | |
| - Supports Intel® Turbo Boost Max 3.0 Technology | |
| - Supports Intel® Thermal Velocity Boost (TVB) | |
| - Supports Intel® Adaptive Boost Technology (ABT) | |
| Chipset | - Intel® B760 |
| Memory | - Dual Channel DDR4 Memory Technology |
| - 4 x DDR4 DIMM Slots | |
| - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* | |
| - Supports ECC UDIMM memory modules (operate in non-ECC mode) | |
| - Max. capacity of system memory: 128GB | |
| - Supports Intel® Extreme Memory Profile (XMP) 2.0 | |
| *1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively. | |
| 1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively. | |
| 2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively. | |
| 2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively. | |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) |
| - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz | |
| - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz | |
| *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| - Nahimic Audio | |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| - Dragon RTL8125BG | |
| - Supports Dragon 2.5G LAN Software | |
| - Smart Auto Adjust Bandwidth Control | |
| - Visual User Friendly UI | |
| - Visual Network Usage Statistics | |
| - Optimized Default Setting for Game, Browser, and Streaming Modes | |
| - User Customized Priority Control | |
| Wireless LAN | - 802.11ax Wi-Fi 6E Module |
| - Supports IEEE 802.11a/b/g/n/ac/ax | |
| - Supports Dual-Band 2x2 with extended 6GHz band support* | |
| - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology | |
| - Supports Bluetooth 5.3 + High speed class II | |
| - Supports MU-MIMO | |
| *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. | |
| A 6GHz compatible router is required for 6E functionality. | |
| Slots | CPU: |
| - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode | |
| * Chipset: | |
| - 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode* | |
| - 1 x PCIe 4.0 x1 Slot (PCIE2)* | |
| - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) | |
| * Supports NVMe SSD as boot disks | |
| - Supports AMD CrossFire™ | |
| Storage | CPU: |
| - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| Chipset: | |
| - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* | |
| - 4 x SATA3 6.0 Gb/s Connectors | |
| *Supports Intel® Volume Management Device (VMD) | |
| Supports NVMe SSD as boot disks | |
| RAID | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) |
| - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) | |
| - 6 x USB 2.0 (2 Rear, 4 Front) | |
| * All USB ports support ESD Protection | |
| Connector | - 1 x SPI TPM Header |
| - 1 x Chassis Intrusion and Speaker Header | |
| - 1 x RGB LED Header* | |
| - 3 x Addressable LED Headers** | |
| - 1 x CPU Fan Connector (4-pin)*** | |
| - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** | |
| - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** | |
| - 1 x 24 pin ATX Power Connector | |
| - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | |
| - 1 x Front Panel Audio Connector | |
| - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) | |
| - 1 x Front Panel Type C USB 3.2 Gen1 Header | |
| *Supports in total up to 12V/3A, 36W LED Strip | |
| **Support in total up to 5V/3A, 15W LED Strip | |
| ***CPU_FAN1 supports the fan power up to 1A (12W). | |
| ****CPU_FAN2/WP supports the fan power up to 2A (24W). | |
| *****CHA_FAN1~4/WP support the fan power up to 2A (24W). | |
| CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use. | |

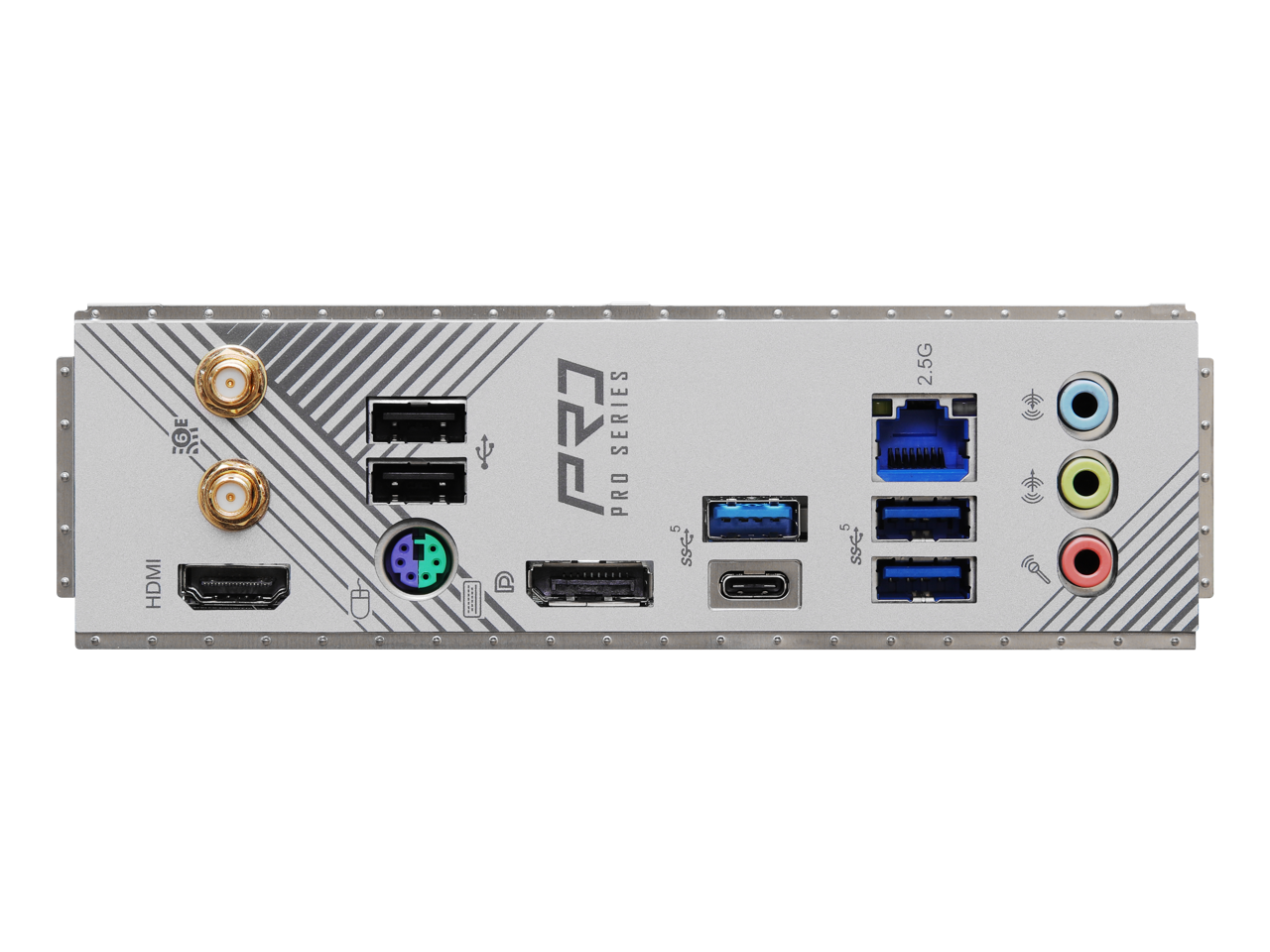

| Rear Panel I/O | - 2 x Antenna Ports |
| - 1 x PS/2 Mouse/Keyboard Port | |
| - 1 x HDMI Port | |
| - 1 x DisplayPort 1.4 | |
| - 1 x USB 3.2 Gen1 Type-C Port | |
| - 3 x USB 3.2 Gen1 Type-A Ports | |
| - 2 x USB 2.0 Ports | |
| - 1 x RJ-45 LAN Port | |
| - HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software |
| - ASRock Motherboard Utility (A-Tuning) | |
| - ASRock Dragon 2.5G LAN Software | |
| - ASRock Polychrome SYNC* | |
| UEFI | |
| - ASRock EZ Mode | |
| - ASRock Full HD UEFI | |
| - ASRock My Favorites in UEFI | |
| - ASRock Auto Driver Installer | |
| - ASRock Instant Flash | |
| - ASRock Easy RAID Installer | |
| *These utilities can be downloaded from ASRock Live Update & APP Shop. | |
| Accessories | - 1 x User Manual |
| - 2 x SATA Data Cables | |
| - 2 x ASRock WiFi 2.4/5/6 GHz Antennas | |
| - 2 x Screws for M.2 Sockets | |
| - 1 x Standoff for M.2 Socket | |
| Form Factor | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| *Windows® 10 only supports version 21H2 or later | |
| Certifications | - FCC, CE |
| - ErP/EuP ready (ErP/EuP ready power supply is required) |
