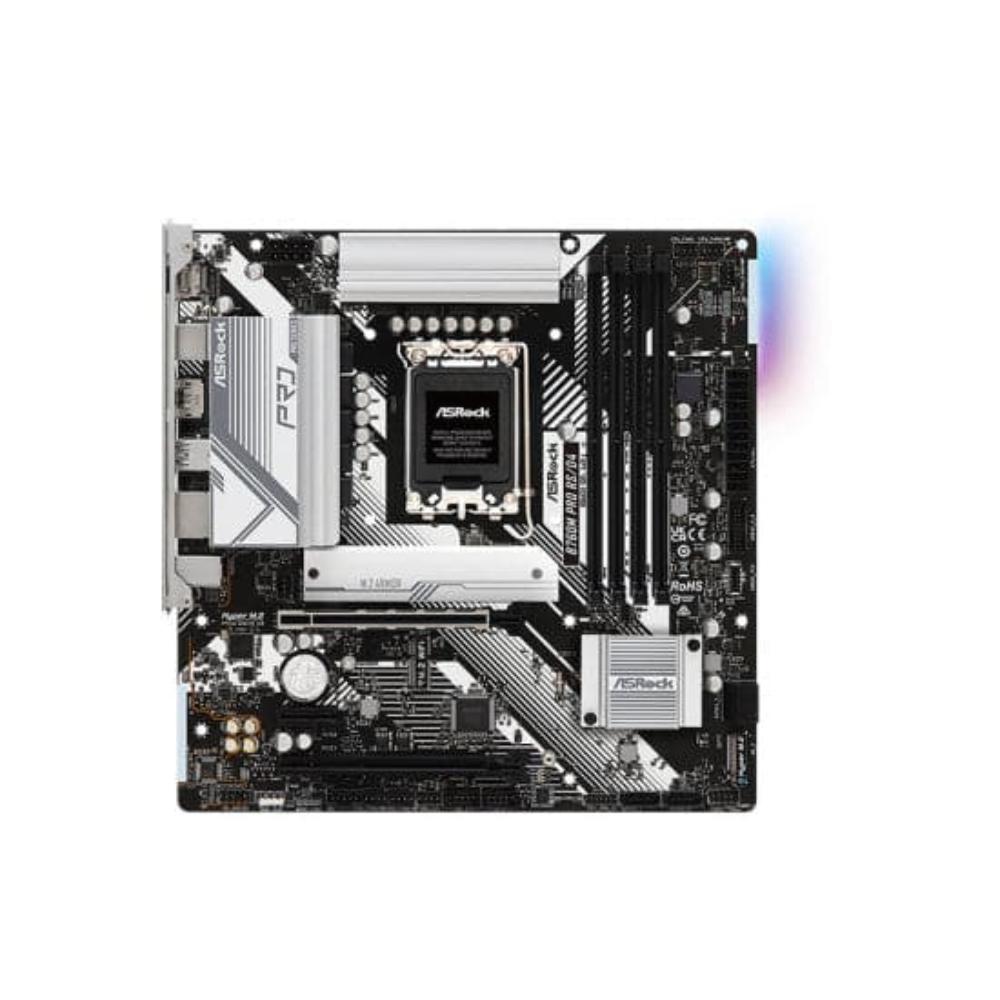

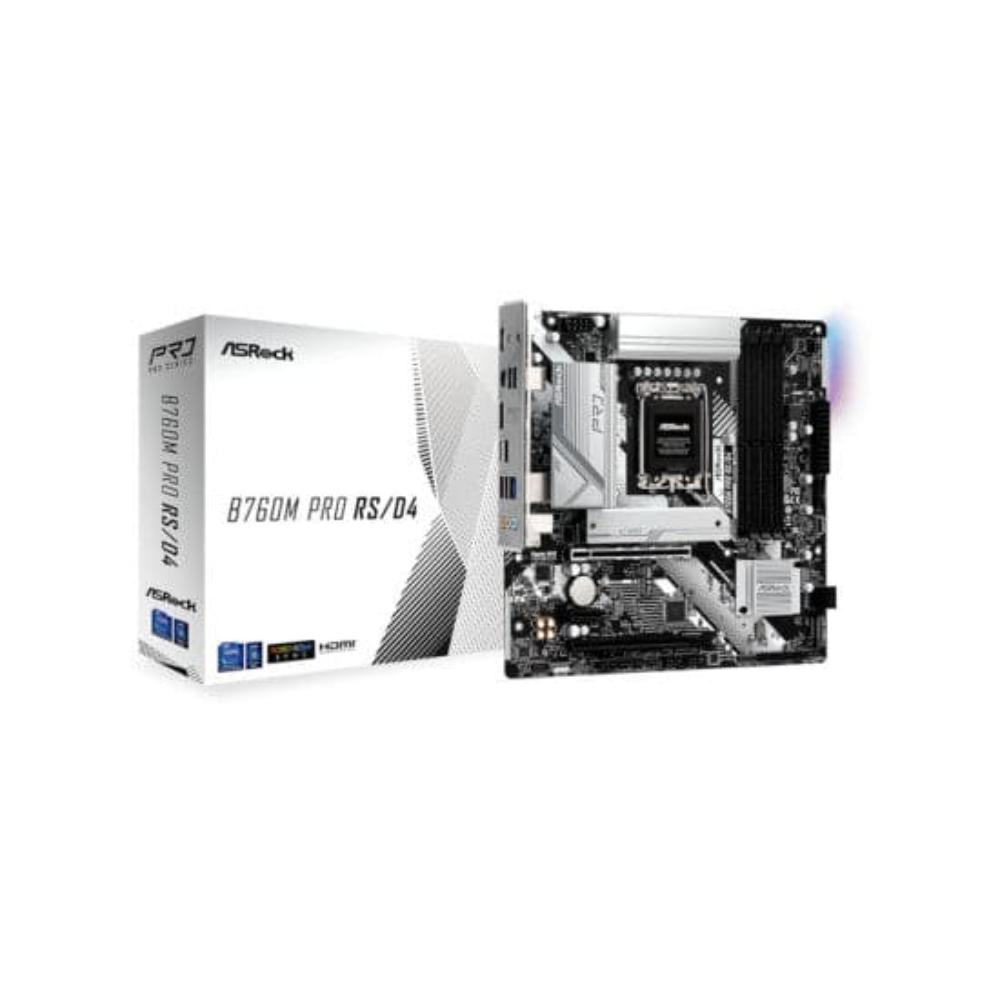

Features of ASROCK B760M Pro RS/D4 Intel Motherboard

1. ASROCK B760M Pro RS/D4 Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
2. 7+1+1 Power Phase, Dr.MOS for VCore+GT
3. Supports DDR4 5333MHz (OC)
4. 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi

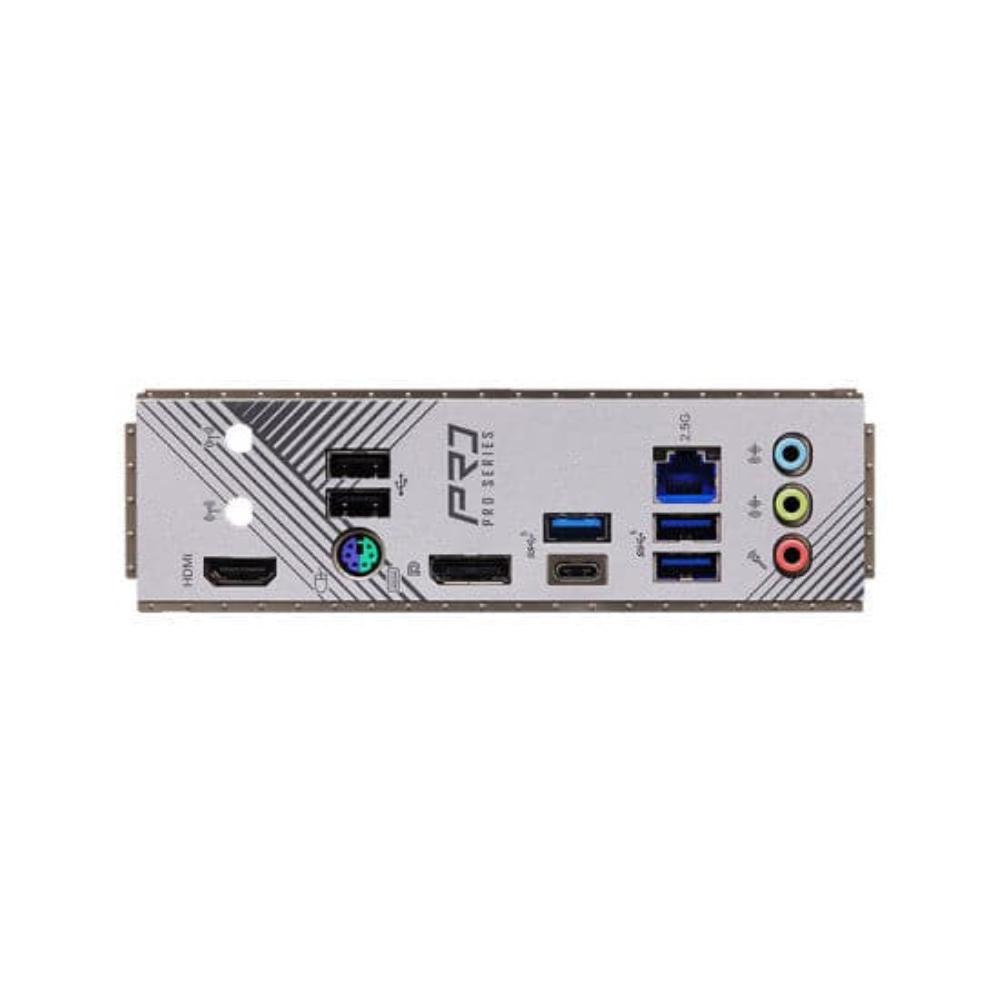

5. Graphics Output Options: HDMI, DisplayPort
6. Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
7. 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
8. 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
9. 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
10. 6 USB 2.0 (2 Rear, 4 Front)
11. Dragon 2.5G LAN
12. Supports ASRock Auto Driver Installer

Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Specifications of ASROCK B760M Pro RS/D4 Intel Motherboard
